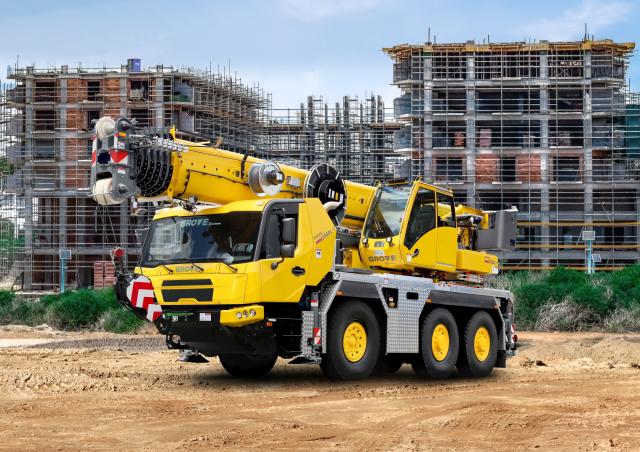

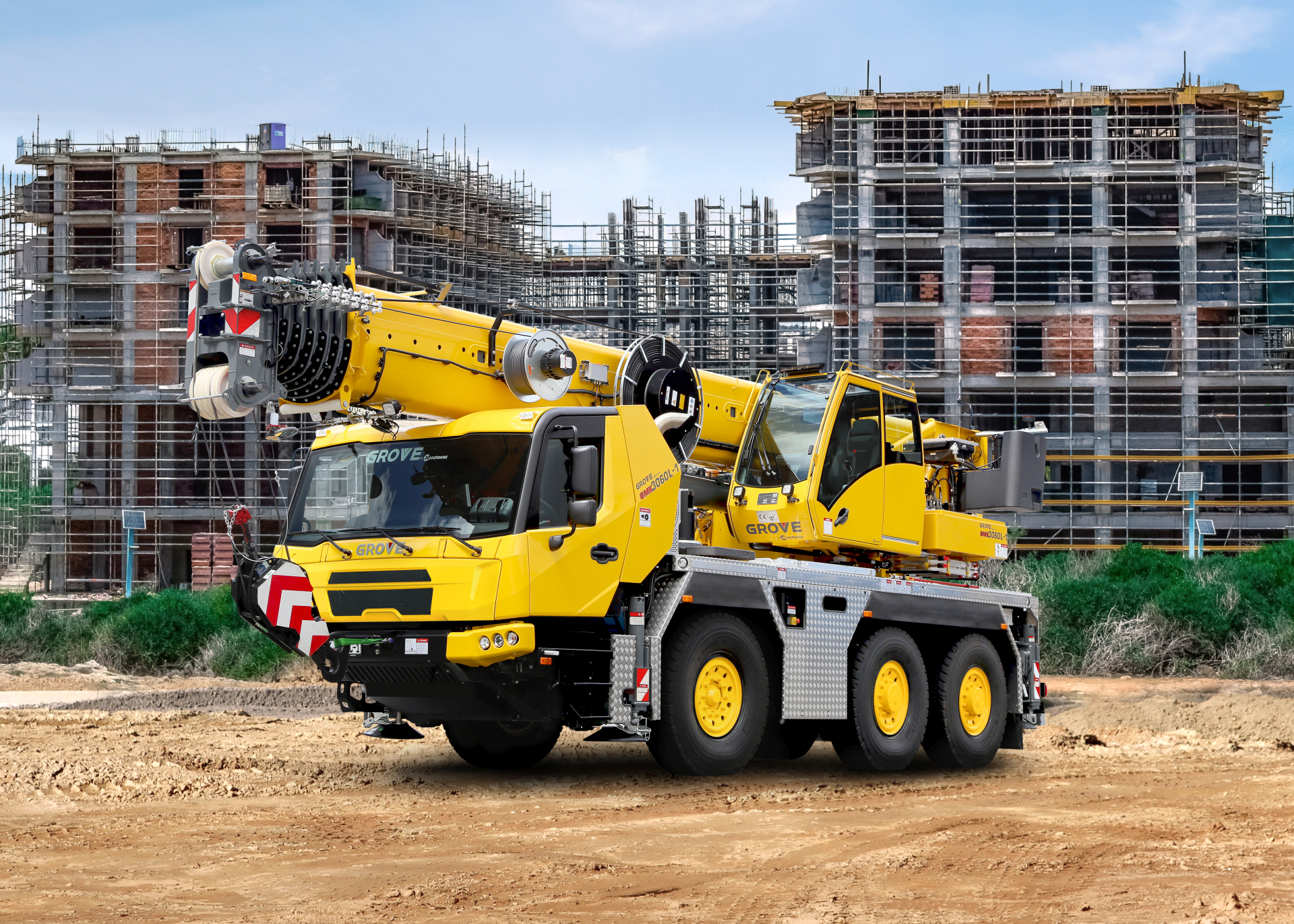

Grove GMK3060L-1 crane - load chart, specs (2021 - 2024)

Rate this machine now!

max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standar... Read more

max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standard boom: 9.6m

See load chart, specs, capacity, size and other technical data for Grove GMK3060L-1 crane manufactured between 2021 - 2024. See information, like: max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standard boom: 9.6m and more.

Technical specs - GMK3060L-1 Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • max. carrying capacity 60 t
  • at reach 3 m
  • Carrying capacity 0.6 t
  • at max. reach 48 m
  • max. standard boom 48 m
  • Min. standard boom 9.6 m
  • Max. luffing jib 15 m
  • max. hook height 65 m
  • Load Torque 165 kNm
  • Undercarriage engine 254 kW
  • Travel speed 80 km/h
  • Number of axles 3
  • Wheels/Drive/Steering 6/6/6
  • axle load 12 t
  • Standard tyres 385/95 R25
  • Outriggers spacing length 6.825 m
  • Outriggers spacing width 6.2 m
  • Model series GMK
  • Engine manuf. Cummins
  • Engine type QSL9-C350
  • Engine power 254 kW
  • Revolutions at max torque 1400 rpm
  • Max. torque 1526 Nm
  • No. of cylinders 6
  • Emission level Euromot 5 / EPA / CARB Tier 3

More technical details, like: superstructure engine, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

  • 2nd winch
  • max. luffing jib
  • max. fold hydr.
  • Erection tip
  • Foucault current brake
  • Add. ballast
