Lectura specs Construction machinery Wheeled Asphalt Pavers Wheeled Asphalt Pavers Terex Terex CR552RX specifications

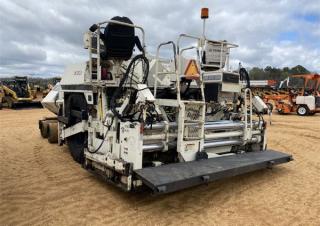

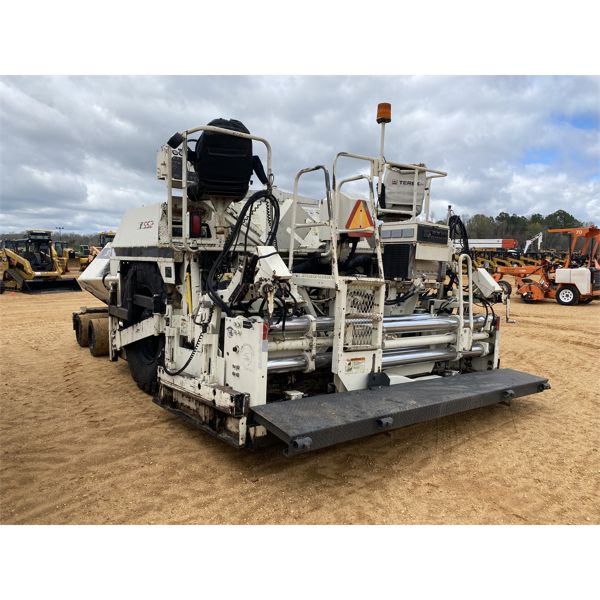

Terex CR552RX Specifications & Technical Data (2008-2023)

Rate this machine now!

Weight: 19.037t – Transport length: 6.35m – Transport width: 3.05m – Transport height: 2.743m – Standard width: 3.15m – Max. width: 9.1m

Technical specs - CR552RX Terex


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 19.037 t
  • Transport length 6.35 m
  • Transport width 3.05 m
  • Transport height 2.743 m
  • Standard width 3.15 m
  • Max. width 9.1 m
  • Drive DE
  • Wheels 24.5x32 12PLY
  • Bunker capacity 7.56 m³
  • Operating speed 88 m/min
  • Type of screed V
  • Engine manuf. Cummins
  • Engine type QSB6.7
  • Engine power 194 kW
  • Revolutions at max torque 2200 rpm

More technical details, like: hydr. extension from, hydr. extension up to, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

  • Diesel particulate filter
  • Bilateral levelling automatic
  • Vibration
  • High compaction
  • Spray unit
  • Tamper
