JCB TM320 Specifications & Technical Data (2020-2025)

Name: JCB TM320 Wheel Loaders
Brand: JCB

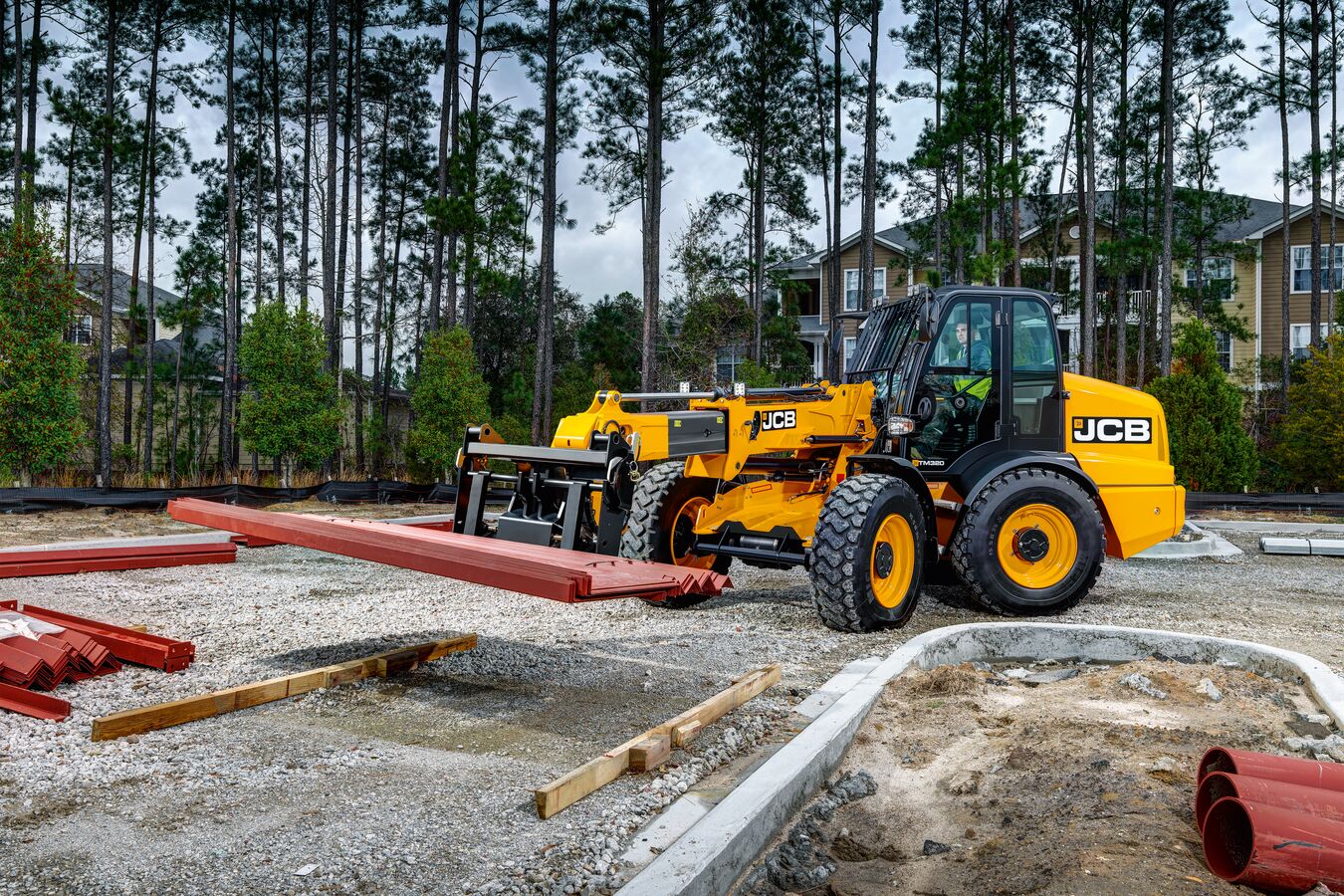

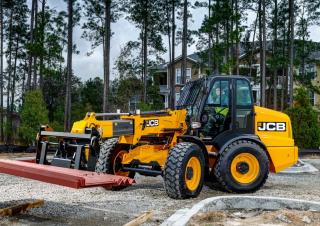

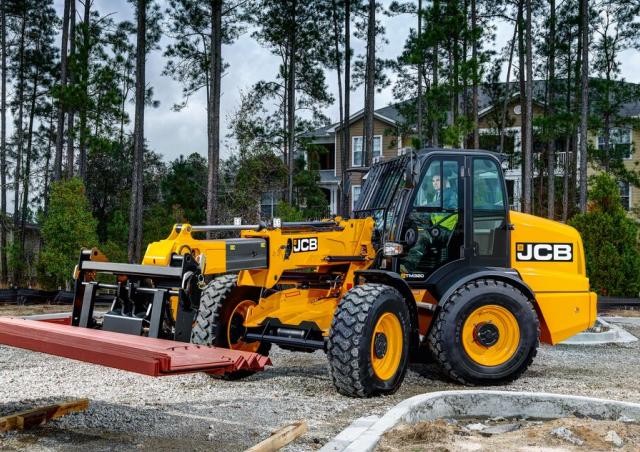

The JCB TM320 is a wheel loader manufactured by JCB since 2020. It has a weight of 8.2 tons and a transport length of 6.322 meters…

The JCB TM320 is a wheel loader manufactured by JCB since 2020. It has a weight of 8.2 tons and a transport length of 6.322 meters. The bucket capacity is 1 cubic meter with a width of 1.95 meters. The maximum discharge height is 4.511 meters and it has a travel speed of 20 km/h. The transport width is 2.35 meters and the transport height is 2.703 meters. The turning radius outside is 4.633 meters. It is equipped with a diesel particulate filter and has a telescopic feature.

TM320

Years of manufacture: 2020—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - TM320 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.2 t

Standard tyres: XMCL 460/70 R24

Bucket width: 1.95 m

Bucket capacity: 1 m³

Steering mode: KL

Transport length: 6.322 m

Transport width: 2.35 m

Transport height: 2.703 m

Travel speed: 20 km/h

Max. discharge height: 4.511 m

Turning radius outside: 4.633 m

Model series: TM

Engine manuf.: JCB

Engine type: EcoMax

Engine power: 97 kW

Displacement: 4.8 l

No. of cylinders: 4

Cylinder bore x stroke: 106x139 mm

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No
