    Lectura specs Construction machinery Wheel Loaders Wheel Loaders JCB JCB TM220  specifications

    JCB TM220  Specifications & Technical Data (2019-2021)

    Rate this machine now!

    Weight: 6.49t – Standard tyres: 405/70 R20 SPT9 – Bucket width: 2m – Bucket capacity: 0.87m³ – Steering mode: KL – Transport length: 6m

    Technical specs - TM220  JCB

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 6.49 t
    Standard tyres 405/70 R20 SPT9
    Bucket width 2 m
    Bucket capacity 0.87 m³
    Steering mode KL
    Transport length 6 m
    Transport width 1.9 m
    Transport height 2.63 m
    Travel speed 20 km/h
    Max. discharge height 3.64 m
    Turning radius outside 4.75 m
    Lifting force 48.9 kN
    Engine manuf. Kohler
    Engine type KDI2054TCR
    Engine power 55.4 kW
    Engine power 74 HP
    Displacement 2.482 l
    Revolutions at max torque 1500 rpm
    Max. torque 300 Nm
    No. of cylinders 4
    Emission level V
    Bucket capacity min. ###
    Bucket capacity max. ###
    Dimension lxwxh ###
    Cylinder bore x stroke ###
    Weight ###

    Basic model with ROPS cabin, std. shovel and teeth

    TM220  JCB - Special equipment

    • Diesel particulate filter
    • Pivoting loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Download data sheets - JCB TM220


    What do you think about this machine?

    Sell your JCB TM220  fast and easy

    Receive the best purchase offer² within 48 hours¹ from the network of with over 1,000 international dealers.

    Compare JCB TM220  with other models

    Press 1 image

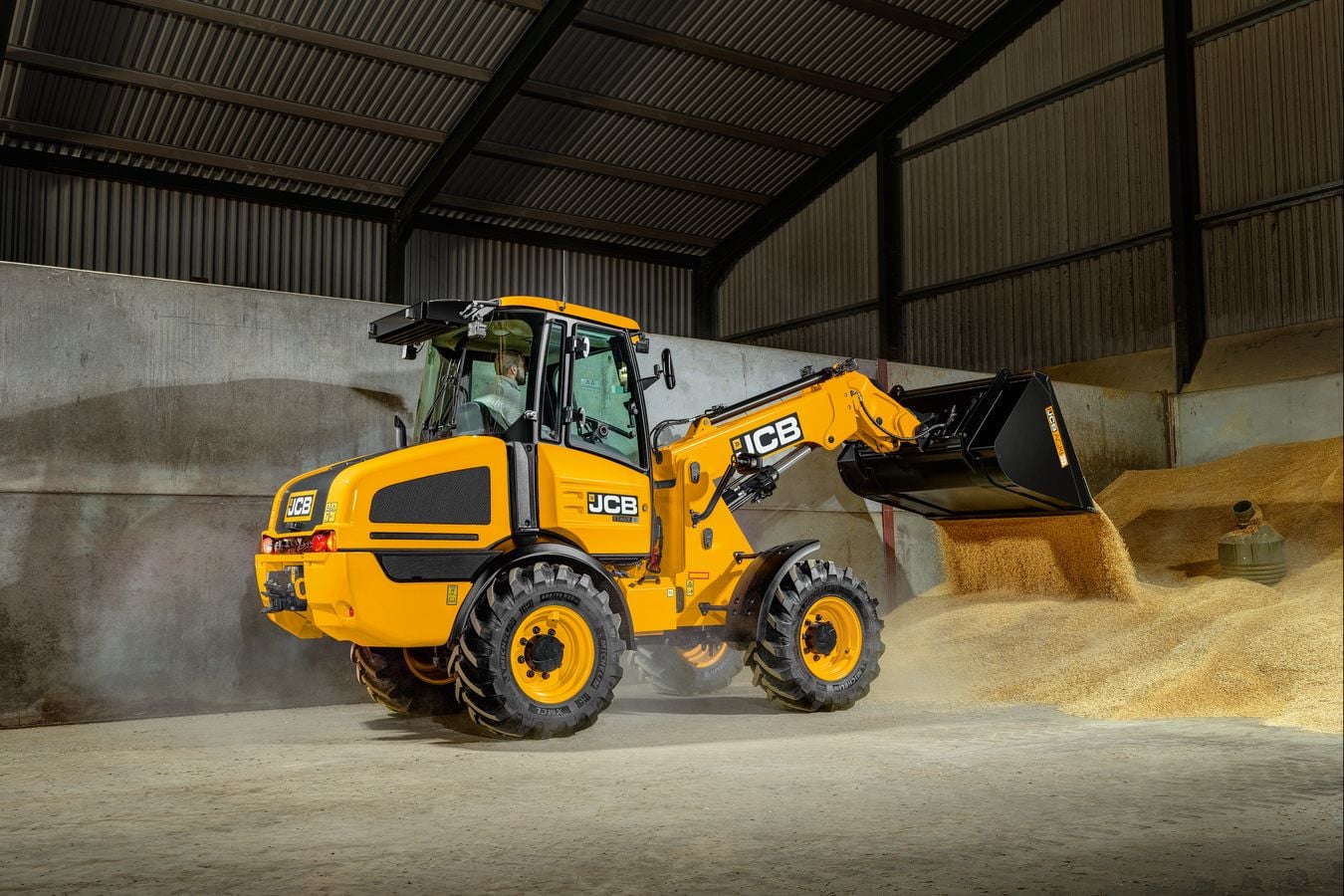

    JCB TM220
