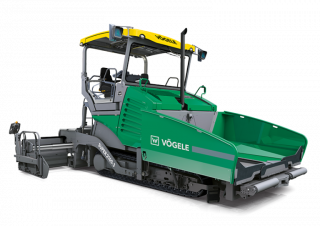

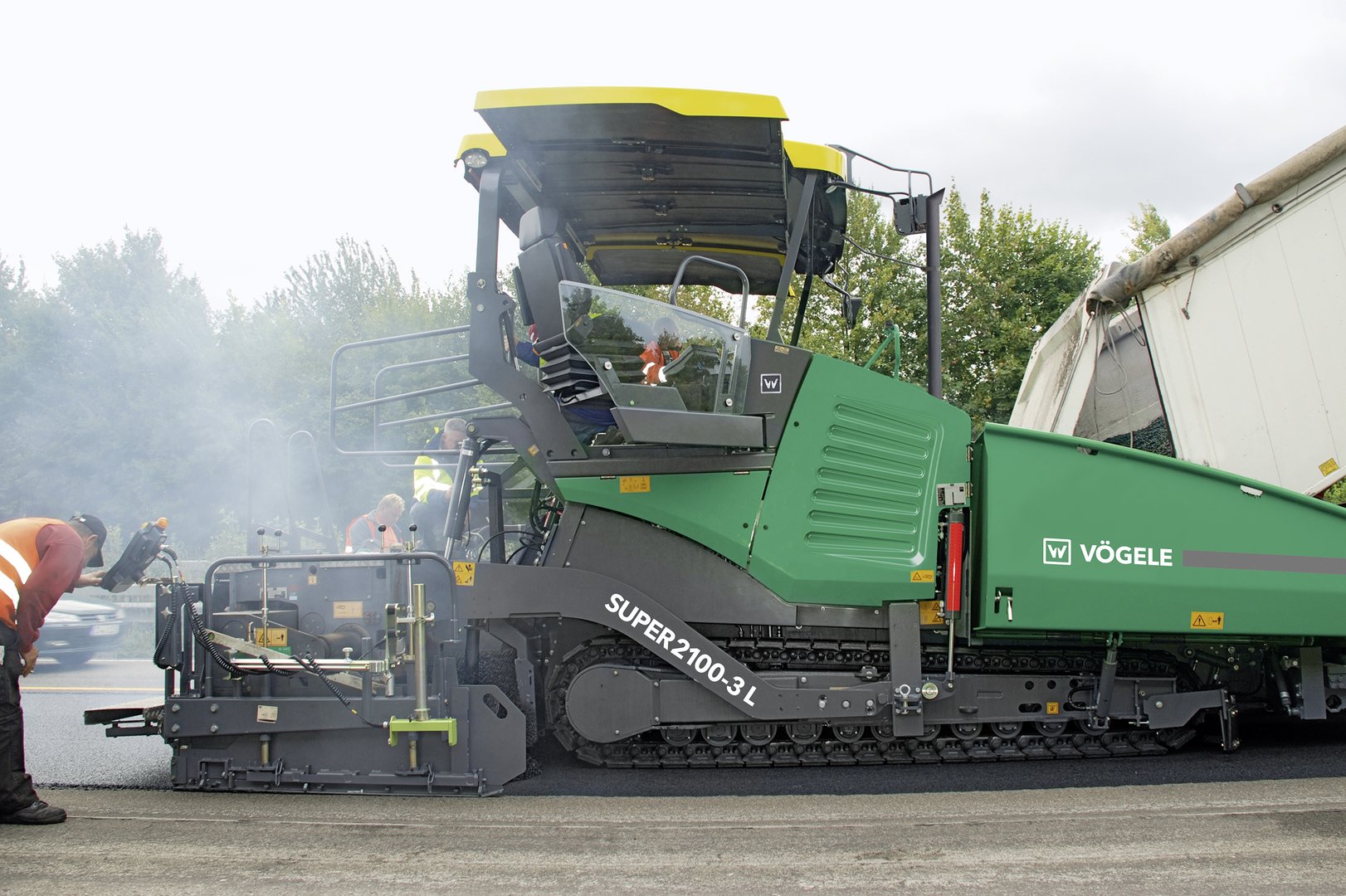

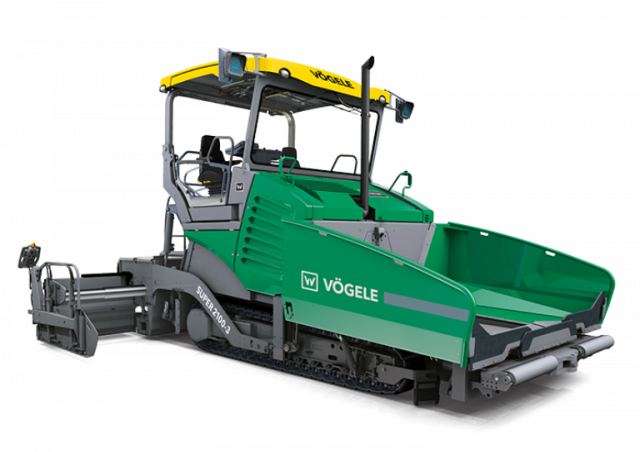

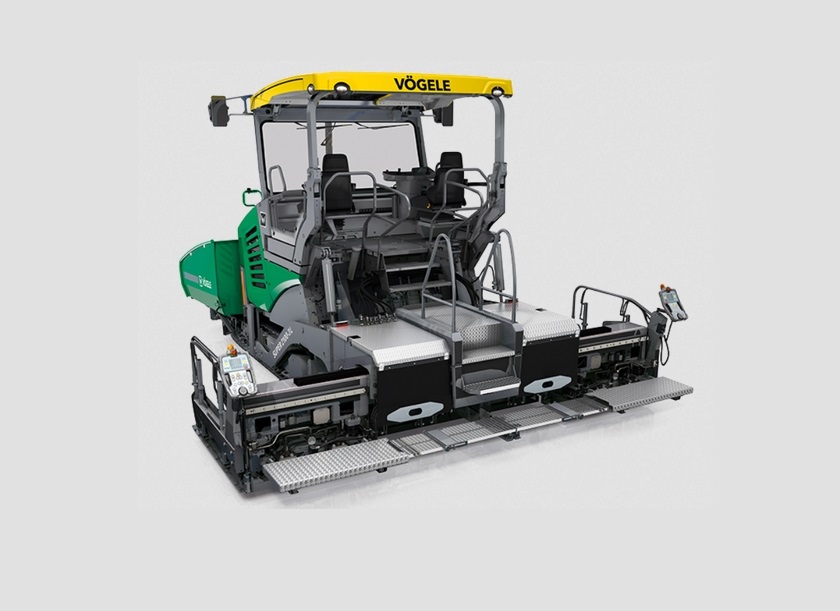

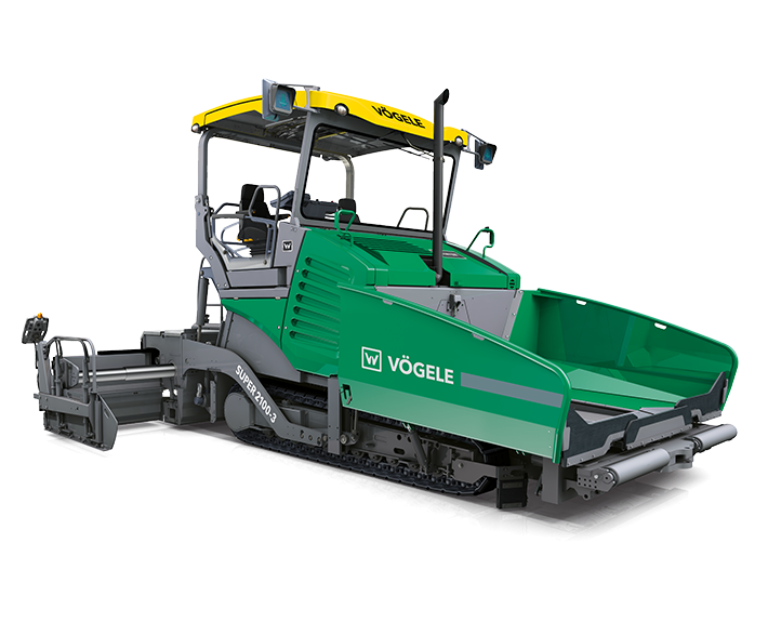

Vögele SUPER 2100-3 L Specifications & Technical Data (2021-2024)

Rate this machine now!

Transport length: 6.85m – Transport width: 3m – Transport height: 3.1m – Standard width: 3.265m – Max. width: 13m – Drive: DM

Technical specs - SUPER 2100-3 L Vögele

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Transport length 6.85 m
  • Transport width 3 m
  • Transport height 3.1 m
  • Standard width 3.265 m
  • Max. width 13 m
  • Drive DM
  • Operating speed 25 m/min
  • Type of screed V/T
  • Model series Highway Class
  • Engine manuf. Cummins
  • Engine type QSB6.7-C240
  • Engine power 179 kW
  • Displacement 6.7 l
  • No. of cylinders 6
  • Emission level Stage III (MEP). EC Stage IIIA. US Tier 3

More technical details, like: weight, average fuel consumption, fuel consumption range (min - max), hydr. extension from, hydr. extension up to, soil pressure, bunker capacity, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

  • Diesel particulate filter
  • Bilateral levelling automatic
  • Vibration
  • High compaction
  • Spray unit
  • Tamper
