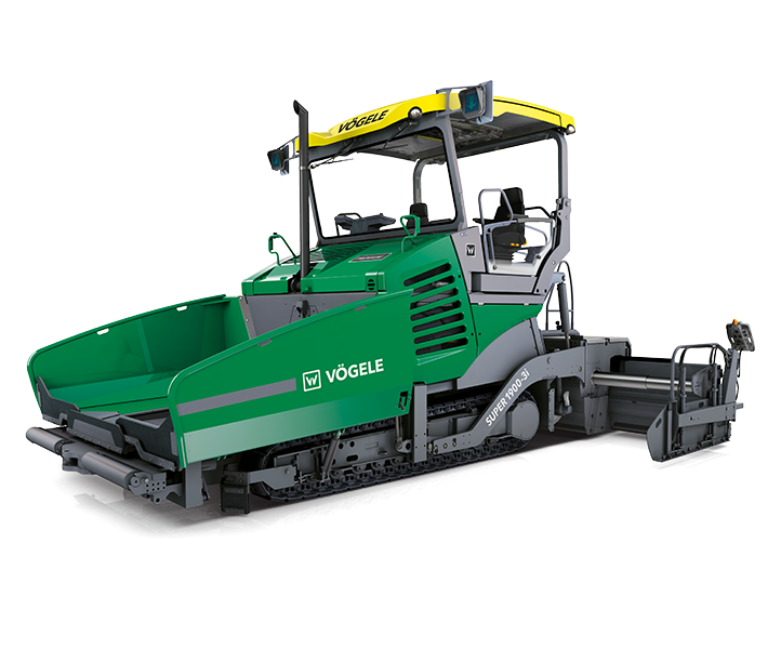

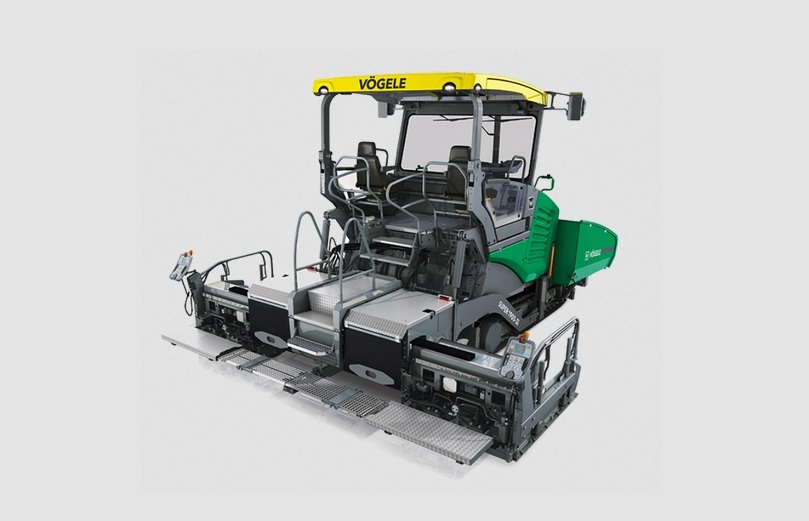

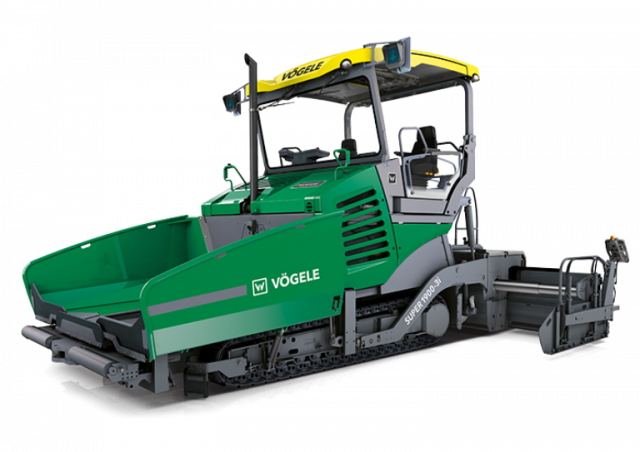

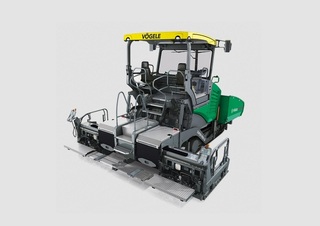

Technical specs - Super 1900-3i Vögele
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Transport length 6.5 m
- Transport width 3 m
- Transport height 3.1 m
- Standard width 3.265 m
- Max. width 11 m
- Drive DM
- Operating speed 25 m/min
- Type of screed V/T
- Model series Highway Class
- Engine manuf. Cummins
- Engine type B6.7-C195
- Engine power 145 kW
- Displacement 6.7 l
- No. of cylinders 6
- Emission level EU Stage V, US EPA Tier 4f
More technical details, like: weight, average fuel consumption, fuel consumption range (min - max), hydr. extension from, hydr. extension up to, soil pressure, bunker capacity, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention
Special equipment
- Diesel particulate filter
- Bilateral levelling automatic
- Vibration
- High compaction
- Spray unit
- Tamper
Carbon footprint calculator for Tracked Asphalt Pavers
See the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Vögele Super 1900-3i or alternative Tracked Asphalt Pavers.
The carbon emission calculation can be carried out based on different transportation scenarios or other variables.
or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.
service provided by
Machine inspection
Ask for inspection of your Vögele Super 1900-3i from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Vögele Super 1900-3i with similar Tracked Asphalt Pavers
.png)

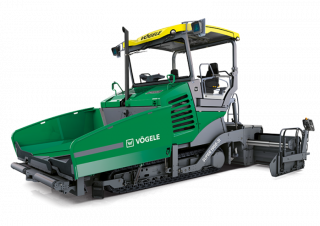

Vögele Super 1900-3i
