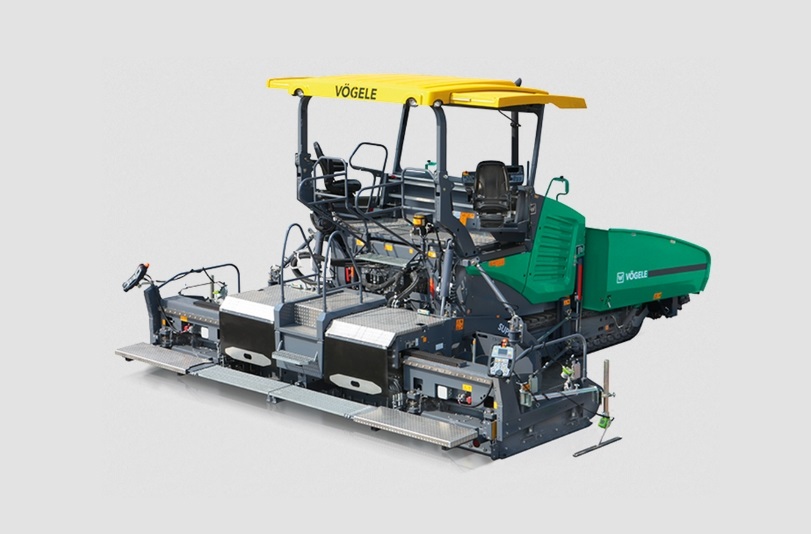

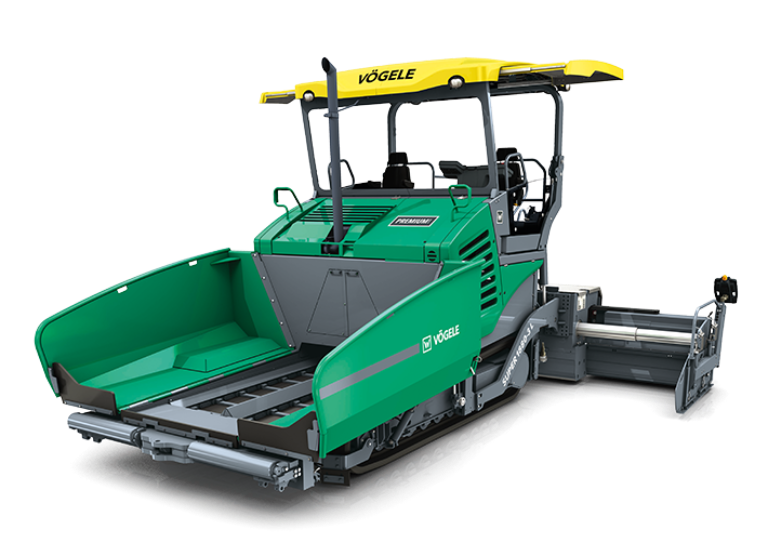

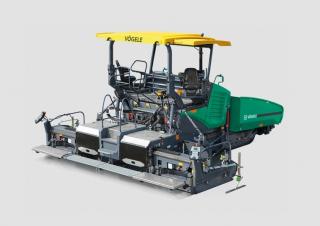

Technical specs - SUPER 1880-3 L Vögele
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Transport length 6.57 m
- Transport width 3 m
- Transport height 3.102 m
- Standard width 3.261 m
- Max. width 9.5 m
- Drive DM
- Operating speed 24 m/min
- Type of screed V/T
- Engine manuf. Cummins
- Engine type QSB6.7-C215
- Engine power 158 kW
- Displacement 6.7 l
- No. of cylinders 6
- Emission level Stage III (MEP)
More technical details, like: weight, average fuel consumption, fuel consumption range (min - max), hydr. extension from, hydr. extension up to, soil pressure, bunker capacity, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention
Special equipment
- Diesel particulate filter
- Bilateral levelling automatic
- Vibration
- High compaction
- Spray unit
- Tamper
