    Lectura specs Construction machinery Tracked Asphalt Pavers Tracked Asphalt Pavers Vögele Vögele SUPER 1880-3 L specifications

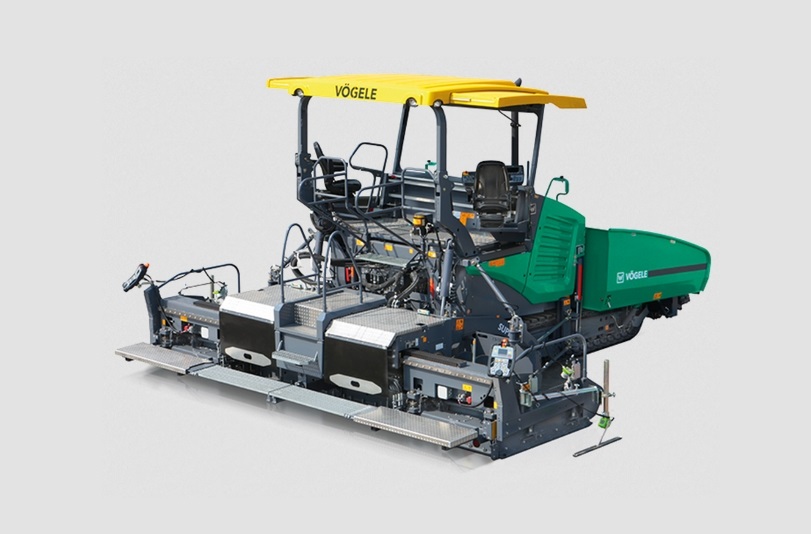

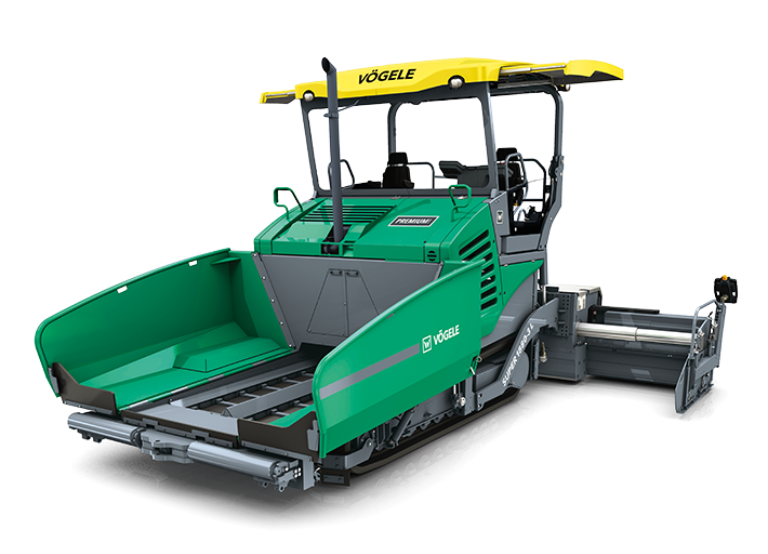

    Vögele SUPER 1880-3 L Specifications & Technical Data (2021-2021)

    Rate this machine now!

    Transport length: 6.57m – Transport width: 3m – Transport height: 3.102m – Standard width: 3.261m – Max. width: 9.5m – Drive: DM

    Technical specs - SUPER 1880-3 L Vögele

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Transport length 6.57 m
    • Transport width 3 m
    • Transport height 3.102 m
    • Standard width 3.261 m
    • Max. width 9.5 m
    • Drive DM
    • Operating speed 24 m/min
    • Type of screed V/T
    • Engine manuf. Cummins
    • Engine type QSB6.7-C215
    • Engine power 158 kW
    • Displacement 6.7 l
    • No. of cylinders 6
    • Emission level Stage III (MEP)
    • Weight ###
    • Hydr. extension from ###
    • Hydr. extension up to ###
    • Soil pressure ###
    • Bunker capacity ###
    • Dimension lxwxh ###
    • Revolutions at max torque ###
    • Max. torque ###
    • Cylinder bore x stroke ###

    Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Vibration
    • High compaction
    • Spray unit
    • Tamper
