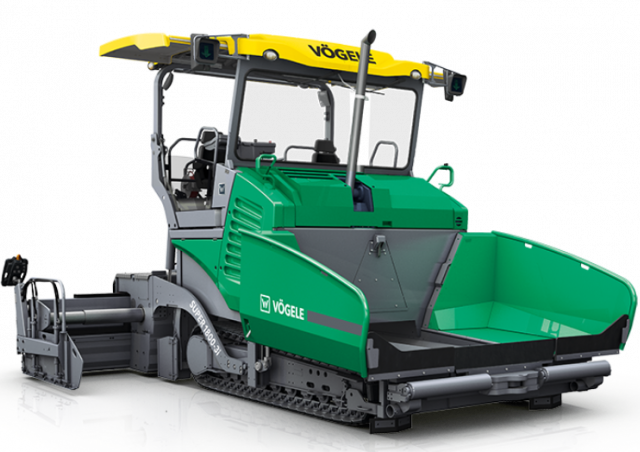

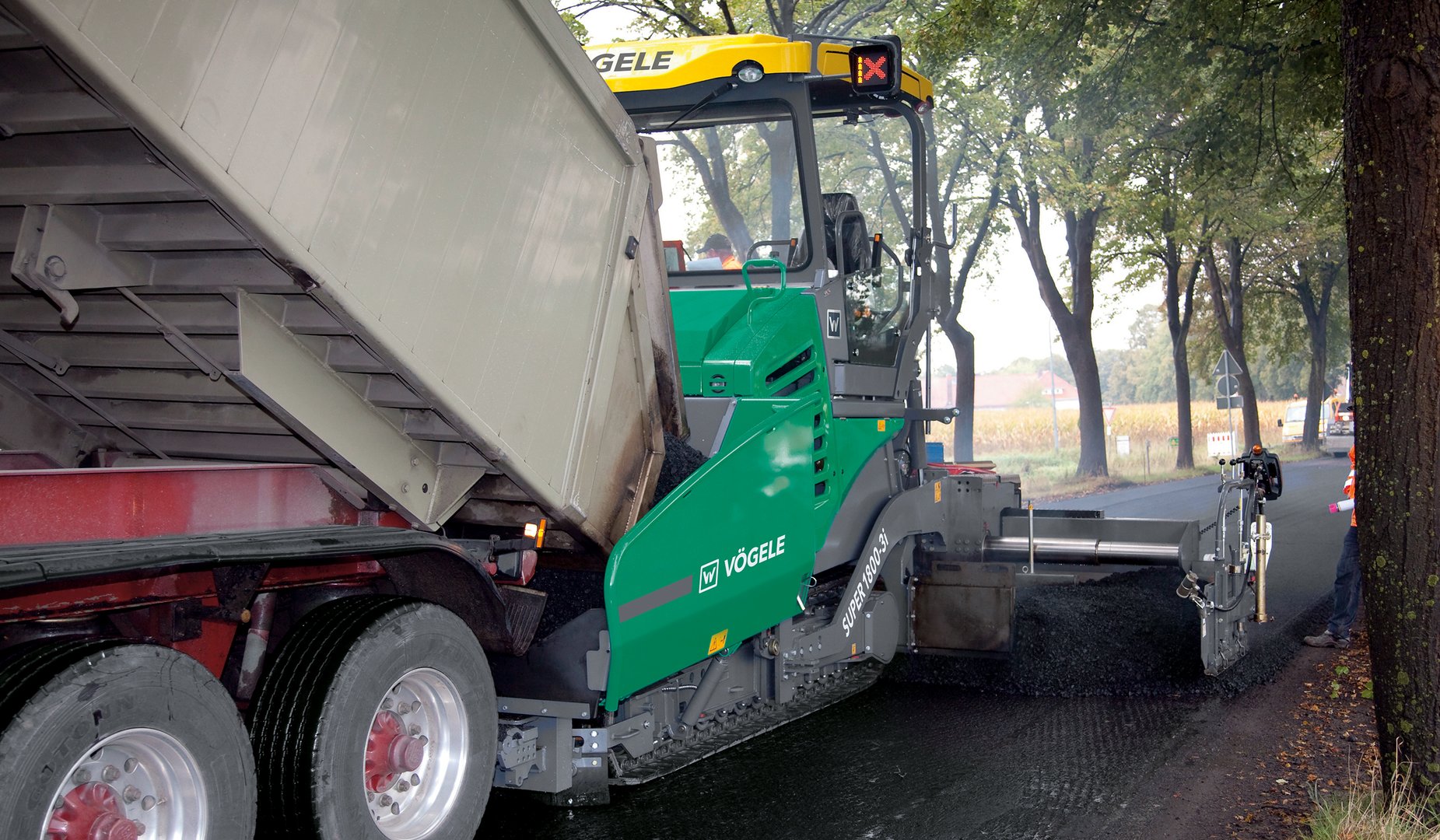

Vögele Super 1800-3i Specifications & Technical Data (2021-2024)

Rate this machine now!

Transport length: 6.1m – Transport width: 3m – Transport height: 3.1m – Standard width: 3.265m – Max. width: 10m – Drive: DM

Technical specs - Super 1800-3i Vögele

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Transport length 6.1 m
  • Transport width 3 m
  • Transport height 3.1 m
  • Standard width 3.265 m
  • Max. width 10 m
  • Drive DM
  • Operating speed 24 m/min
  • Type of screed V/T
  • Model series Universal Class
  • Engine manuf. Cummins
  • Engine type B6.7-C173
  • Engine power 129 kW
  • Displacement 6.7 l
  • No. of cylinders 6
  • Emission level EU Stage V. US EPA Tier 4f

More technical details, like: weight, average fuel consumption, fuel consumption range (min - max), hydr. extension from, hydr. extension up to, soil pressure, bunker capacity, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

  • Diesel particulate filter
  • Bilateral levelling automatic
  • Vibration
  • High compaction
  • Spray unit
  • Tamper

Carbon footprint calculator for Tracked Asphalt Pavers

See the ERA equipment CO2 Calculator to estimate the carbon footprint per hour of use of the Vögele Super 1800-3i or alternative Tracked Asphalt Pavers.

The footprint calculation can be carried out for different transportation scenarios or other factors.

or go to the ERA Equipment CO2 Calculator to find out how to reduce your carbon footprint.

service provided by ERA

Machine inspection

Ask for inspection of your Vögele Super 1800-3i from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Mevas teaser
Provided by: Mevas

Buy & Rent

Compare Vögele Super 1800-3i with similar Tracked Asphalt Pavers

Press 1 image

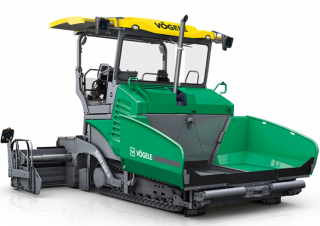

Vögele Super 1800-3i
