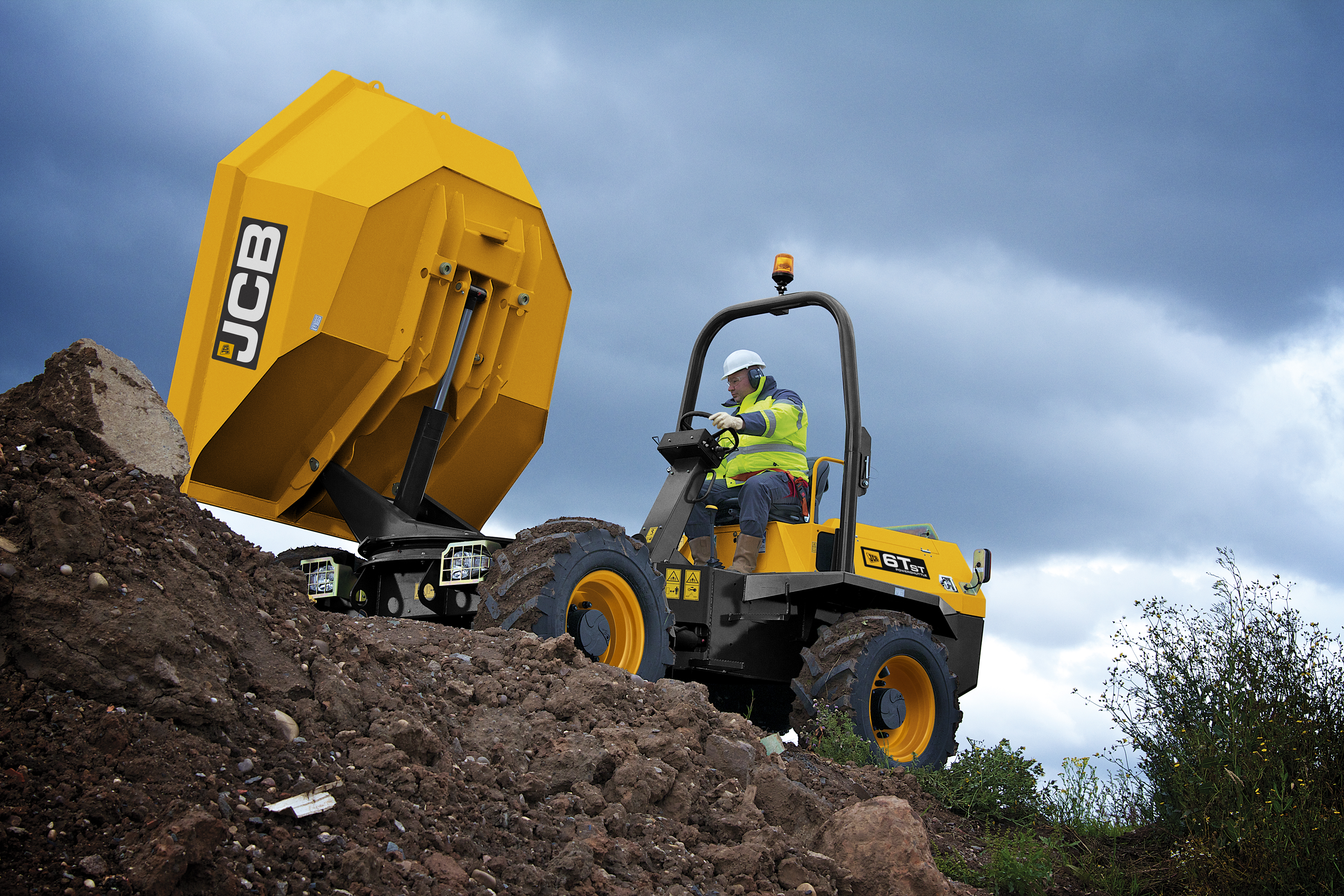

JCB 6T-1 ST Specifications & Technical Data (2017-2023)

Rate this machine now!

Weight: 5.13t – Standard tyres: 405/70-20 14PR – Net load: 6t – Dump capacity: 6m³ – Transport length: 5.047m – Transport width: 2.255m

Technical specs - 6T-1 ST JCB


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 5.13 t
  • Standard tyres 405/70-20 14PR
  • Net load 6 t
  • Dump capacity 6 m³
  • Transport length 5.047 m
  • Transport width 2.255 m
  • Transport height 3.354 m
  • Travel speed 25.6 km/h
  • Loading height 2.028 m
  • Turning radius outside 5.777 m
  • Engine manuf. JCB
  • Engine type EuroMax
  • Engine power 55 kW
  • Displacement 4.4 l
  • Max. torque 400 Nm
  • No. of cylinders 4
  • Emission level Euro III B / Tier 4 f

More technical details, like: average fuel consumption, fuel consumption range (min - max), dumper type, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

  • Diesel particulate filter
  • Heated dump body
  • All-wheel drive
  • Track
  • Aircondition
