    Lectura specs Construction machinery Crawler Excavators Crawler Excavators Volvo Volvo EC380ENL Straight boom specifications

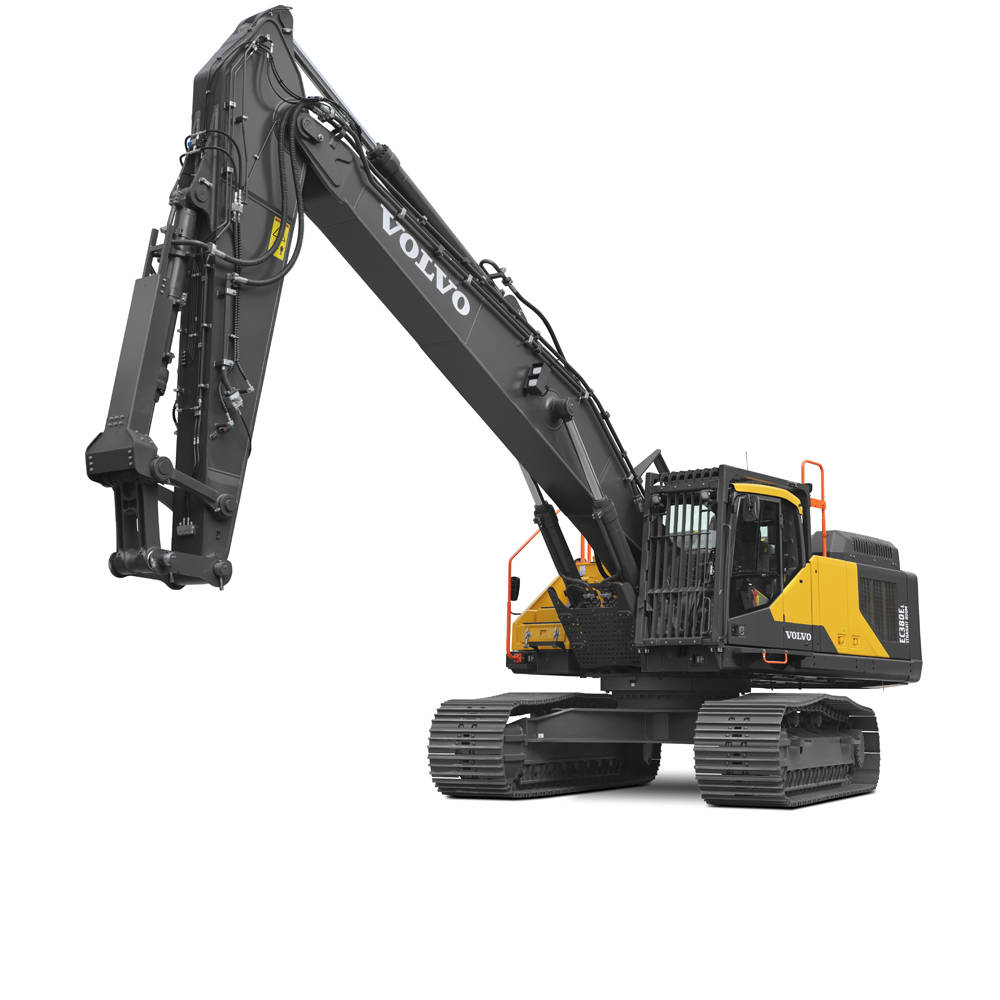

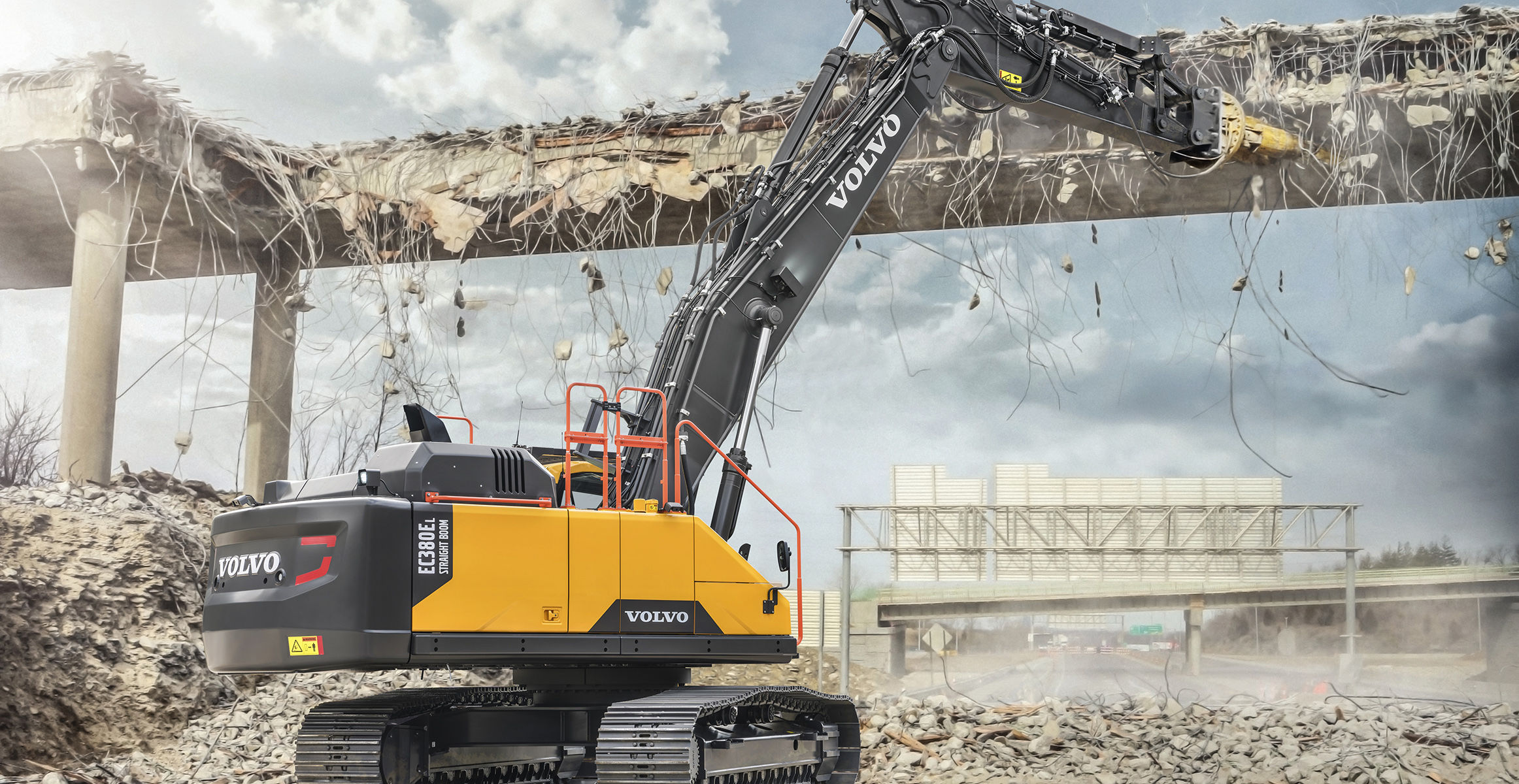

    Volvo EC380ENL Straight boom excavator specs (2021 - 2022)

    Rate this machine now!

    Weight: 44.004t – Transport length: 11.94m – Transport width: 2.99m – Transport height: 3.33m – Track width: 600mm – Max. Reach ho... Read more

    Weight: 44.004t – Transport length: 11.94m – Transport width: 2.99m – Transport height: 3.33m – Track width: 600mm – Max. Reach horizontal: 11.89m

    Check out detailed specifications, information and technical data for Volvo EC380ENL Straight boom excavator manufactured between 2021 - 2022. Get more in-depth insight with Volvo EC380ENL Straight boom digger specifications. See information, like: Weight: 44.004t – Transport length: 11.94m – Transport width: 2.99m – Transport height: 3.33m – Track width: 600mm – Max. Reach horizontal: 11.89m and more.

    Technical specs - EC380ENL Straight boom Volvo


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 44.004 t
    • Transport length 11.94 m
    • Transport width 2.99 m
    • Transport height 3.33 m
    • Track width 600 mm
    • Max. Reach horizontal 11.89 m
    • Dredging depth 6.14 m
    • Tear-out force 161.9 kN
    • Engine manuf. Volvo
    • Engine type D13J
    • Engine power 229 kW
    • Displacement 12.8 l
    • Revolutions at max torque 1275 rpm
    • Max. torque 1692 Nm
    • No. of cylinders 6
    • Cylinder bore x stroke 131x158 mm
    • Emission level Stage V

    More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    Special equipment

    • Diesel particulate filter
    • Track adjustment
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
