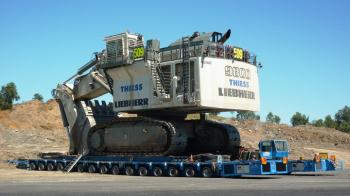

Liebherr R9800 excavator specs (2011 - 2024)

Rate this machine now!

The Liebherr R9800 is a crawler excavator manufactured since 2011. It weighs 810 tons and has a transport length of 14.023 meters,... Read more

The Liebherr R9800 is a crawler excavator manufactured since 2011. It weighs 810 tons and has a transport length of 14.023 meters, a transport width of 8.88 meters, and a transport height of 10.338 meters. It has a tear-out force of 1760 kN and a dredging depth of 9 meters. The maximum reach horizontal is 20.1 meters, and it has a bucket capacity of 42 U/min and a bucket width of 4.8 Nm. The track width is 1630 HP.

Technical specs - R9800 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 810 t
  • Transport length 14.023 m
  • Transport width 8.88 m
  • Transport height 10.338 m
  • Bucket capacity 42 m³
  • Track width 1630 mm
  • Max. Reach horizontal 20.1 m
  • Dredging depth 9 m
  • Tear-out force 1760 kN
  • Bucket width 4.8 m
  • Engine manuf. Cummins
  • Engine type QSK60
  • Engine power 1492 kW
  • Displacement 60 l
  • Revolutions at max torque 1800 rpm
  • No. of cylinders 16
  • Cylinder bore x stroke 159x190 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

  • Diesel particulate filter
  • Track adjustment
  • Blade
  • Cabin adjustment
  • Overload alert
  • Material Handling Excavator
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.
