Liebherr R924 excavator specs (2002 - 2024)

Rate this machine now!

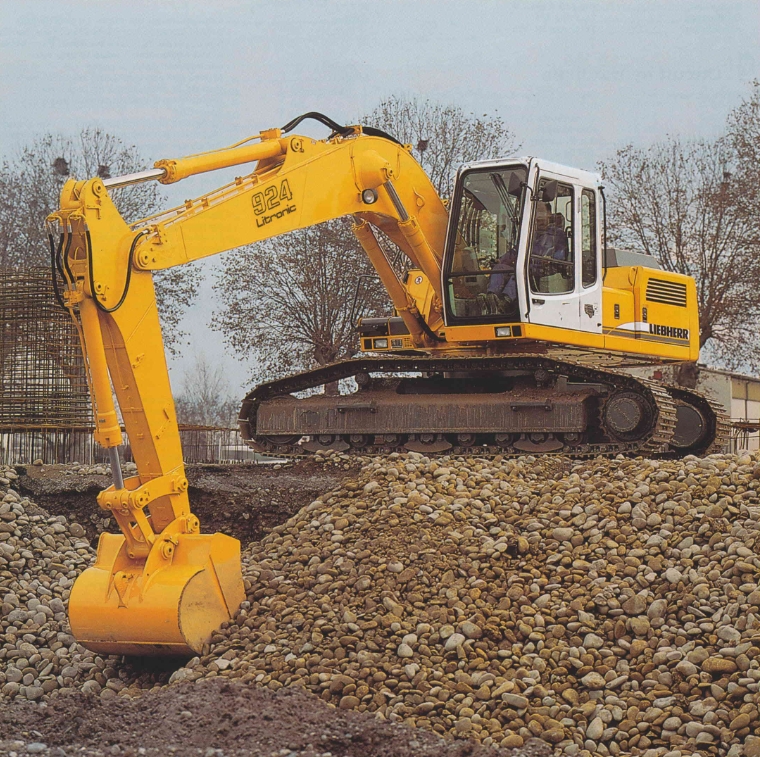

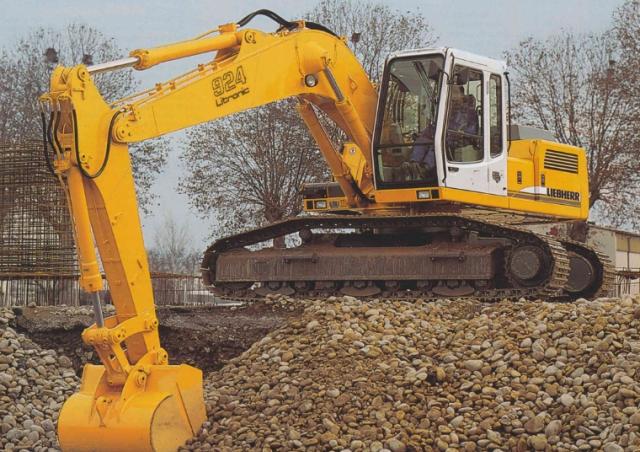

The Liebherr R924 is a crawler excavator that has been manufactured since 2002. It weighs 27.2 tons and has a transport length of ... Read more

The Liebherr R924 is a crawler excavator that has been manufactured since 2002. It weighs 27.2 tons and has a transport length of 5.115 meters, a transport width of 3.165 meters, and a transport height of 3.06 meters. It has a tear-out force of 194 kN and a dredging depth of 7.6 meters. The maximum reach horizontal is 10.65 meters and it has a bucket capacity of 2 U/min and a bucket width of 1.7 Nm. The track width is 750 HP.

Technical specs - R924 Liebherr


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 27.2 t
  • Transport length 5.115 m
  • Transport width 3.165 m
  • Transport height 3.06 m
  • Bucket capacity 2 m³
  • Track width 750 mm
  • Max. Reach horizontal 10.65 m
  • Dredging depth 7.6 m
  • Tear-out force 194 kN
  • Bucket width 1.7 m
  • Engine manuf. Liebherr
  • Engine type D924T-E
  • Engine power 112 kW
  • Displacement 6.6 l
  • Revolutions at max torque 2000 rpm
  • No. of cylinders 4
  • Cylinder bore x stroke 122x142 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

  • Diesel particulate filter
  • Track adjustment
  • Blade
  • Cabin adjustment
  • Overload alert
  • Material Handling Excavator
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.
