Kobelco

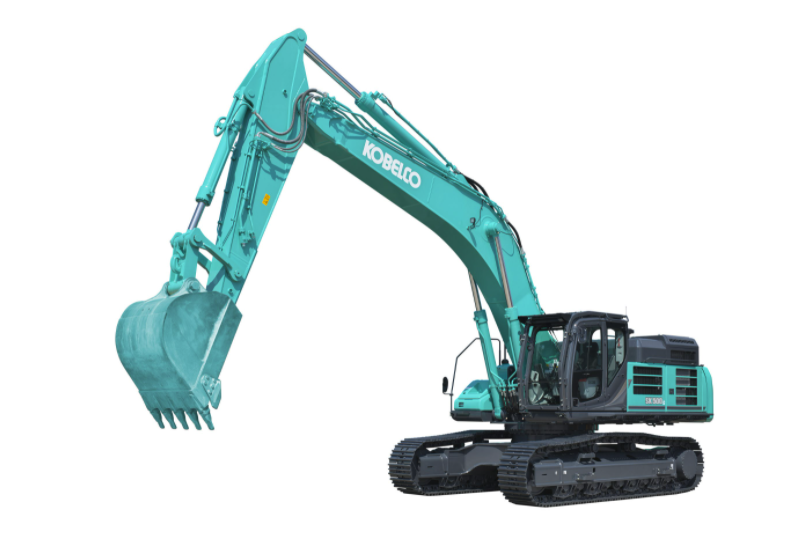

Kobelco SK 350 LC 11 excavator specs (2021 - 2024)

The Kobelco SK 350 LC 11 is a crawler excavator manufactured since 2021. It weighs 37.7 tons and has a transport length of 11.27 m…

The Kobelco SK 350 LC 11 is a crawler excavator manufactured since 2021. It weighs 37.7 tons and has a transport length of 11.27 meters, a transport width of 3.19 meters, and a transport height of 3.36 meters. It has a tear-out force of 180 kN and a dredging depth of 7.2 meters. The maximum reach horizontal is 11.35 meters, and it has a bucket capacity of 1.6 U/min and a bucket width of 1.42 Nm. The track width is 600 HP. It also features special equipment such as air conditioning, a diesel particulate filter, overload alert, and quick hitch hydr.

Crawler Excavators Kobelco SK 350 LC 11

Technical specs - SK 350 LC 11 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.7 t
Transport length
11.27 m
Transport width
3.19 m
Transport height
3.36 m
Bucket capacity
1.6 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
11.35 m
Dredging depth
7.2 m
Tear-out force
180 kN
Bucket width
1.42 m
Model series
SK
Engine manuf.
Hino
Engine type
J 08 EYD
Engine power
213 kW
Displacement
7.684 l
Revolutions at max torque
1600 rpm
Max. torque
1017 Nm
No. of cylinders
6
Cylinder bore x stroke
112x130 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No
