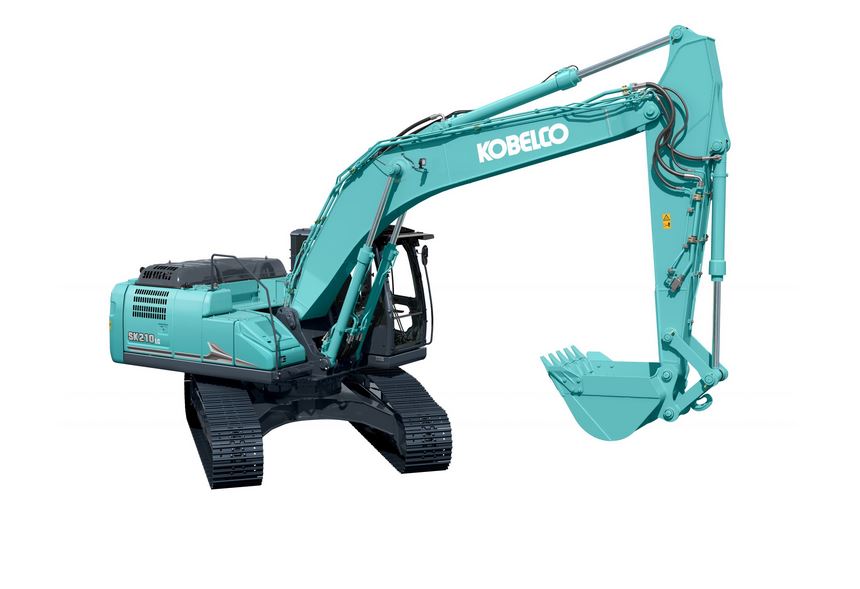

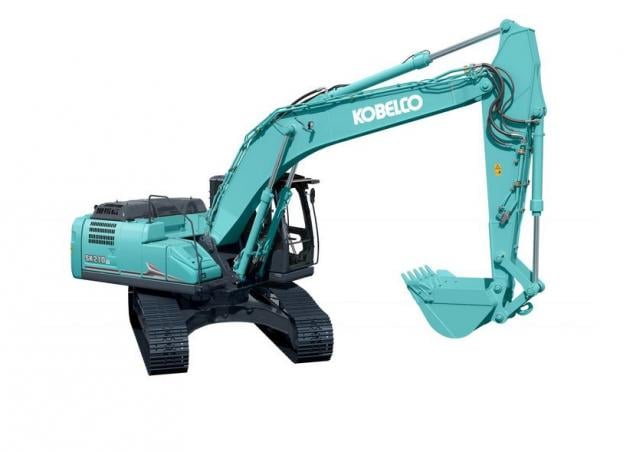

Kobelco SK 210 LC 11 excavator specs (2021 - 2023)

Name: Kobelco SK 210 LC 11 Crawler Excavators
Brand: Kobelco

Kobelco SK 210 LC 11 is a Crawler Excavator manufactured since 2021. It has a weight of 22.7 tons and a track width of 600 mm. The…

Kobelco SK 210 LC 11 is a Crawler Excavator manufactured since 2021. It has a weight of 22.7 tons and a track width of 600 mm. The transport dimensions are 9.74 meters in length, 2.99 meters in width, and 3.06 meters in height. The machine features a tear-out force of 133 kN, a dredging depth of 6.93 meters, and a maximum horizontal reach of 10.53 meters. The bucket width is 1.23 meters with a capacity of 0.93 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Technical specs - SK 210 LC 11 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.7 t

Transport length: 9.74 m

Transport width: 2.99 m

Transport height: 3.06 m

Bucket capacity: 0.93 m³

Undercarriage: LC

Track width: 600 mm

Boom: VA

Max. Reach horizontal: 10.53 m

Dredging depth: 6.93 m

Tear-out force: 133 kN

Bucket width: 1.23 m

Model series: SK

Engine manuf.: Hino

Engine type: J 05 EVA-KSSA

Engine power: 124 kW

Displacement: 5.123 l

Revolutions at max torque: 1600 rpm

Max. torque: 660 Nm

No. of cylinders: 4

Cylinder bore x stroke: 112x130 mm

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: Yes
Track adjustment: No
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No
