    Lectura specs Construction machinery Cold Milling Machines Cold Milling Machines Wirtgen Wirtgen W 210 F specifications

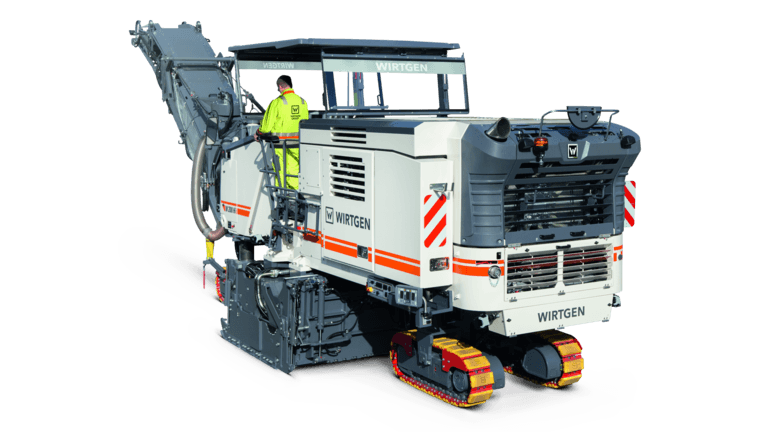

    Cold Milling Machines Wirtgen W 210 F
    Wirtgen

    Wirtgen W 210 F Specifications & Technical Data (2021-2023)

    Rate this machine now!

    Weight: 27t – Track width: 300mm – Cutting width: 2000mm – Cutting depth: 330mm – Operating speed: 100m/min – Travel speed : 6km/h

    Technical specs - W 210 F Wirtgen

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 27 t
    • Track width 300 mm
    • Cutting width 2000 mm
    • Cutting depth 330 mm
    • Operating speed 100 m/min
    • Travel speed 6 km/h
    • Transport length 8.8 m
    • Transport width 2.5 m
    • Transport height 3.9 m
    • Engine manuf. Caterpillar
    • Engine type C18 ATAAC
    • Engine power 571 kW
    • Displacement 18.1 l
    • Emission level Euro --- / US Tier 2

    More technical details, like: standard tyres, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with cutting tools

    Special equipment

    • Diesel particulate filter
    • Cabin
    • Front loading conveyor
    • Infrared heater
    • Aircondition
