    Lectura specs Construction machinery Articulated Dump Trucks Articulated Dump Trucks Liebherr Liebherr TA230 specifications

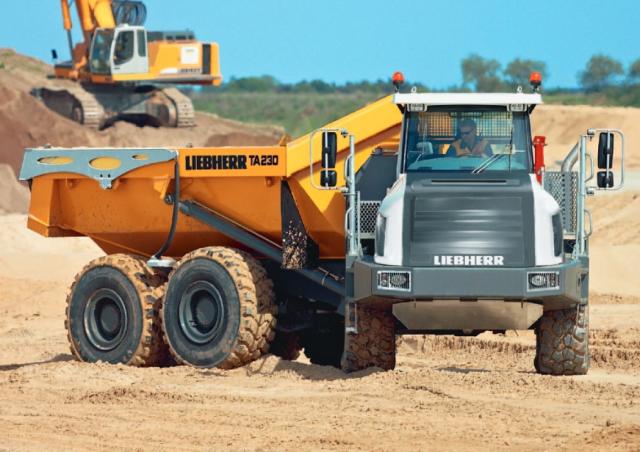

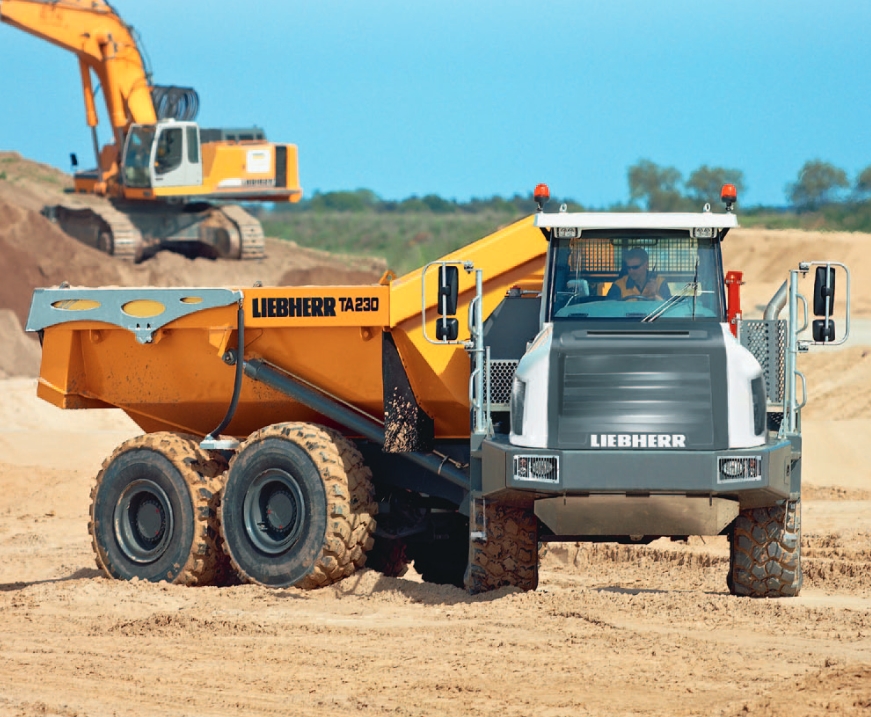

    Liebherr TA230 Specifications & Technical Data (2010-2020)

    Rate this machine now!

    Weight: 23.3t – Standard tyres: 23.5 R25 – Dump capacity: 19m³ – Net load: 30t – Transport length: 10.225m – Transport width: 2.845m

    Technical specs - TA230 Liebherr

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 23.3 t
    • Standard tyres 23.5 R25
    • Dump capacity 19 m³
    • Net load 30 t
    • Transport length 10.225 m
    • Transport width 2.845 m
    • Transport height 3.395 m
    • Turning radius outside 8.385 m
    • Loading height 2.815 m
    • Engine manuf. Liebherr
    • Engine type D936LA6
    • Engine power 270 kW
    • Displacement 10.5 l
    • Revolutions at max torque 1900 rpm
    • Max. torque 1800 Nm
    • No. of cylinders 6
    • Emission level EG stage IIIA/Tier 3

    More technical details, like: travel speed , dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

    Special equipment

    • Diesel particulate filter
    • Central lubrication
    • Heated dump body
    • Tailgate
    • Aircondition
