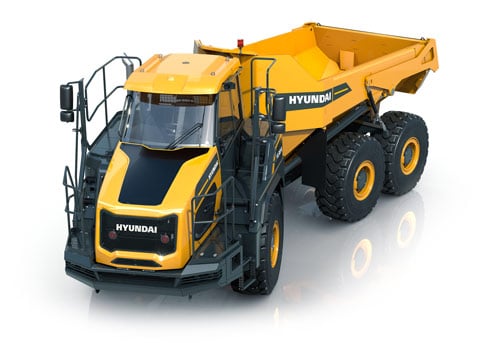

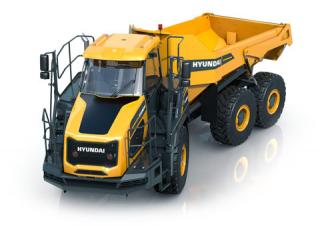

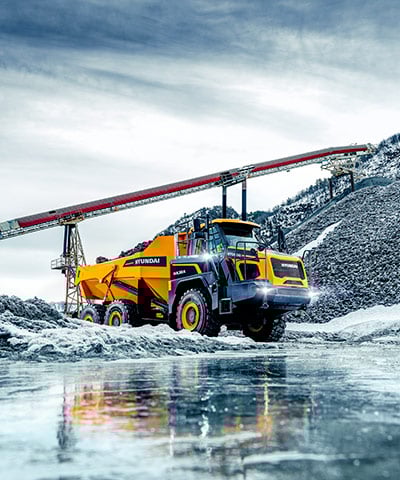

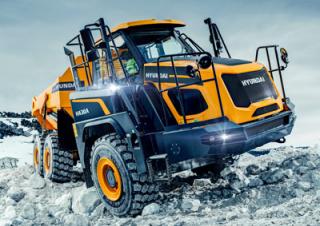

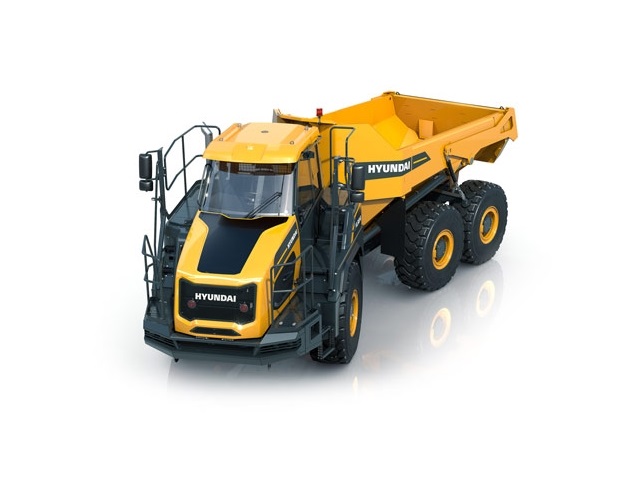

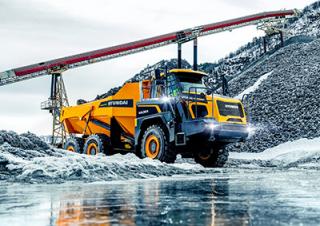

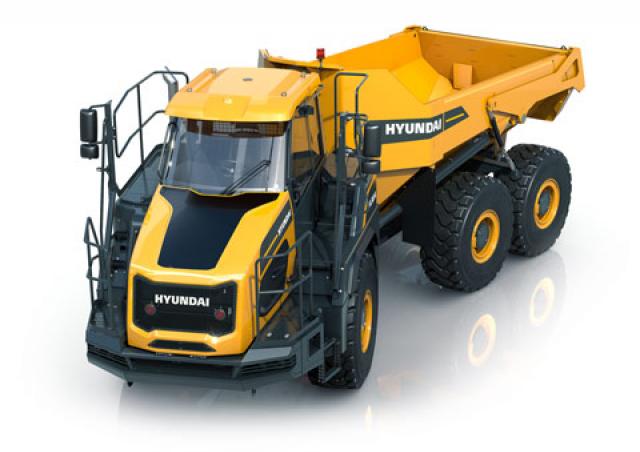

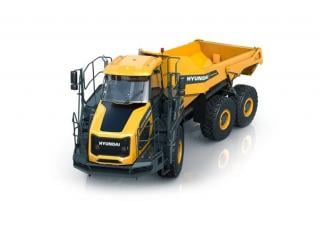

Hyundai HA30A ADT
- Weight:
- 23.2 t
- Standard tyres:
- 23.5 R25. E3
- Dump capacity:
- 16.8 m³
- Travel speed:
- 55 km/h

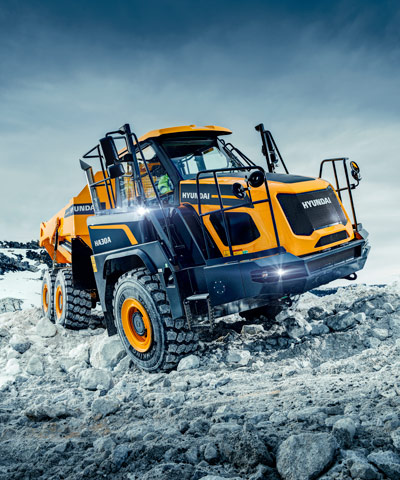

Hyundai HA30A ADT Specifications & Technical Data (2022-2025)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - HA30A ADT Hyundai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 23.2 t
- Standard tyres
- 23.5 R25. E3
- Dump capacity
- 16.8 m³
- Travel speed
- 55 km/h
- Net load
- 28 t
- Transport length
- 9.52 m
- Transport width
- 3 m
- Transport height
- 3.6 m
- Turning radius outside
- 8.1 m
- Loading height
- 2.95 m
- Engine manuf.
- Scania
- Engine type
- DC09
- Engine power
- 276 kW
- Displacement
- 9.3 l
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 1876/1400 Nm
- No. of cylinders
- 5
- Cylinder bore x stroke
- 130x140 mm
- Emission level
- V
More technical details, like: model series, dimension lxwxh are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
