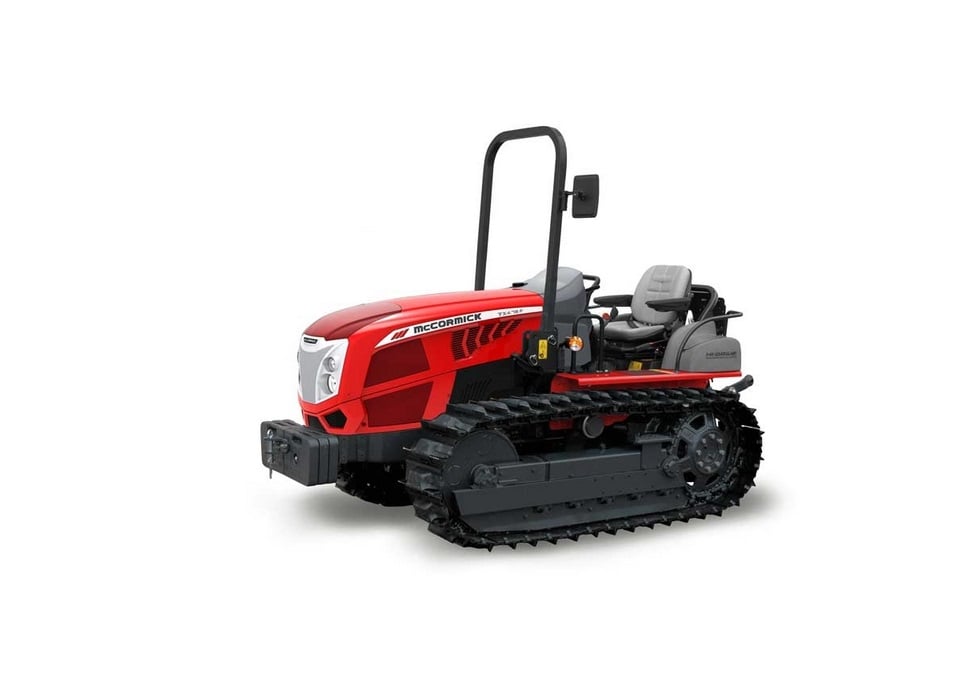

    Track tractors McCormick TX4.65 M

    McCormick TX4.65 M Specifications & Technical Data (2019-2022)

    Rate this machine now!

    Engine power: 70kW – Model series: TX 4 – Track width: 450mm – Transport length: 3.6m – Transport width: 1.75m – Transport height: 2.4m

    Technical specs - TX4.65 M McCormick

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Engine power 70 kW
    • Model series TX 4
    • Track width 450 mm
    • Transport length 3.6 m
    • Transport width 1.75 m
    • Transport height 2.4 m
    • Transmission 16/8
    • Transmission type m
    • Weight 4.1 t
    • Engine manuf. Deutz
    • Engine type TCD2.9 L4
    • Displacement 2.9 l
    • Revolutions at max torque 2200 rpm
    • Max. torque 400 Nm
    • No. of cylinders 4
    • Emission level Tier 4 i

    More technical details, like: length of travelling mechanism, travel speed , control unit, three point category, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

    Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition
