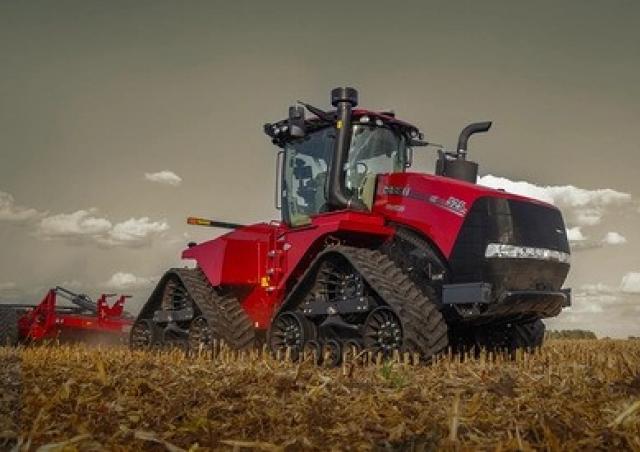

Case IH Steiger 525 Quadtrac Specifications & Technical Data (2024-2024)
Technical specs - Steiger 525 Quadtrac Case IH
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Engine power
- 391 kW
- Model series
- Steiger
- Travel speed
- 40 km/h
- Transmission
- 16/2
- Transmission type
- LS
- Weight
- 23.358 t
- Engine manuf.
- FPT
- Engine type
- Cursor 13
- Displacement
- 13 l
- No. of cylinders
- 6
- Emission level
- Tier 4 B/Final; Stage V
More technical details, like: track width, length of travelling mechanism, transport length, transport width, transport height, control unit, three point category, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- Front hydraulics
-
No
- Front PTO
-
No
- Air brakes
-
No
- ISO Bus
-
Yes
- Aircondition
-
Yes
