Case IH Quadtrac 620 Specifications & Technical Data (2014-2020)

Rate this machine now!

Engine power: 462kW – Model series: Quadtrac – Track width: 762mm – Transport length: 7.615m – Transport width: 2.997m – Transport height: 3.866m

Technical specs - Quadtrac 620 Case IH


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 462 kW
  • Model series Quadtrac
  • Track width 762 mm
  • Transport length 7.615 m
  • Transport width 2.997 m
  • Transport height 3.866 m
  • Transmission 16/2
  • Weight 24.268 t
  • Control unit -/4 ew/dw
  • Engine manuf. Fiat
  • Engine type Cursor 13
  • Displacement 12.9 l
  • No. of cylinders 6
  • Emission level Tier 4

More technical details, like: fuel consumption range (min - max), length of travelling mechanism, travel speed, transmission type, three point category, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • Air brakes
  • ISO Bus
  • Aircondition

Carbon footprint calculator for Track tractors

Use the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Case IH Quadtrac 620 or alternative Track tractors.

The emission calculation can be carried out considering different energy consumption scenarios or other variables.

or go to the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

service provided by ERA

What Case IH says about this machine

  • What are the key characteristics of this model?

    The Case IH Quadtrac are currently the most powerful tractors on the market. They stand out thanks to the latest HI-eSCR2 exhaust technology with the industry's most impressive performance and consumption values. The main feature, however, is the innovative caterpillar drive with 4 belts and articulated joint.

  • What type of job is the machine best suited to do?

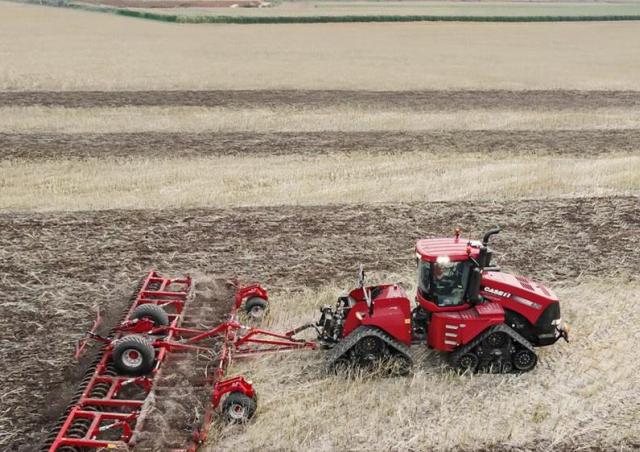

    Tillage and sowing: With the standard equipment in Germany with 762 mm wide rubber bands and the outer width of only 2.99, the Quadtrac has a total contact area of 5.6 m². This is the prerequisite for the low ground pressure and the extremely high traction with minimal slip.

  • Can you name features that differentiates this machine from others?

    Case IH has long been a leader in the serial production of all-wheel drive tractors with articulated steering. When we launched the Quadtrac in 1997, we were the first manufacturer to introduce a tractor with articulated steering and four independent drives. Twenty years later, the introduction of the continuously variable CVXDrive transmission set another milestone in the high horsepower range.

  • What type of companies is this machine designed for?

    These tractors are the first choice for all large arable farms that rely on efficiency, reliability and high area coverage.
