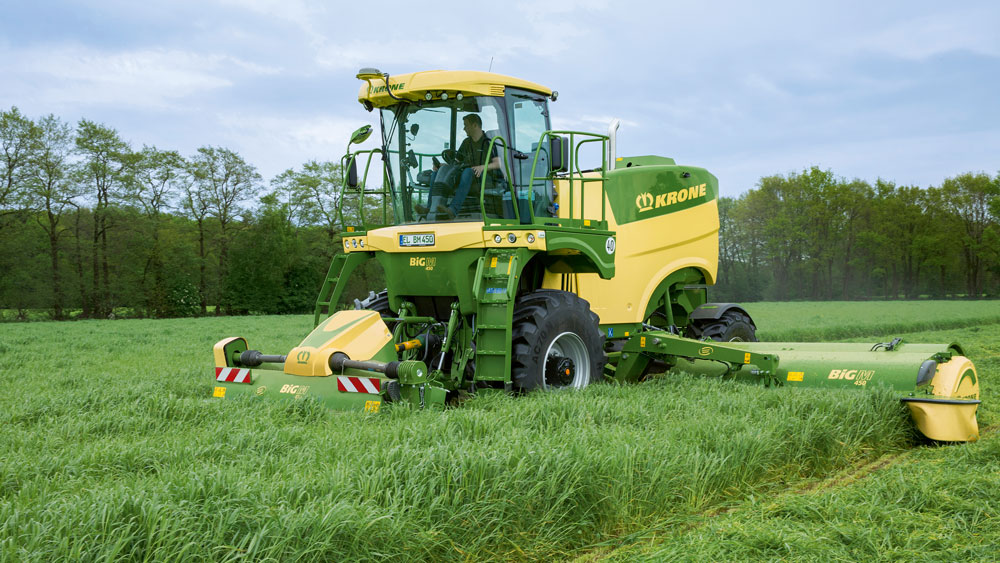

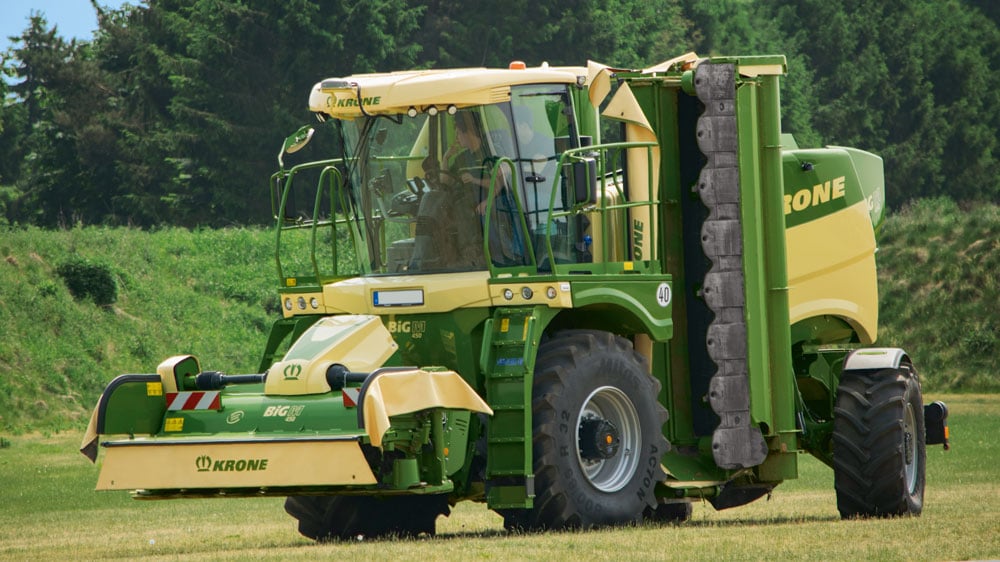

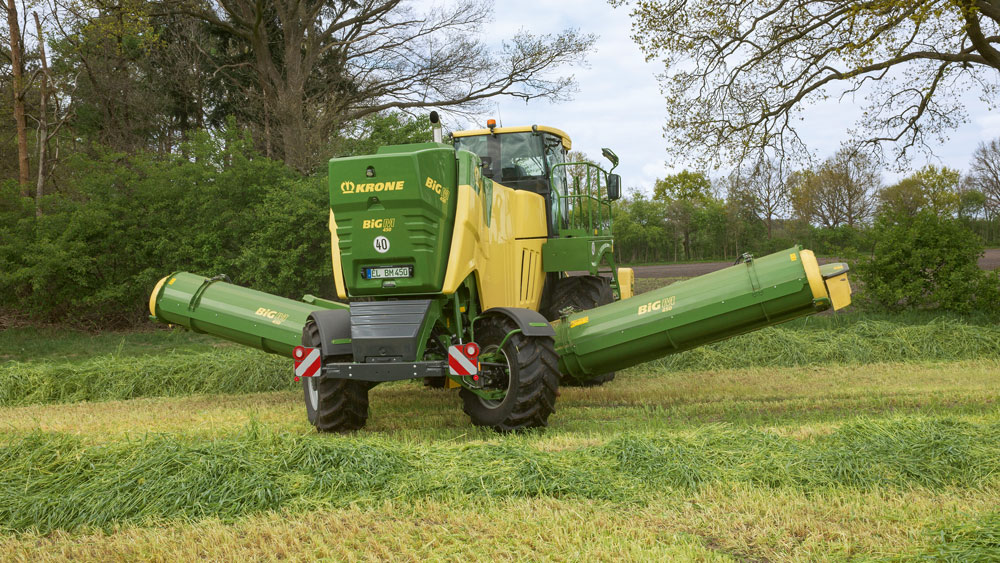

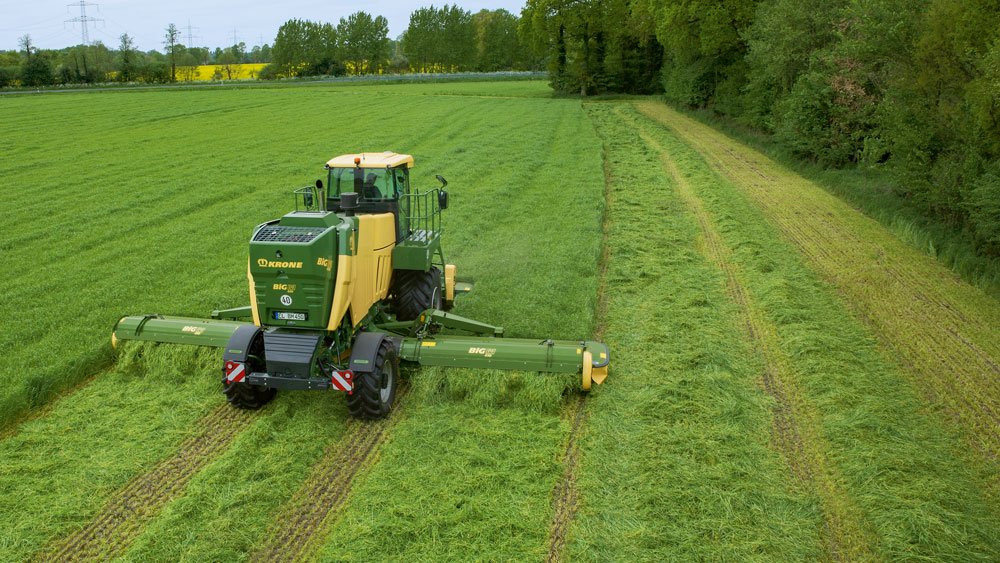

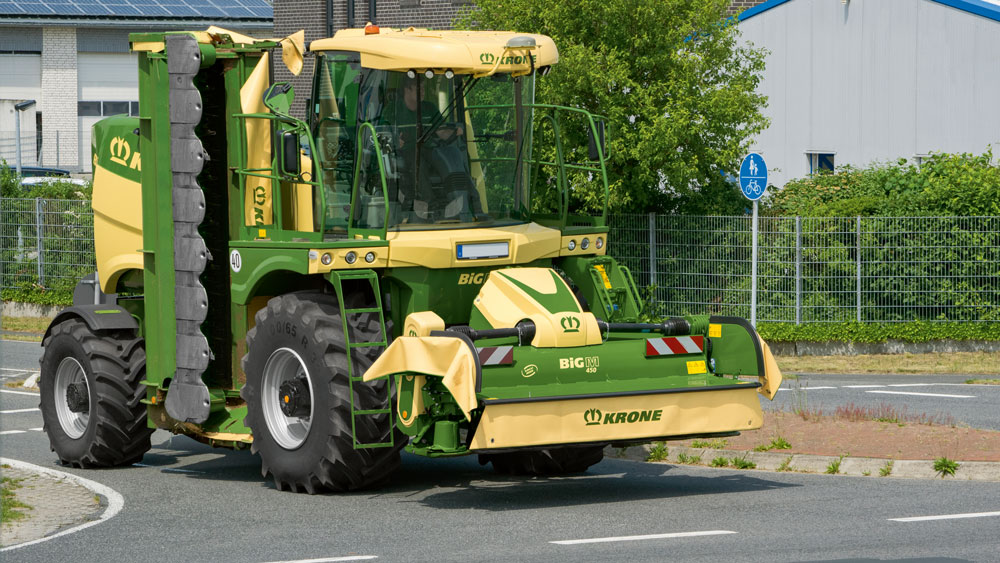

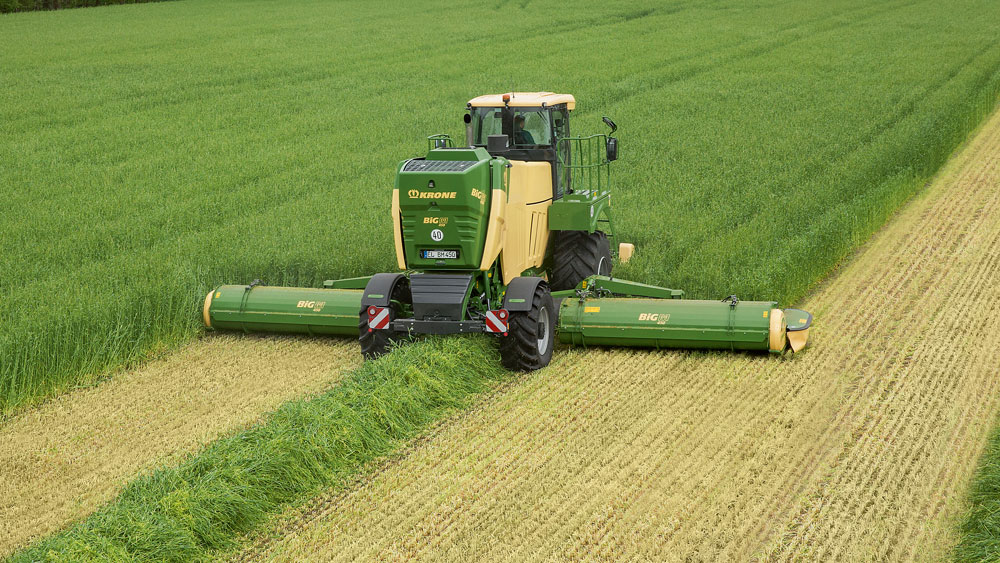

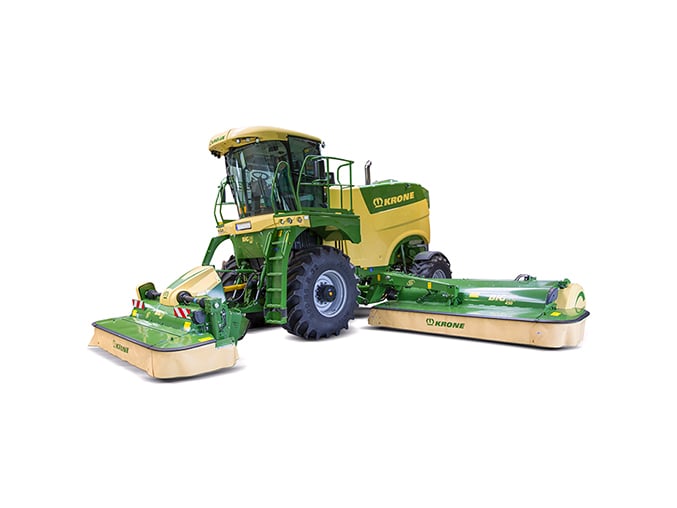

Krone BiG M 450 CR Specifications & Technical Data (2020-2024)

Rate this machine now!

Working width: 9.9m – Weight: 16.5t – Transport length: 8.45m – Transport width: 3m – Transport height: 4m – Travel speed: 40km/h

Technical specs - BiG M 450 CR Krone

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Working width 9.9 m
  • Weight 16.5 t
  • Transport length 8.45 m
  • Transport width 3 m
  • Transport height 4 m
  • Travel speed 40 km/h
  • Back tyres 600/65 R 28
  • Front tyres 800/65 R 32
  • Cutting height adjustment h
  • Engine manuf. Liebherr
  • Engine type D946
  • Engine power 330 kW
  • Displacement 12 l
  • No. of cylinders 6
  • Emission level V

More technical details, like: steering, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

  • All-wheel drive
  • Codriver seat
  • Swath merging
  • Driveline hydrostat.
  • Front Axle suspension
  • Aircondition
