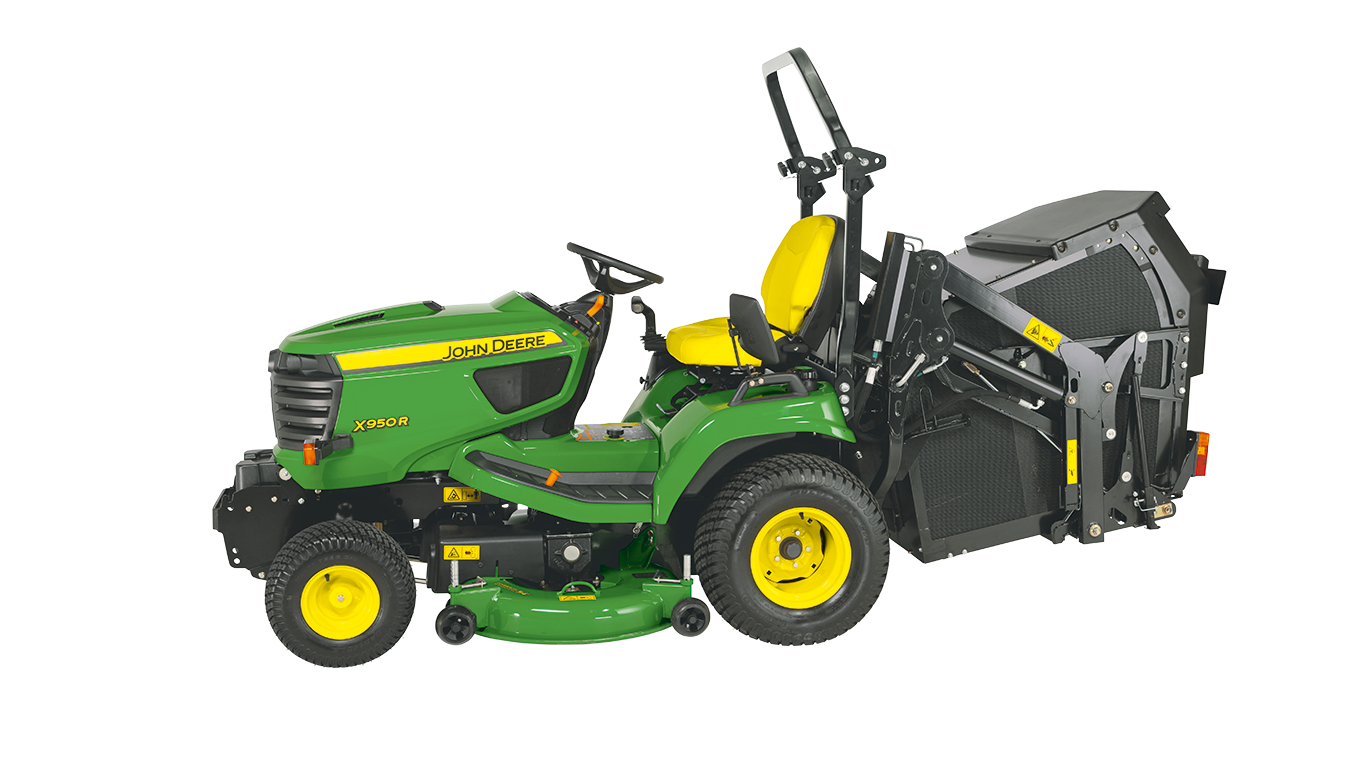

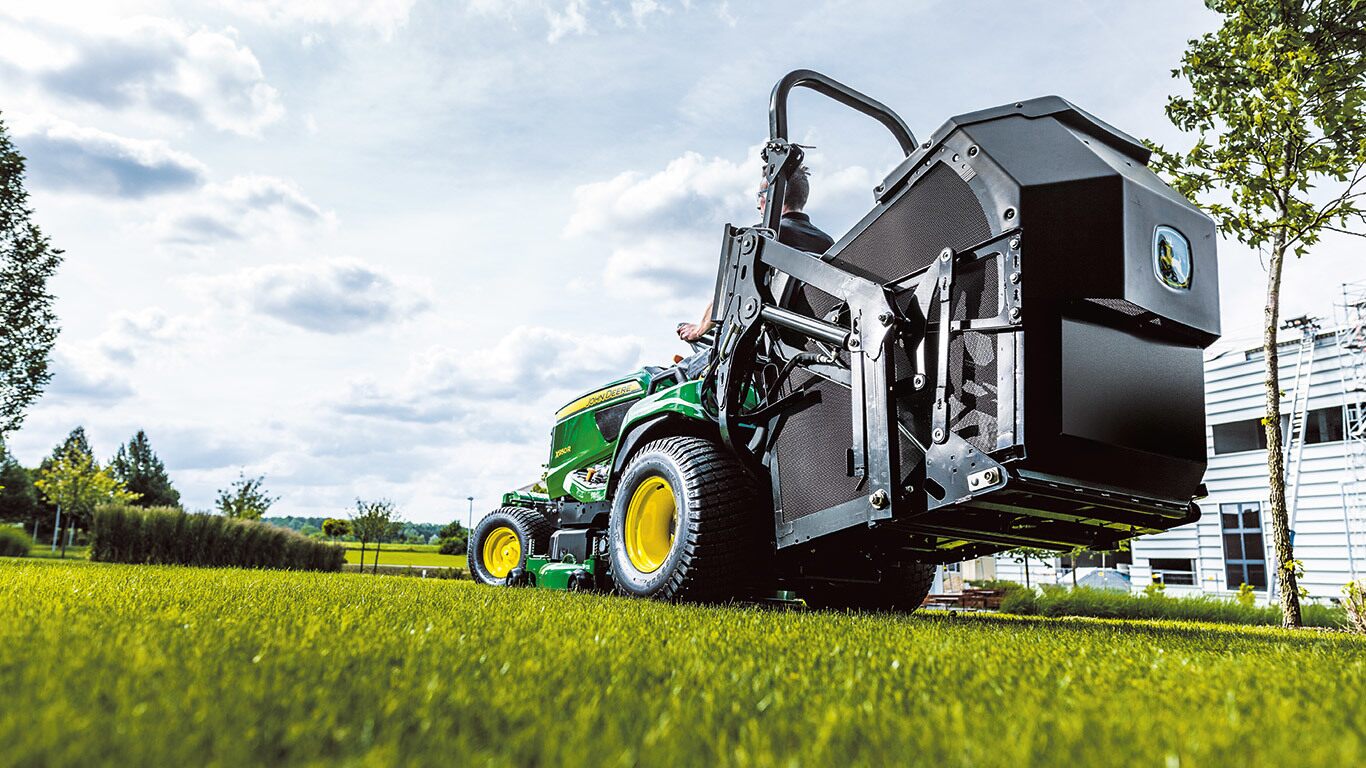

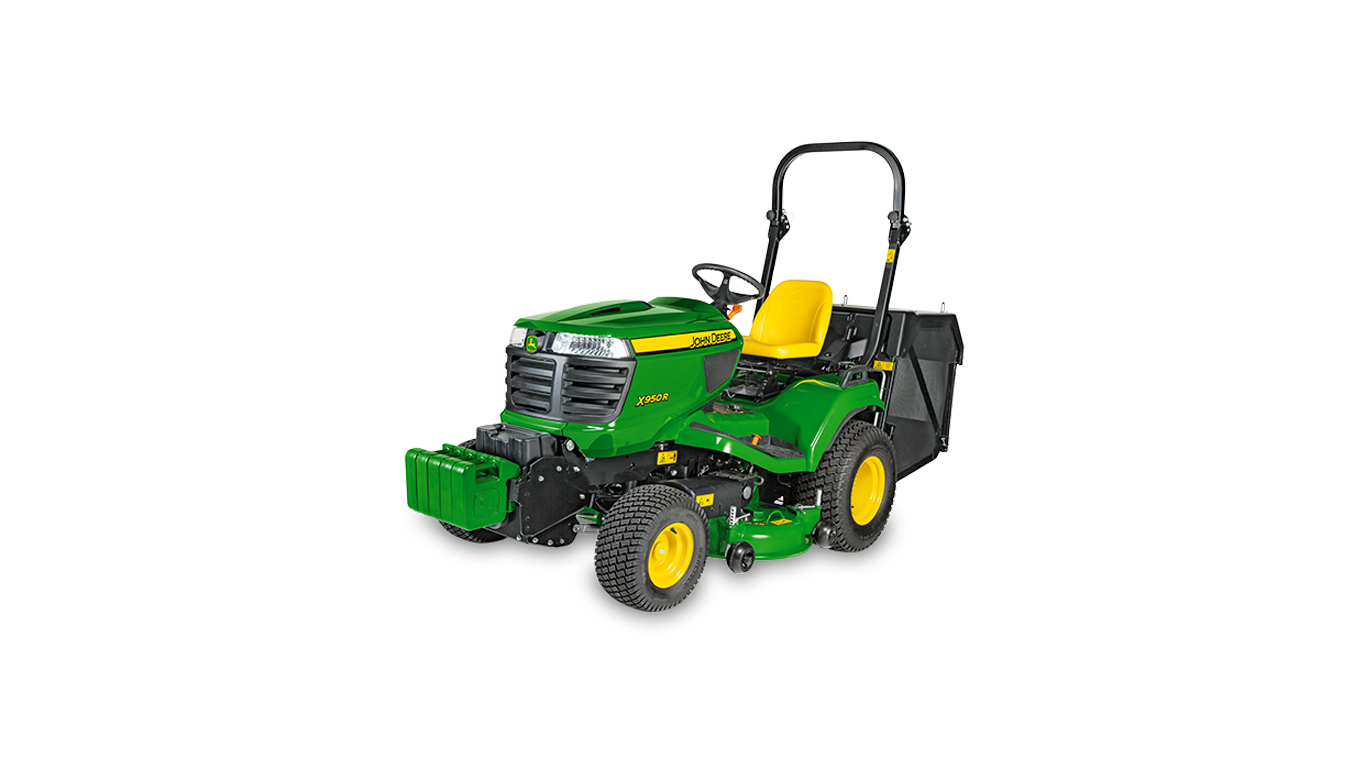

John Deere X950R Specifications & Technical Data (2021-2023)

Rate this machine now!

Engine power: 18kW – Weight: 1014kg – Power source: Diesel – Cutting width: 1370mm – Transport length: 3.45m – Transport width: 1.18m

Technical specs - X950R John Deere


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 18 kW
  • Weight 1014 kg
  • Power source Diesel
  • Cutting width 1370 mm
  • Transport length 3.45 m
  • Transport width 1.18 m
  • Transport height 2.08 m
  • Capacity 650 l
  • Travel speed 14.5 km/h
  • Reverse travel speed 9.7 km/h
  • Back tyres 26×12-12
  • Front tyres 18×8.50-8
  • Model series X900
  • Engine manuf. N/A
  • Engine type N/a

More technical details, like: average fuel consumption, fuel consumption range (min - max), turning radius, seat height , transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
