Laverda M 410 Specifications & Technical Data (2012-2024)

Name: Laverda M 410 Combine Harvesters
Brand: Laverda

The Laverda M 410 is a combine harvester manufactured by Laverda since 2012. It has an engine power of 265 kW and measures 9 meter…

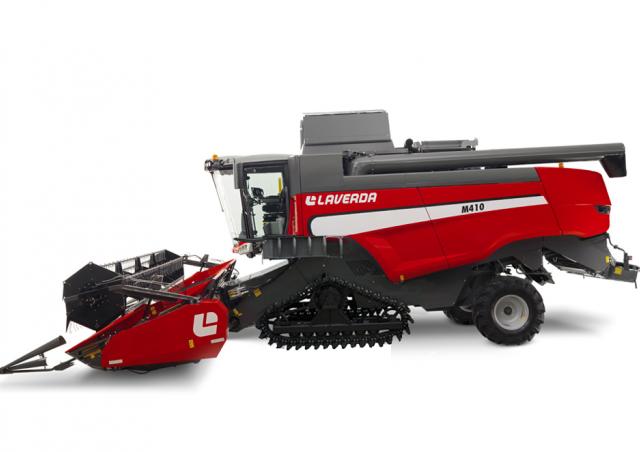

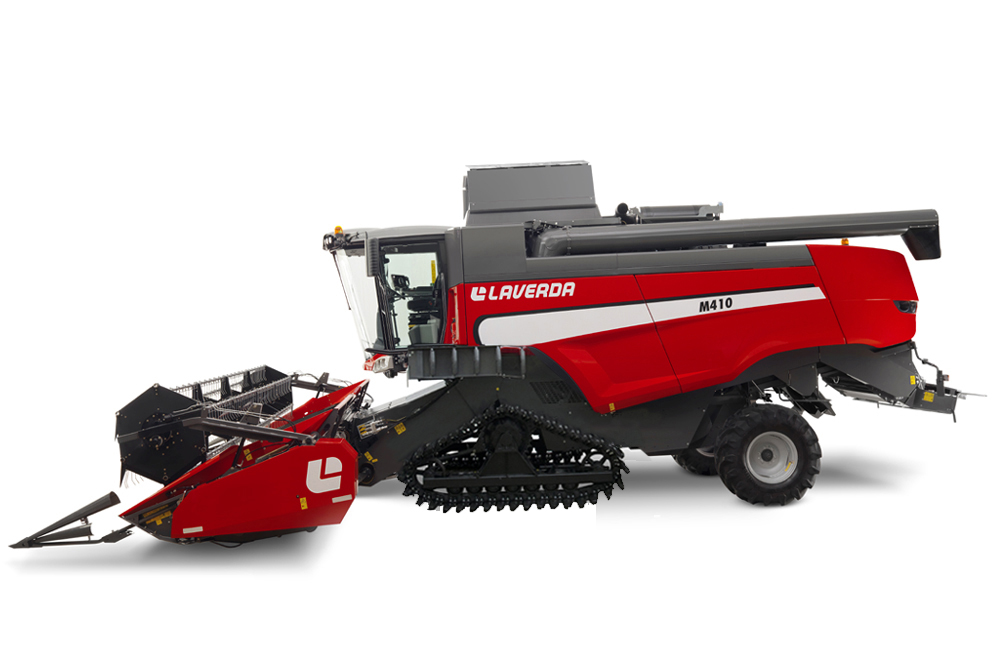

The Laverda M 410 is a combine harvester manufactured by Laverda since 2012. It has an engine power of 265 kW and measures 9 meters in length, 3.495 meters in width, and 4 meters in height when being transported. It is equipped with 6 walkers and has a grain tank size of 9000 liters. The cutting platform width is 5.5 meters. Additionally, it comes with special equipment including air conditioning, a cabin, a chaff spreader, loss monitoring, a stone trap, and a straw chopper.

M 410

Years of manufacture: 2012—2024

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - M 410 Laverda

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 265 kW

Model series: M400

Standard tyres: 650/75R32

Threshing system: T

Walkers: 6

Grain tank size: 9000 l

Cutting platform width: 5.5 m

Steering: HH

Transmission type: h

Transport length: 9 m

Transport width: 3.495 m

Transport height: 4 m

Engine manuf.: AGCO Power

Engine type: 84 AWF 937

Revolutions at max torque: 2000 rpm

Emission level: IV

More technical details, like: rotor Ø, weight, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Straw chopper: Yes
Stone Trap: Yes
Hillside levelling: No
Chaff spreader: Yes
Loss monitoring: Yes
Rollover protection: No
All-wheel drive: No
Aircondition: Yes
