Laverda M 180 Specifications & Technical Data (2016-2024)

Name: Laverda M 180 Combine Harvesters
Brand: Laverda

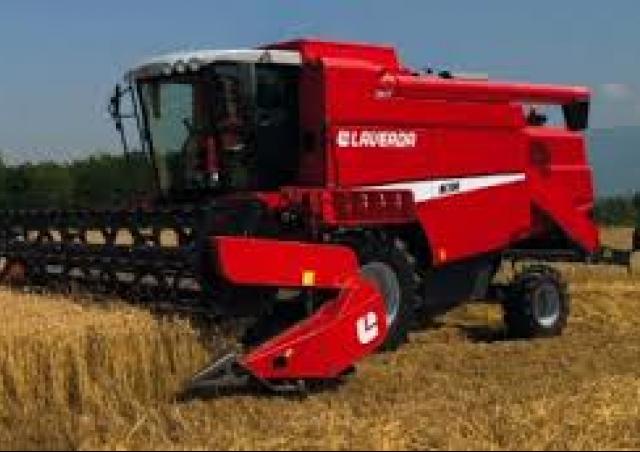

The Laverda M 180 is a combine harvester manufactured by Laverda since 2016. It is equipped with a 136 kW engine and measures 8.7 …

The Laverda M 180 is a combine harvester manufactured by Laverda since 2016. It is equipped with a 136 kW engine and measures 8.7 meters in length, 3.3 meters in width, and 4 meters in height. The machine features 5 walkers and has a grain tank size of 5200 liters. Additionally, it has a cutting platform width of 5.5 meters and special equipment including air conditioning, a cabin, a chaff spreader, a stone trap, and a straw chopper.

M 180

Years of manufacture: 2016—2024

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - M 180 Laverda

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 136 kW

Model series: M180

Standard tyres: 620/75R30

Threshing system: T

Walkers: 5

Grain tank size: 5500 l

Steering: HH

Transmission type: h

Weight: 8.7 t

Transport length: 8.7 m

Transport width: 3.3 m

Transport height: 4 m

Engine manuf.: AGCO Power

Engine type: 49 AWF 1194

Displacement: 4.9 l

Revolutions at max torque: 2100 rpm

No. of cylinders: 4

Emission level: IV

More technical details, like: rotor Ø, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Straw chopper: Yes
Stone Trap: Yes
Hillside levelling: No
Chaff spreader: Yes
Loss monitoring: No
Rollover protection: No
All-wheel drive: No
Aircondition: Yes
