    John Deere T670 Specifications & Technical Data (2015-2020)

    Rate this machine now!

    The T 670 combine harvester model is manufactured by John Deere. Find and download detailed specs and data sheets for this machine... Read more

    The T 670 combine harvester model is manufactured by John Deere. Find and download detailed specs and data sheets for this machine here.

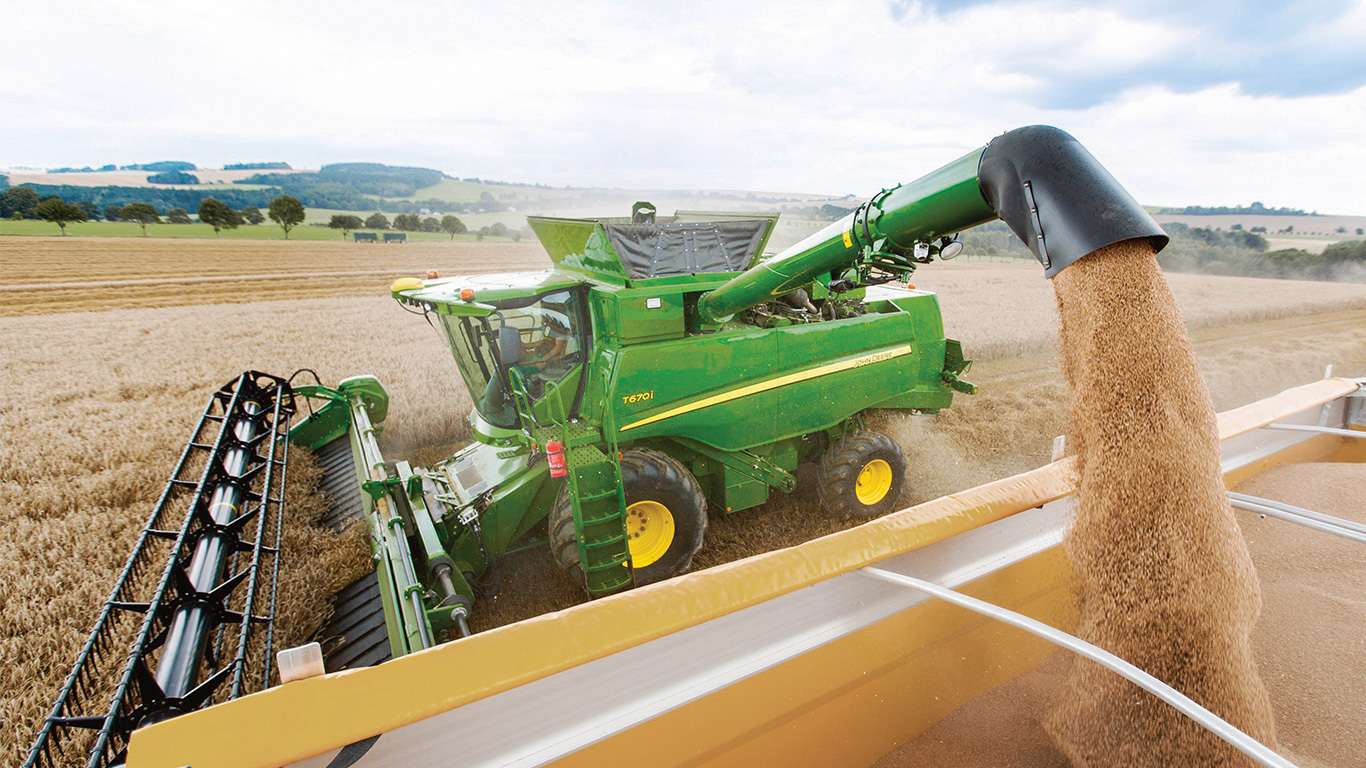

    This combine harvester is built to provide up to 335kW or 449 horse power, delivered from its powerful John Deere engine to the 15.29t T 670 machine. The John Deere T 670 can be grouped in the more powerful machine segment in the combine harvesters category. The T 670’s size is 3.8m x 3.25m x 3.96m.

    The T 670 is manufactured and distributed with Cabin, Aircondition and Stone Trap. It has been sold without air Rollover protection, All-wheel drive and Loss Monitor as of 2017. There are more detailed specifications and machine descriptions available in the original John Deere T 670 specs data sheet.

    The production is still going in 2017, where this T 670 is available at a new list price between €310000 and €395000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    At present, 68 other combine harvesters, which range from 157kW up to 460kW are produced by John Deere. Of these, W 540 HM, W 330 and also S 690 i are the most frequently visited on LECTURA Specs. This T 670 combine harvester, which has been in production between 2015 and 2017 ranks in the LECTURA index at #113. Want more detailed specifications? Download the latest John Deere T 670 specs data sheet on LECTURA Specs today!

    Technical specs - T670 John Deere


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Engine power 335 kW
    • Standard tyres VR 800/65 R32 HR 480/80 R26
    • Threshing system T
    • Walkers 6
    • Rotor Ø 660 mm
    • Grain tank size 11000 l
    • Cutting platform width 7,6 m
    • Steering HH
    • Transmission type h
    • Weight 15.29 t
    • Transport length 3.25 m
    • Transport width 3.8 m
    • Transport height 3.96 m
    • Engine manuf. John Deere
    • Engine type PSS 9.0
    • Displacement 9 l
    • No. of cylinders 6
    • Cylinder bore x stroke 118.4x136 mm
    • Emission level Tier 4 f

    More technical details, like: dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

    Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

    Special equipment

    • Cabin
    • Straw chopper
    • Stone Trap
    • Hillside levelling
    • Chaff spreader
    • Loss monitoring
    • Rollover protection
    • All-wheel drive
    • Aircondition
