John Deere S780 HM Specifications & Technical Data (2018-2018)

Rate this machine now!

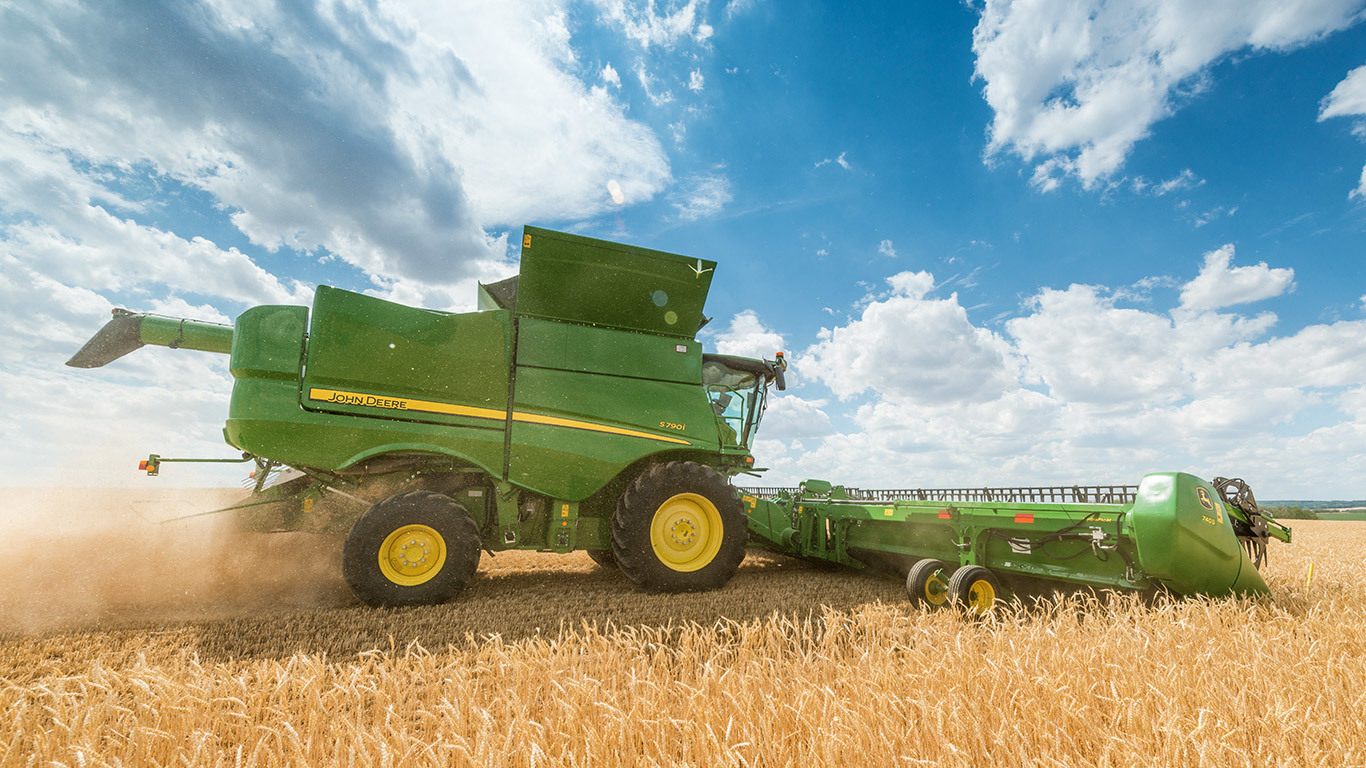

The S 780 HM combine harvester model is manufactured by John Deere. Find and download detailed specs and data sheets for this mach... Read more

The S 780 HM combine harvester model is manufactured by John Deere. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful John Deere engine, this S 780 HM machine can provide 402kW or 539 horse power for the combine harvester. The John Deere S 780 HM can be grouped in the more powerful machine segment in the combine harvesters category. The model's dimensions are 9.1m x 3.45m x 4m.

The S 780 HM is manufactured and distributed with Aircondition, Cabin and All-wheel drive. It has been sold without air Loss Monitor and Rollover protection as of 2017. There are more detailed specifications and machine descriptions available in the original John Deere S 780 HM specs data sheet.

The production is still going in 2017, where this S 780 HM is available at a new list price between €387000 and €493000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

John Deere currently produces 68 other combine harvesters, which range from 157kW up to 460kW - the most visited on LECTURA Specs are W 540 HM, W 330, S 690 i. Want more detailed specifications? Download the latest John Deere S 780 HM specs data sheet on LECTURA Specs today!

Technical specs - S780 HM John Deere


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 402 kW
  • Model series S
  • Standard tyres IF 680/85 R 32/500/85 R 24
  • Threshing system R
  • Rotor Ø 762 mm
  • Grain tank size 10600 l
  • Cutting platform width 7.6 m
  • Steering HH
  • Transmission type h
  • Transport length 9.1 m
  • Transport width 3.45 m
  • Transport height 4 m
  • Engine manuf. John Deere
  • Engine type PSS 9.0
  • Displacement 9 l
  • No. of cylinders 6
  • Cylinder bore x stroke 118.4x136 mm
  • Emission level Tier 4 f

More technical details, like: average fuel consumption, fuel consumption range (min - max), walkers, weight, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Straw chopper
  • Stone Trap
  • Hillside levelling
  • Chaff spreader
  • Loss monitoring
  • Rollover protection
  • All-wheel drive
  • Aircondition
