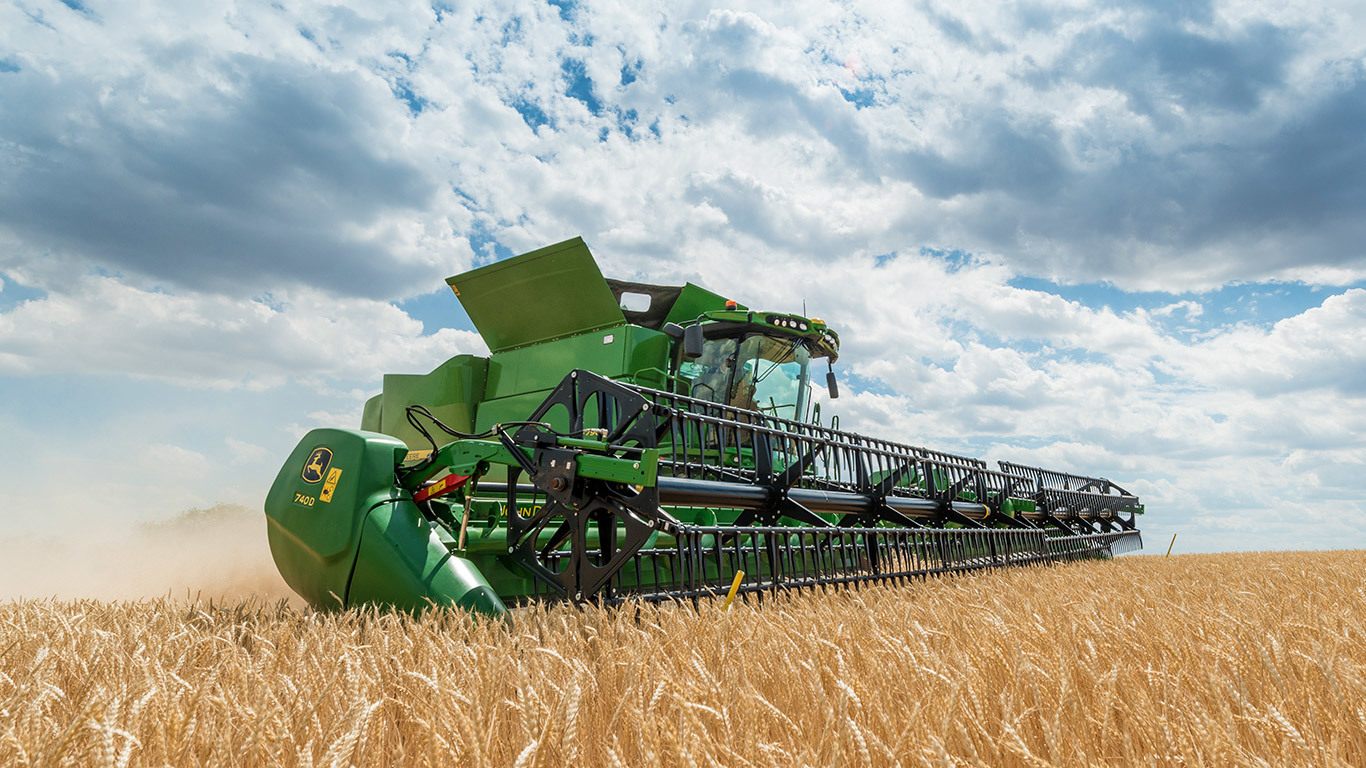

John Deere S 785 HM Specifications & Technical Data (2018-2018)

Rate this machine now!

John Deere is the manufacturer of the combine harvester model S 785 HM. Find and download detailed specs and data sheets for this ... Read more

John Deere is the manufacturer of the combine harvester model S 785 HM. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful John Deere engine, this S 785 HM machine can provide 426kW or 571 horse power for the combine harvester. The S 785 HM is categorised in the more powerful machine segment in the combine harvesters category. The S 785 HM’s size is 3.45m x 9.1m x 4m.

The John Deere S 785 HM has been equipped and sold with Aircondition, All-wheel drive and Hillside levelling. Loss Monitor and Rollover protection are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original John Deere S 785 HM specs data sheet.

This model can be acquired for a list price between €403000 and €513000. Production of the S 785 HM continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 68 other combine harvesters, which range from 157kW up to 460kW are produced by John Deere. Of these, W 540 HM, S 690 i and also W 330 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest John Deere S 785 HM specs data sheet on LECTURA Specs today!

Technical specs - S 785 HM John Deere


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 426 kW
  • Model series S
  • Standard tyres IF 680/85 R 32/500/85 R 24
  • Threshing system R
  • Rotor Ø 762 mm
  • Grain tank size 10600 l
  • Cutting platform width 9.15 m
  • Steering HH
  • Transmission type h
  • Transport length 9.1 m
  • Transport width 3.45 m
  • Transport height 4 m
  • Engine manuf. John Deere
  • Engine type PSS 9.0
  • Displacement 9 l
  • No. of cylinders 6
  • Cylinder bore x stroke 118.4x136 mm
  • Emission level Tier 4 f

More technical details, like: average fuel consumption, fuel consumption range (min - max), walkers, weight, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Straw chopper
  • Stone Trap
  • Hillside levelling
  • Chaff spreader
  • Loss monitoring
  • Rollover protection
  • All-wheel drive
  • Aircondition
