Case IH Axial Flow 9250 Specifications & Technical Data (2021-2025)

Name: Case IH Axial Flow 9250 Combine Harvesters
Brand: Case IH

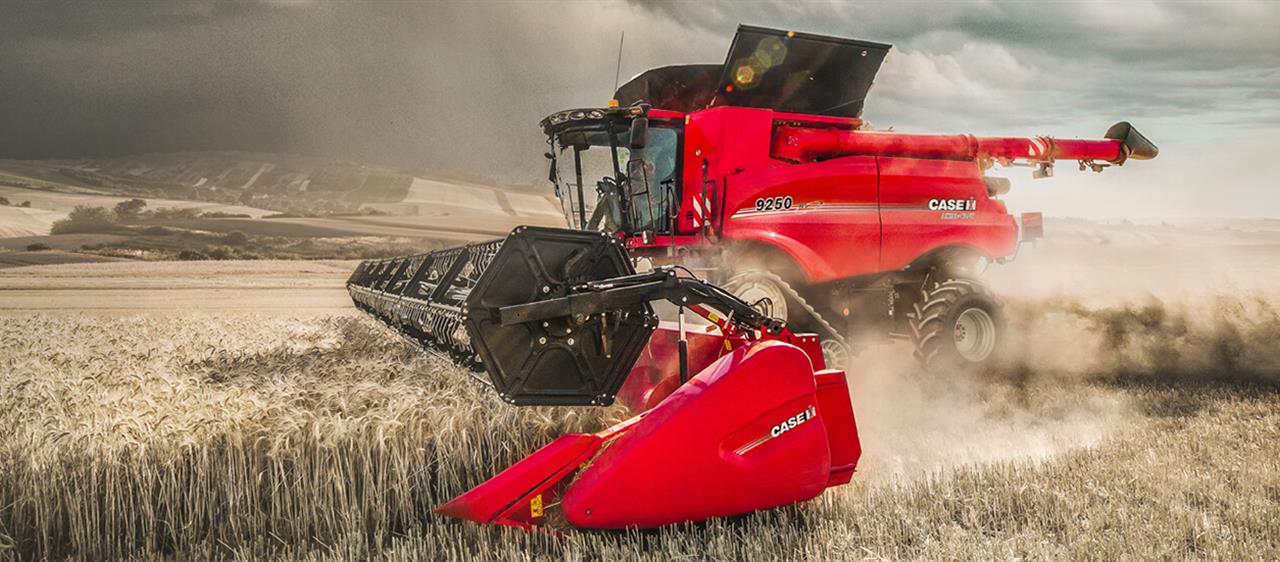

The Case IH Axial Flow 9250 is a combine harvester manufactured by Case IH since 2021. It has a weight of 21 tons and is powered b…

The Case IH Axial Flow 9250 is a combine harvester manufactured by Case IH since 2021. It has a weight of 21 tons and is powered by an engine with a power output of 466 kW. The combine harvester has a transport length of 8.05 meters, a transport width of 3.49 meters, and a transport height of 3.98 meters. It is equipped with a grain tank with a capacity of 14,400 liters and a rotor diameter of 762 mm. The machine also features special equipment including air conditioning, a cabin, a chaff spreader, a stone trap, and a straw chopper.

Axial Flow 9250

Years of manufacture: 2021—2025

Data sheet
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Axial Flow 9250 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 466 kW

Model series: Axial-Flow

Standard tyres: VR710/70 R42 HR500/85 R24

Threshing system: R

Rotor Ø: 762 mm

Grain tank size: 14400 l

Cutting platform width: 12.5 m

Steering: HH

Transmission type: h

Weight: 21 t

Transport length: 8.05 m

Transport width: 3.49 m

Transport height: 3.98 m

Engine manuf.: Case IH

Engine type: Cursor 16

Displacement: 16 l

No. of cylinders: 6

Emission level: V

More technical details, like: walkers, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Straw chopper: Yes
Stone Trap: Yes
Hillside levelling: No
Chaff spreader: Yes
Loss monitoring: No
Rollover protection: No
All-wheel drive: No
Aircondition: Yes
