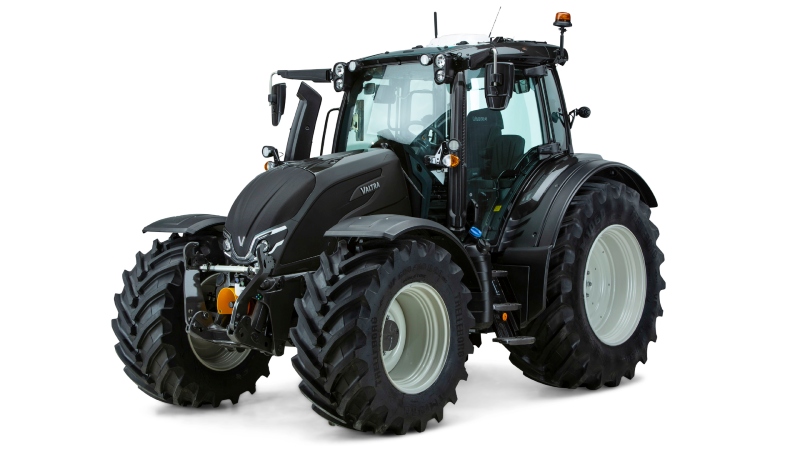

    Valtra N174H Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Engine power: 121kW – Back tyres: 520/85 R38 – Front tyres: 420/70 R28 – Transport length: 4.656m – Transport width: 2.55m – Transport height: 2.96m

    Technical specs - N174H Valtra

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Engine power 121 kW
    • Back tyres 520/85 R38
    • Front tyres 420/70 R28
    • Transport length 4.656 m
    • Transport width 2.55 m
    • Transport height 2.96 m
    • Travel speed 40 km/h
    • Transmission 30/30
    • Transmission type LS
    • Weight 6.3 t
    • Control unit 2 ew/dw
    • Steering h
    • three point category 2
    • Engine manuf. AGCO
    • Engine type 49 AWF
    • Displacement 4.9 l
    • Revolutions at max torque 1900 rpm
    • Max. torque 610 Nm
    • No. of cylinders 4
    • Cylinder bore x stroke 108/134 mm
    • Emission level V

    is a 0 for the size specification so that means, that no information is available.

    Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition
