Steyr Kompakt 4100 HI LO 1.5 Specifications & Technical Data (2021-2025)

The Steyr Kompakt 4100 HI LO 1.5 is a 4-wheel drive tractor manufactured by Steyr since 2021. It has a weight of 3.6 tons and is p…

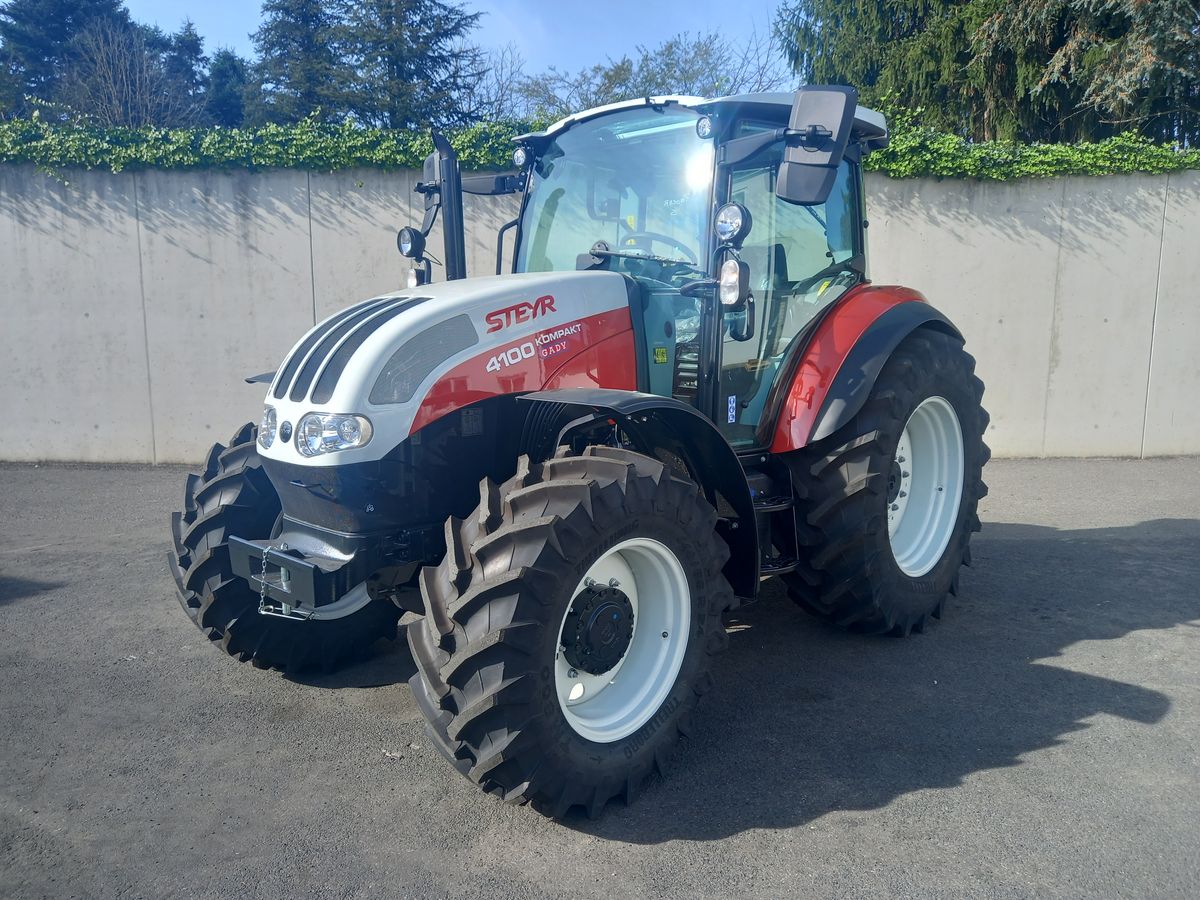

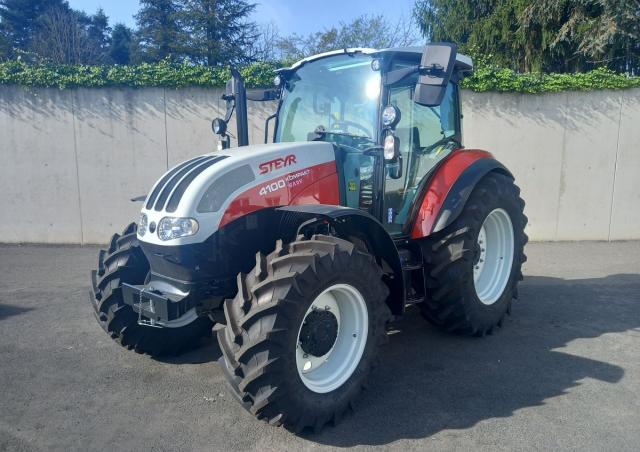

The Steyr Kompakt 4100 HI LO 1.5 is a 4-wheel drive tractor manufactured by Steyr since 2021. It has a weight of 3.6 tons and is powered by an engine with a capacity of 74 kW. The tractor has a transport length of 4.241 meters and can travel at a speed of 40 km/h. It has a transport width of 1.923 meters and a transport height of 2.594 meters. The tractor is equipped with 2 control units and comes with special equipment such as air conditioning and a cabin.

Kompakt 4100 HI LO 1.5

Years of manufacture: 2021—2025

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Kompakt 4100 HI LO 1.5 Steyr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 74 kW

Model series: Kompakt

Back tyres: 480/70 R34

Front tyres: 380/70 R24

Transport length: 4.147 m

Transport width: 1.923 m

Transport height: 2.569 m

Travel speed: 40 km/h

Transmission type: LS

Weight: 3.6 t

Control unit: 2 ew/dw

Steering: h

Engine manuf.: CNH

Engine type: k.A.

Displacement: 3.6 l

Revolutions at max torque: 2300 rpm

Max. torque: 450/1300 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: transmission, three point category, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: Yes

FAQ

What is the weight of Steyr Kompakt 4100 HI LO 1.5?

The weight of Steyr Kompakt 4100 HI LO 1.5 is 3.6 tons.

What is the size of the Steyr Kompakt 4100 HI LO 1.5 4WD tractor?

The size of the Steyr Kompakt 4100 HI LO 1.5 4WD tractor is 1.92 meters in width, 2.59 meters in height, and 4.24 meters in length.

How much is Steyr Kompakt 4100 HI LO 1.5 (2021 - 2024) worth?

The residual value of Steyr Kompakt 4100 HI LO 1.5 depends on machine's individual parameters. Visit LECTURA Valuation to check it.
