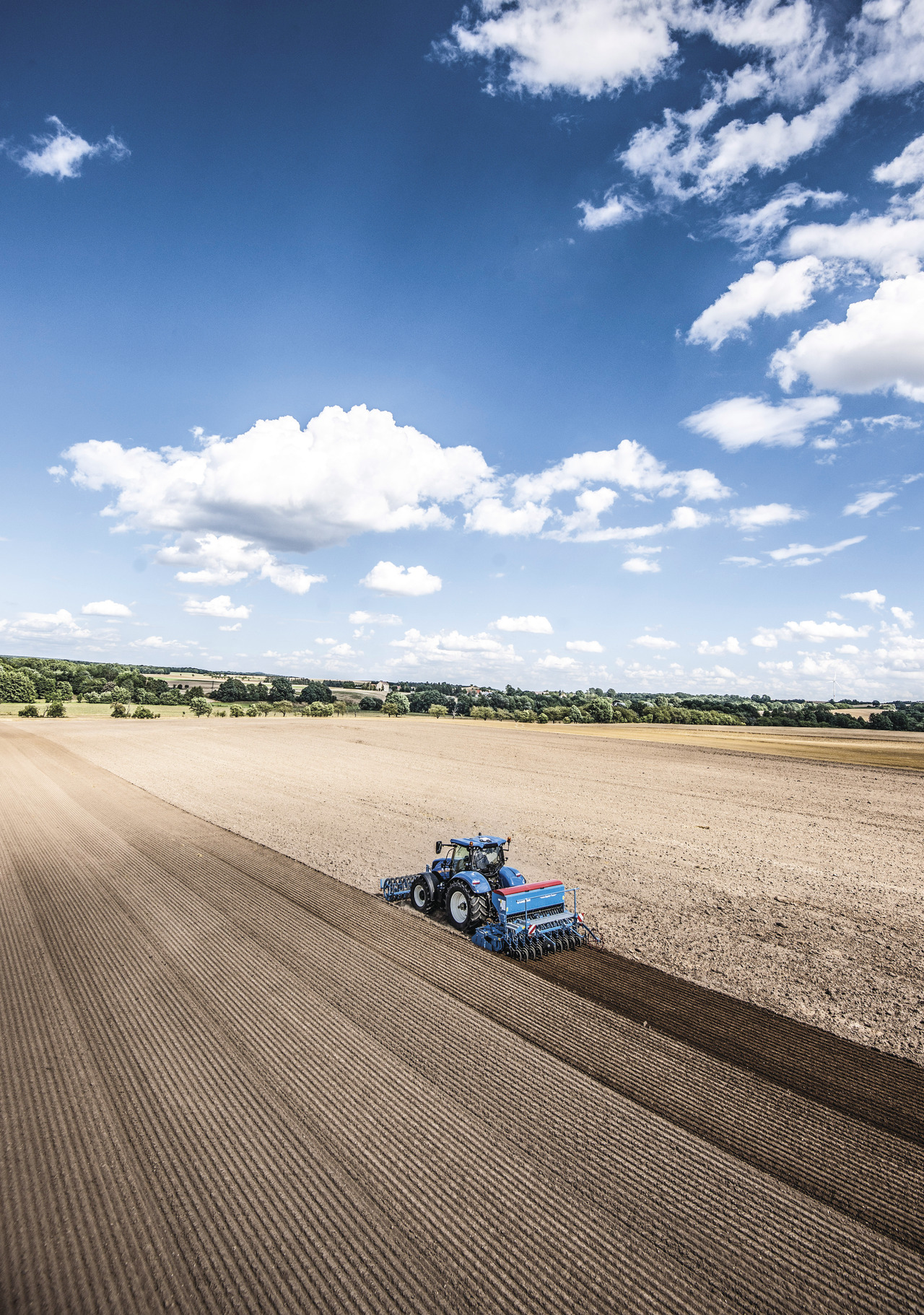

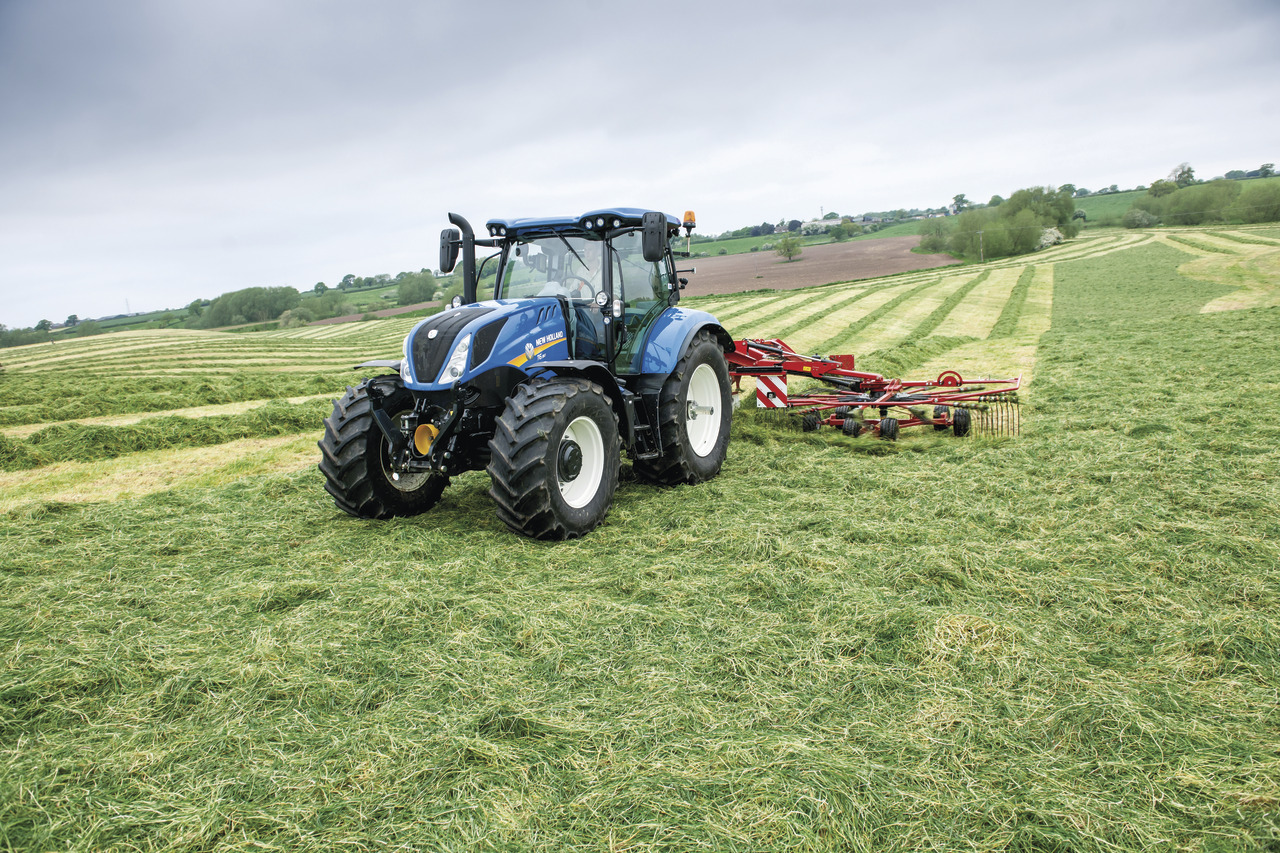

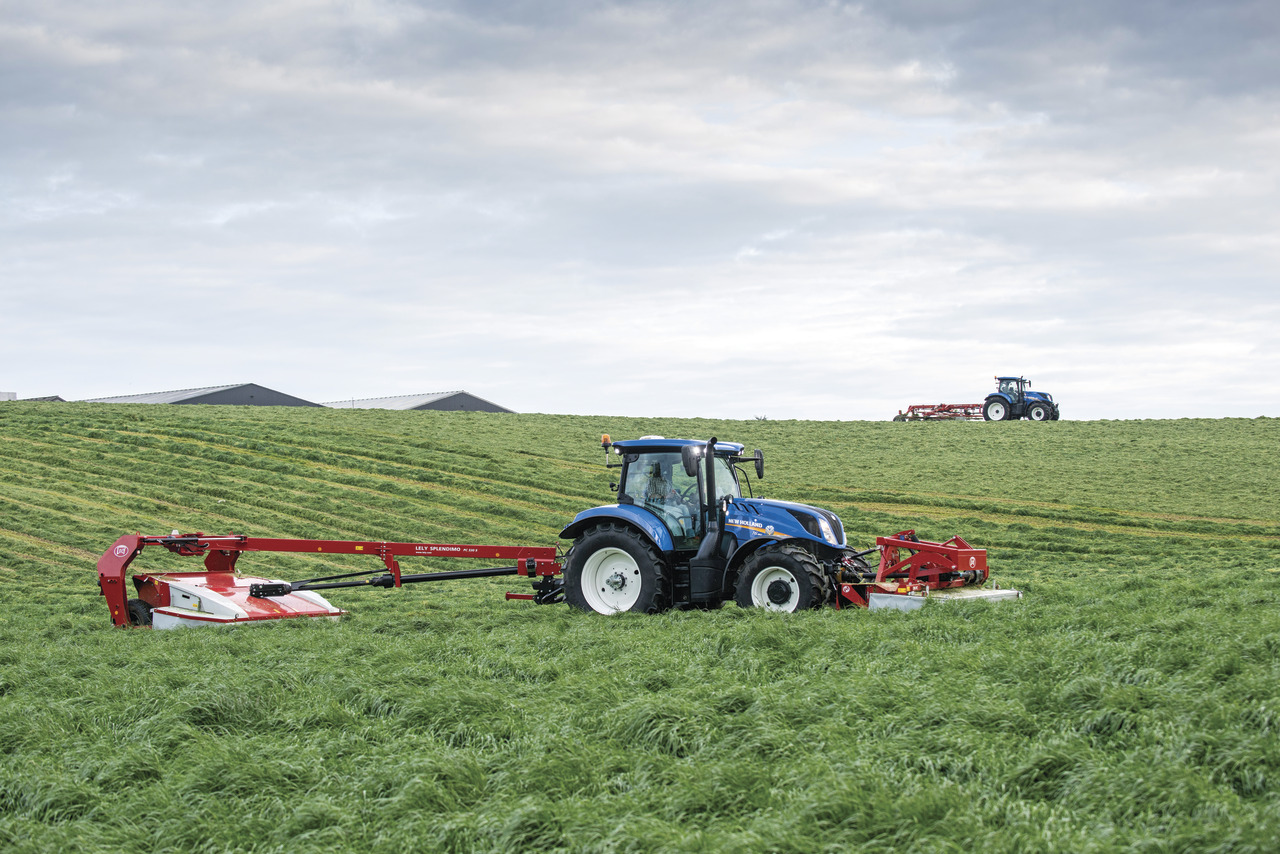

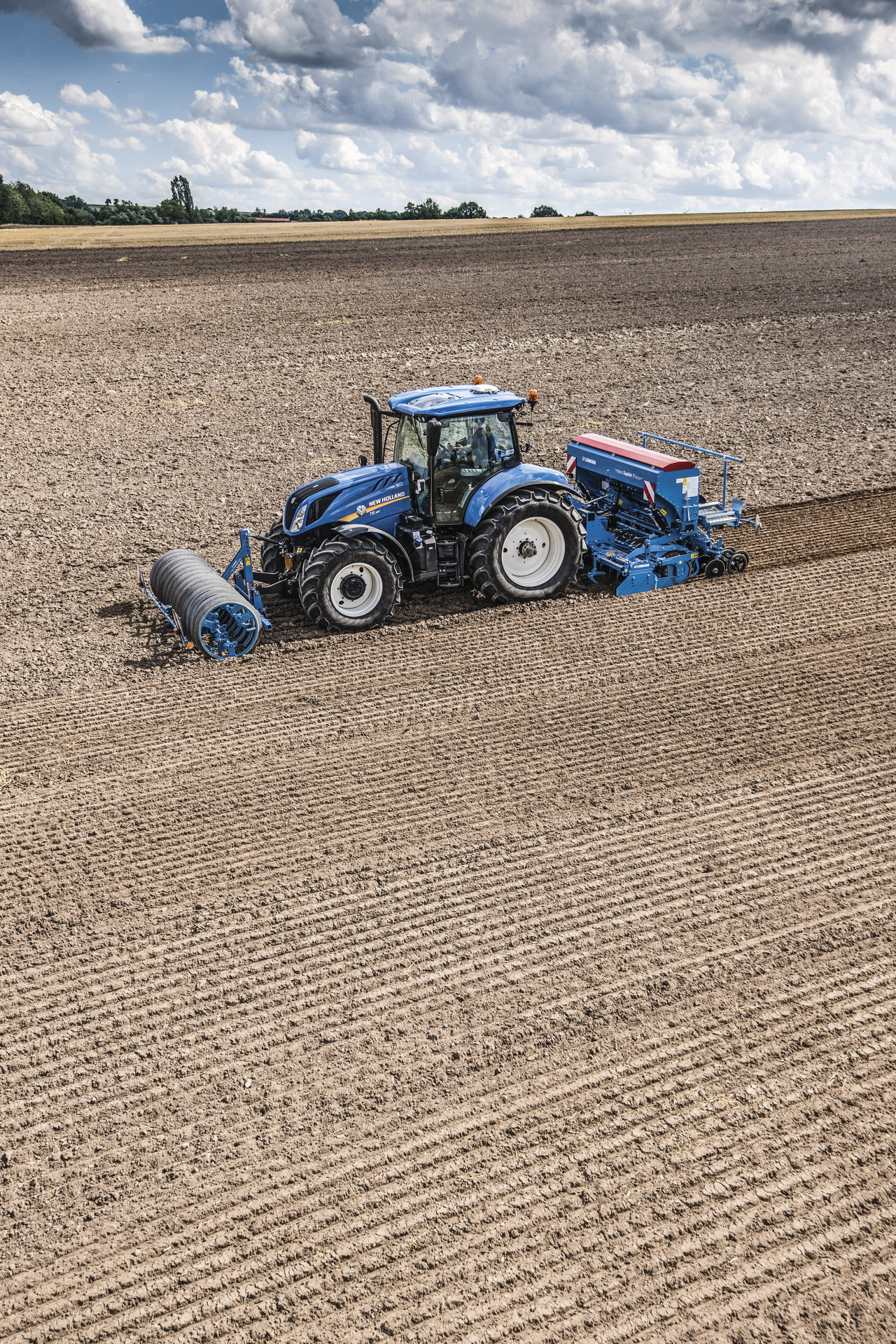

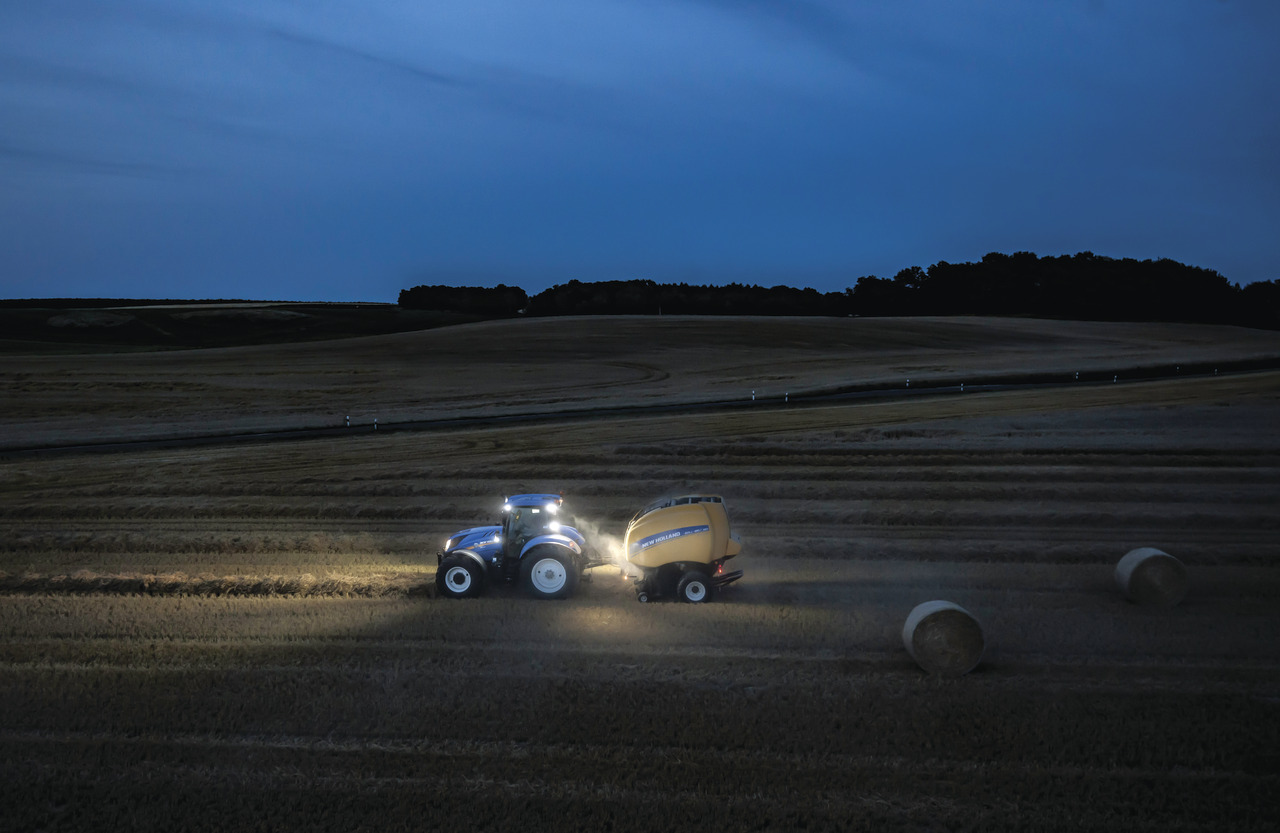

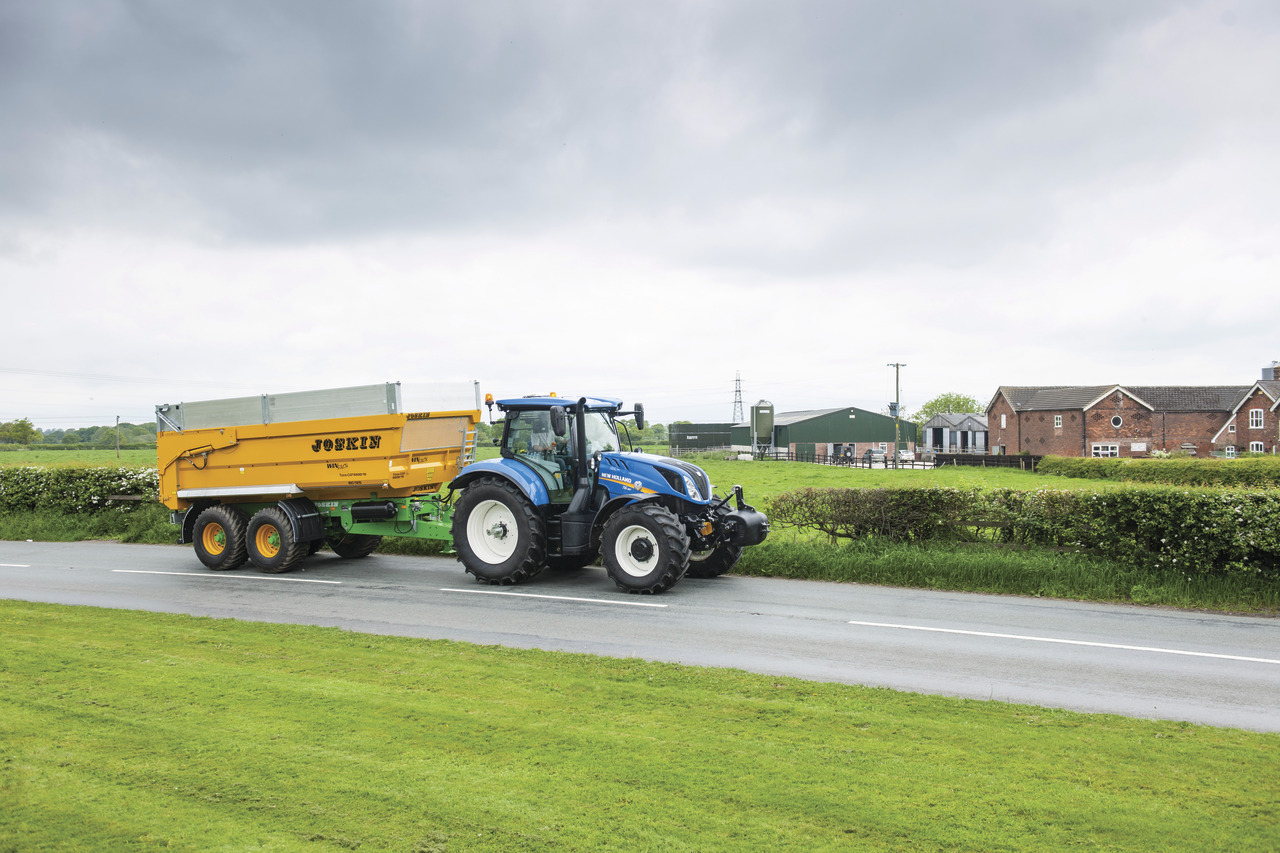

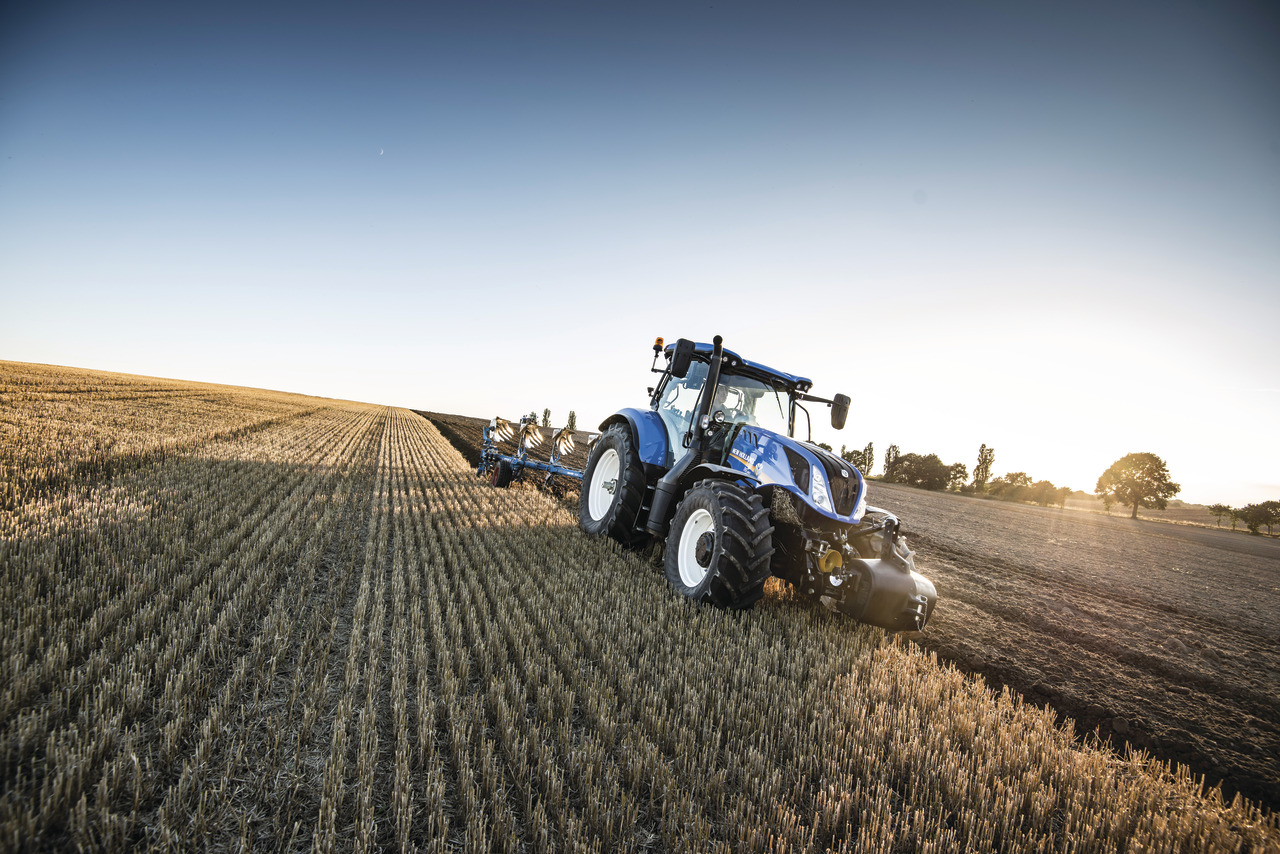

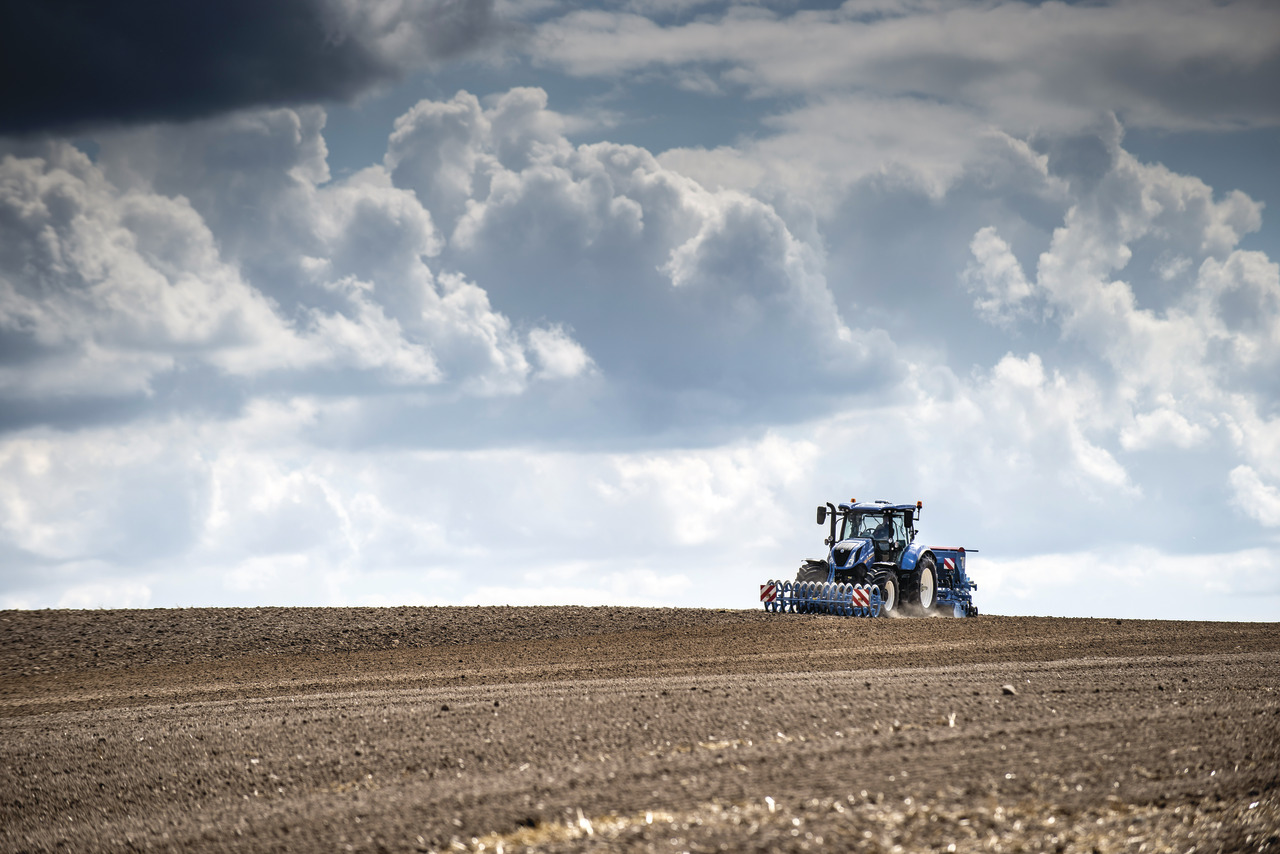

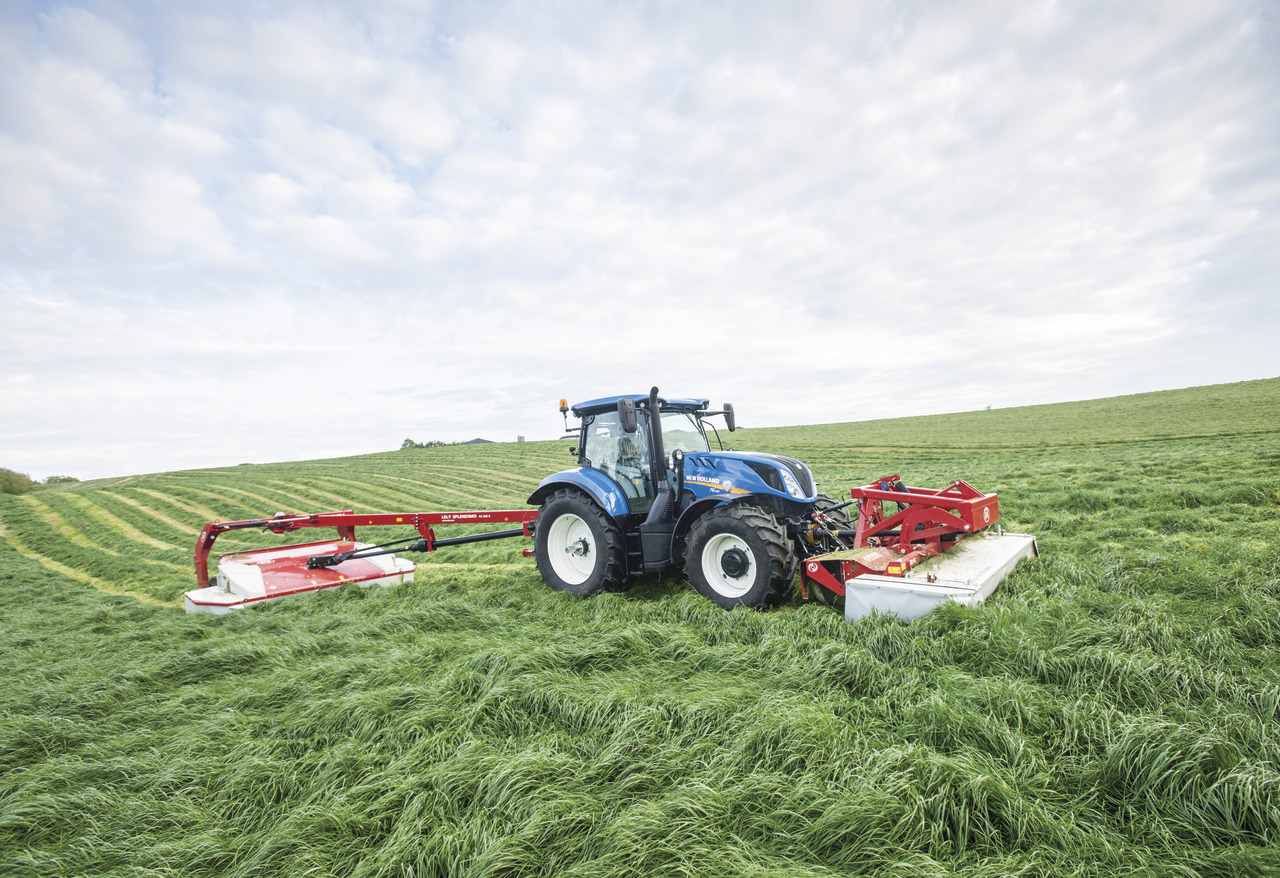

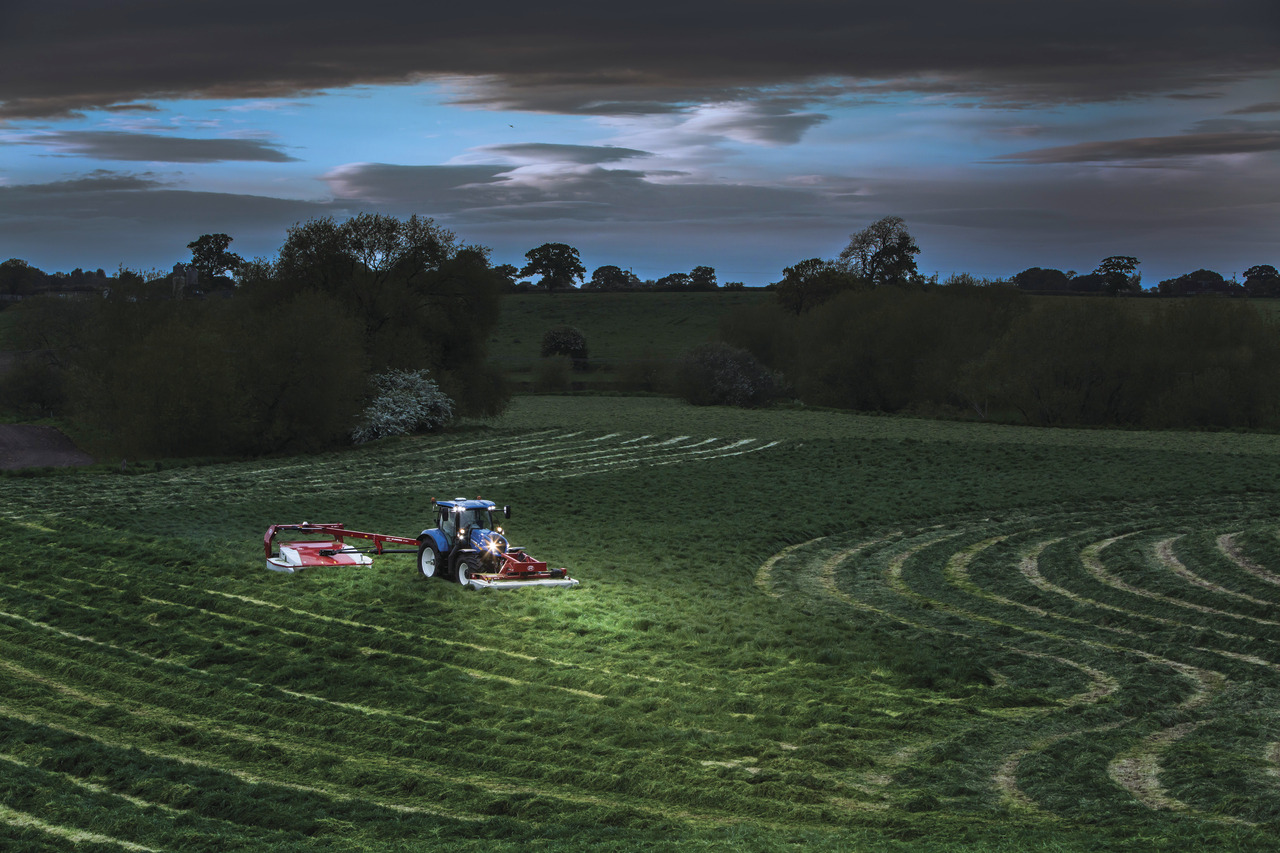

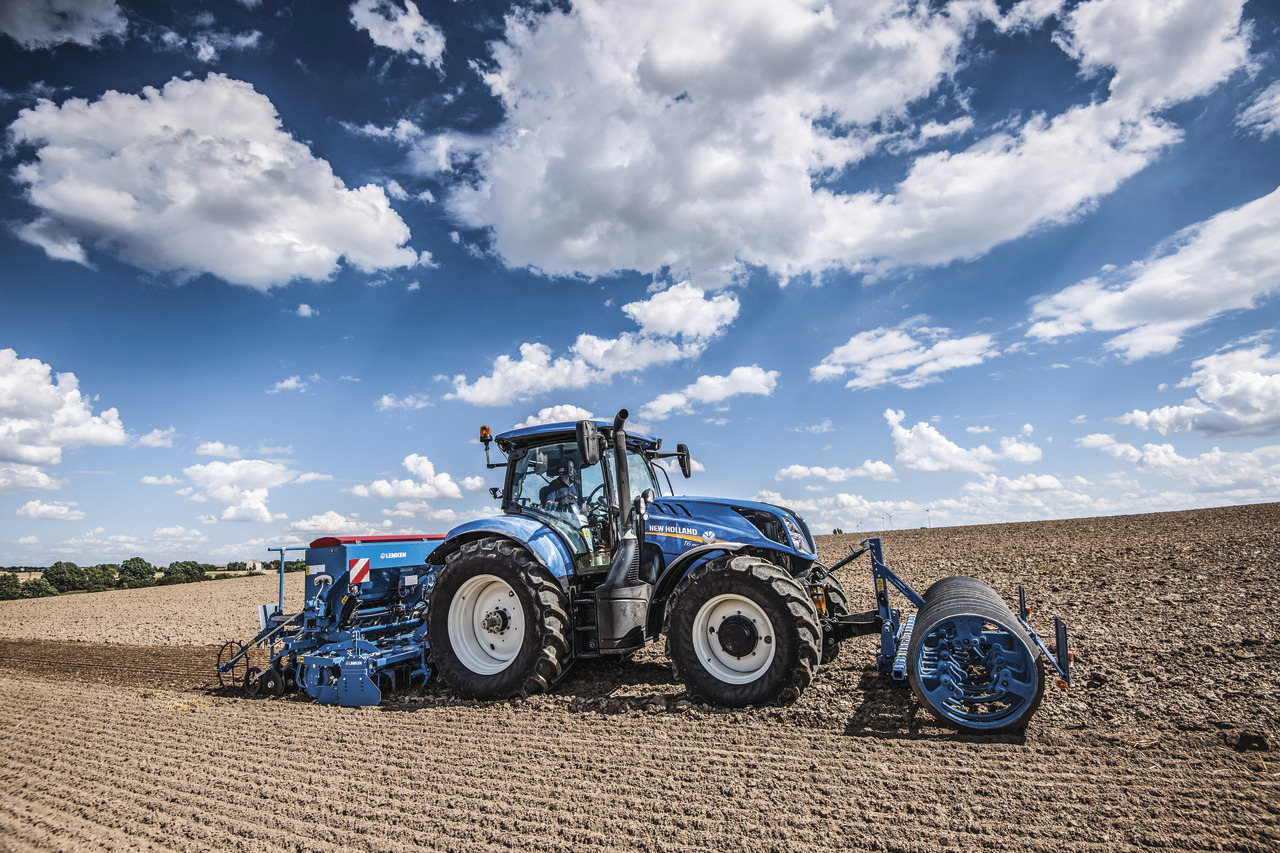

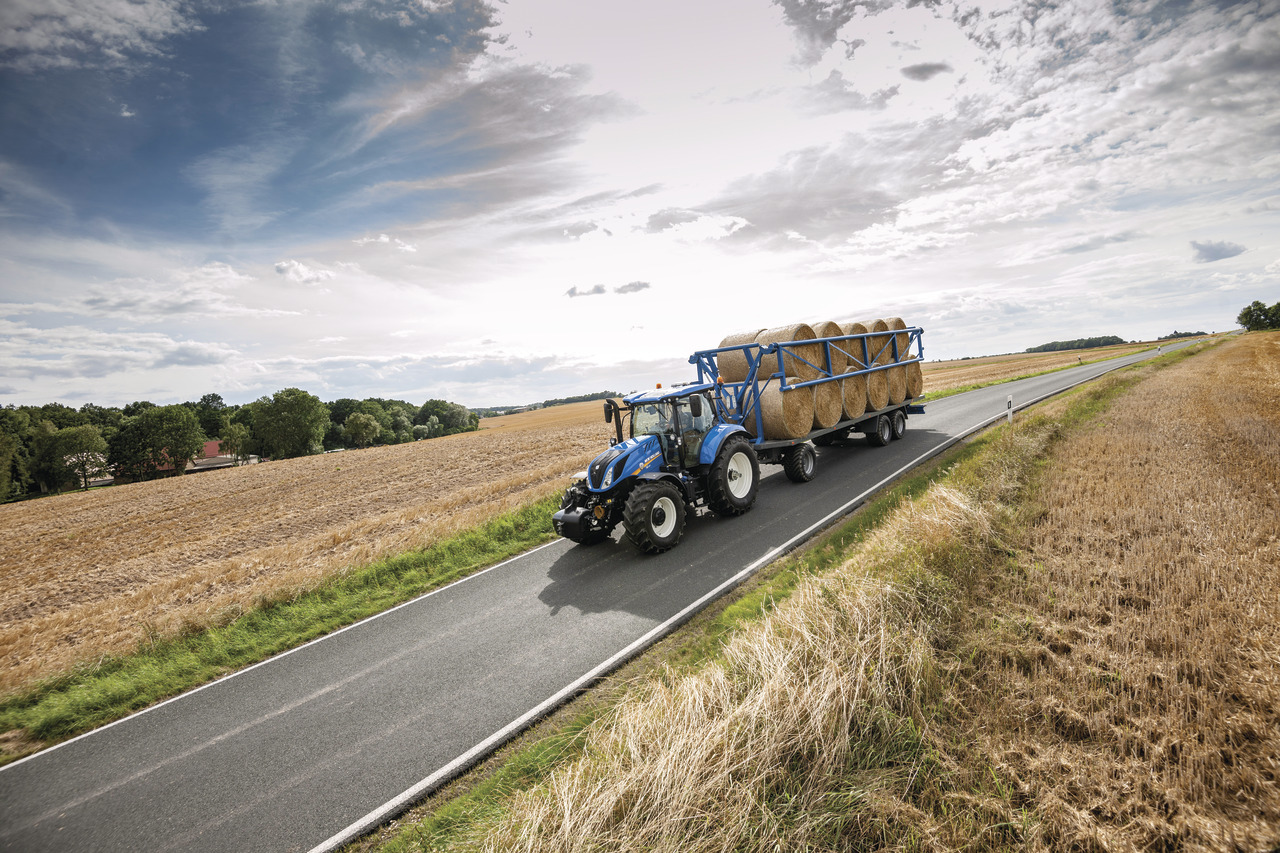

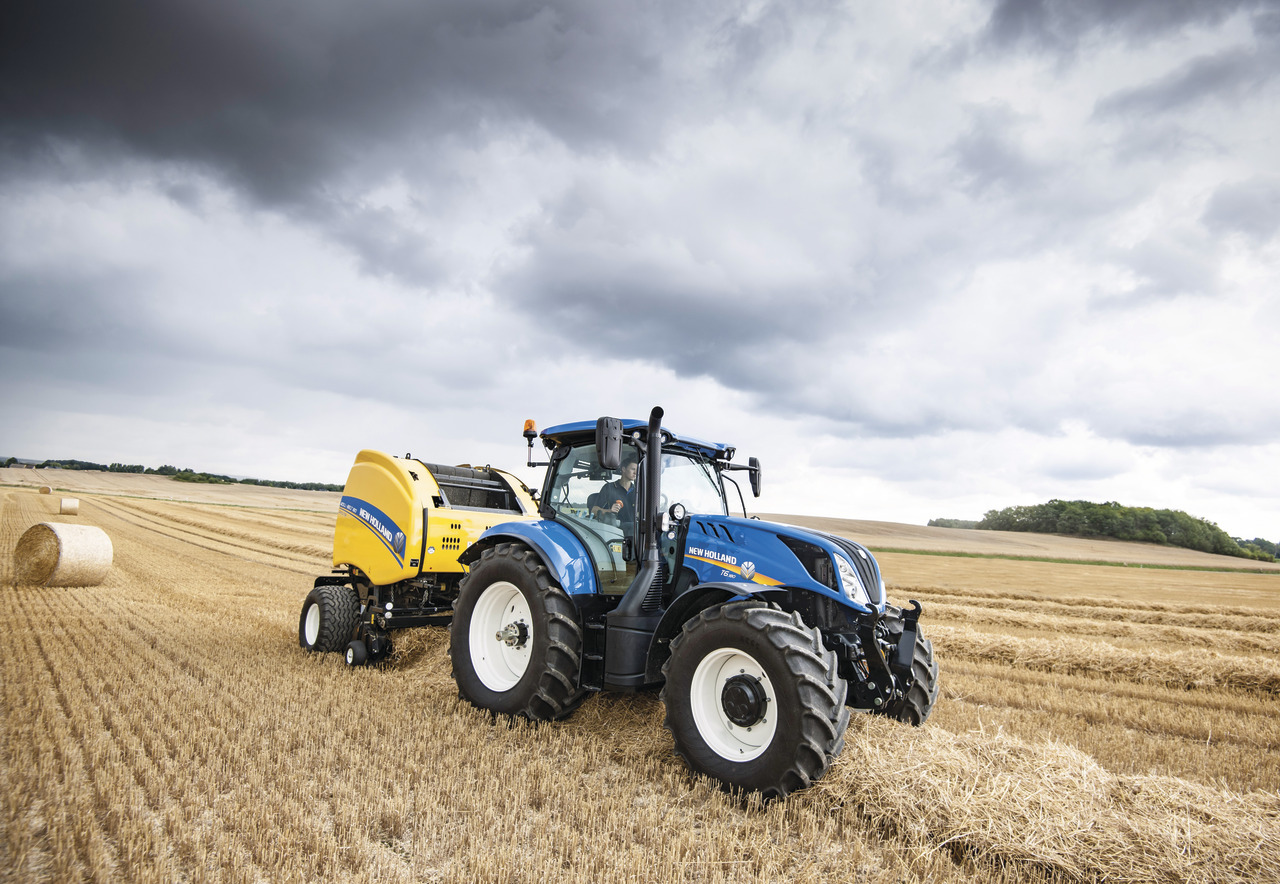

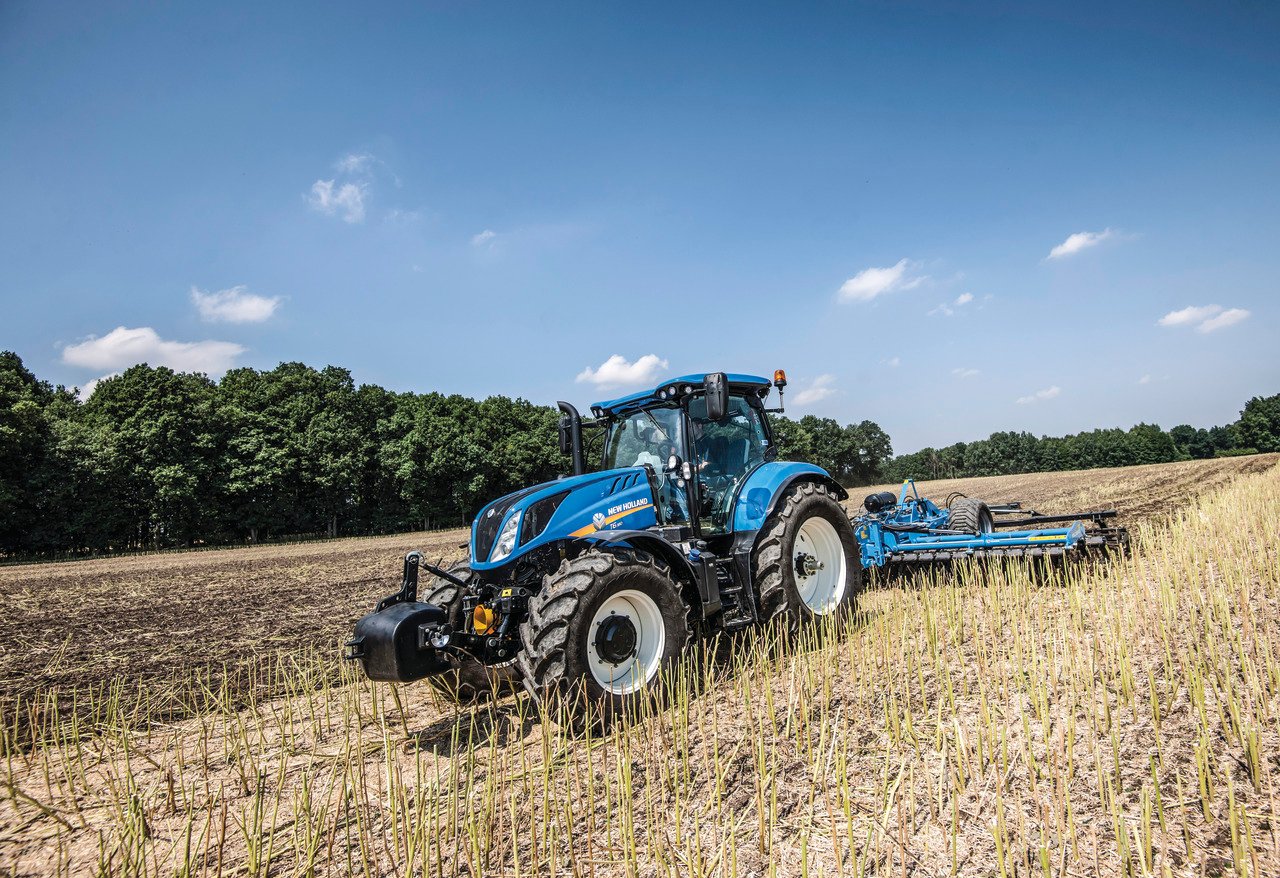

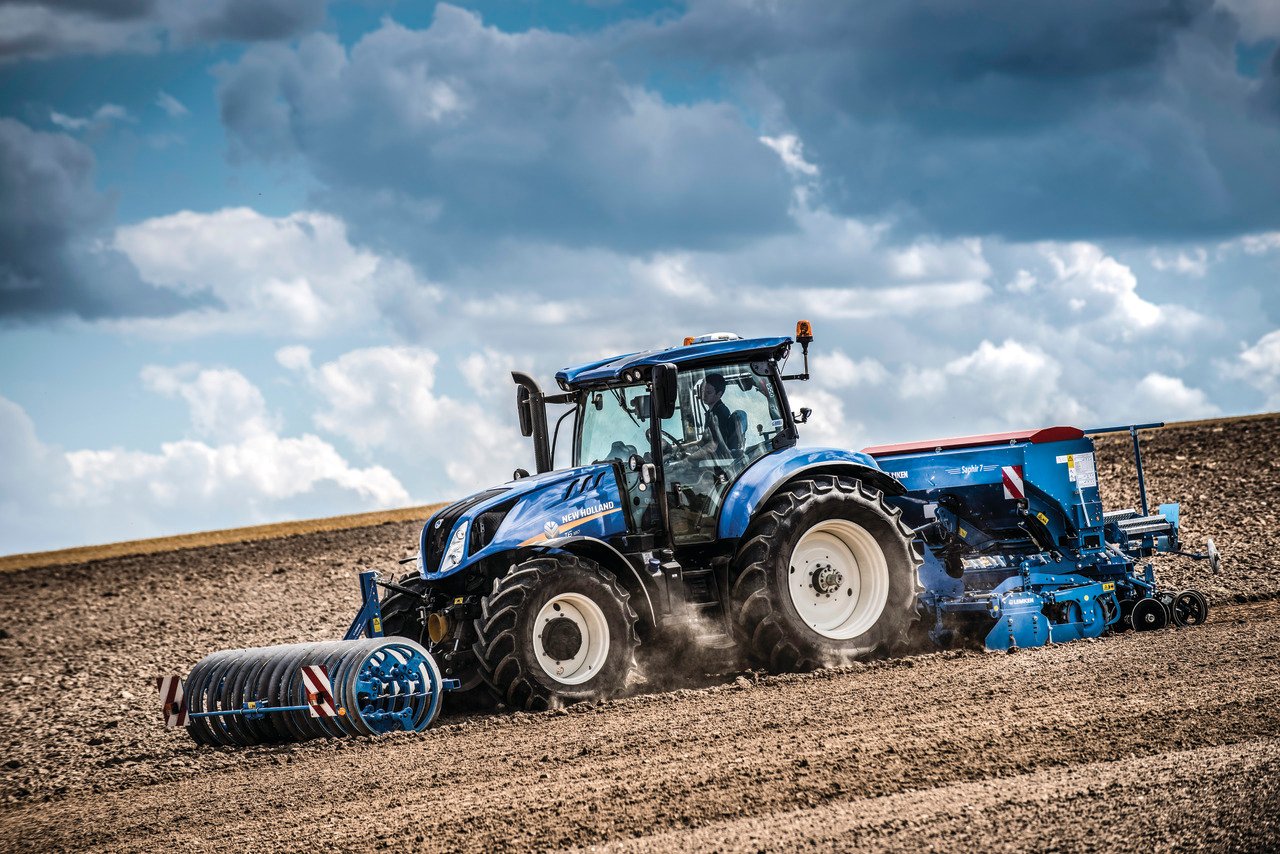

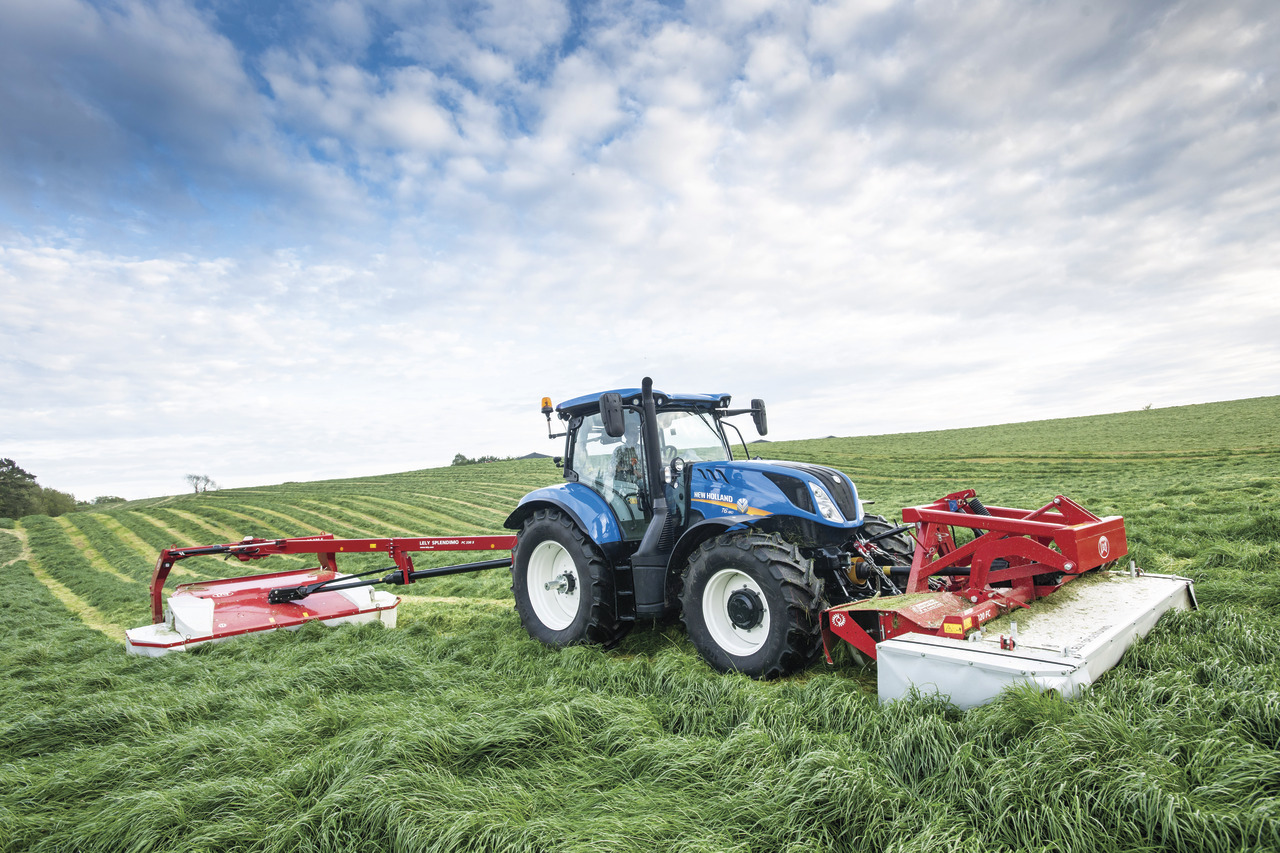

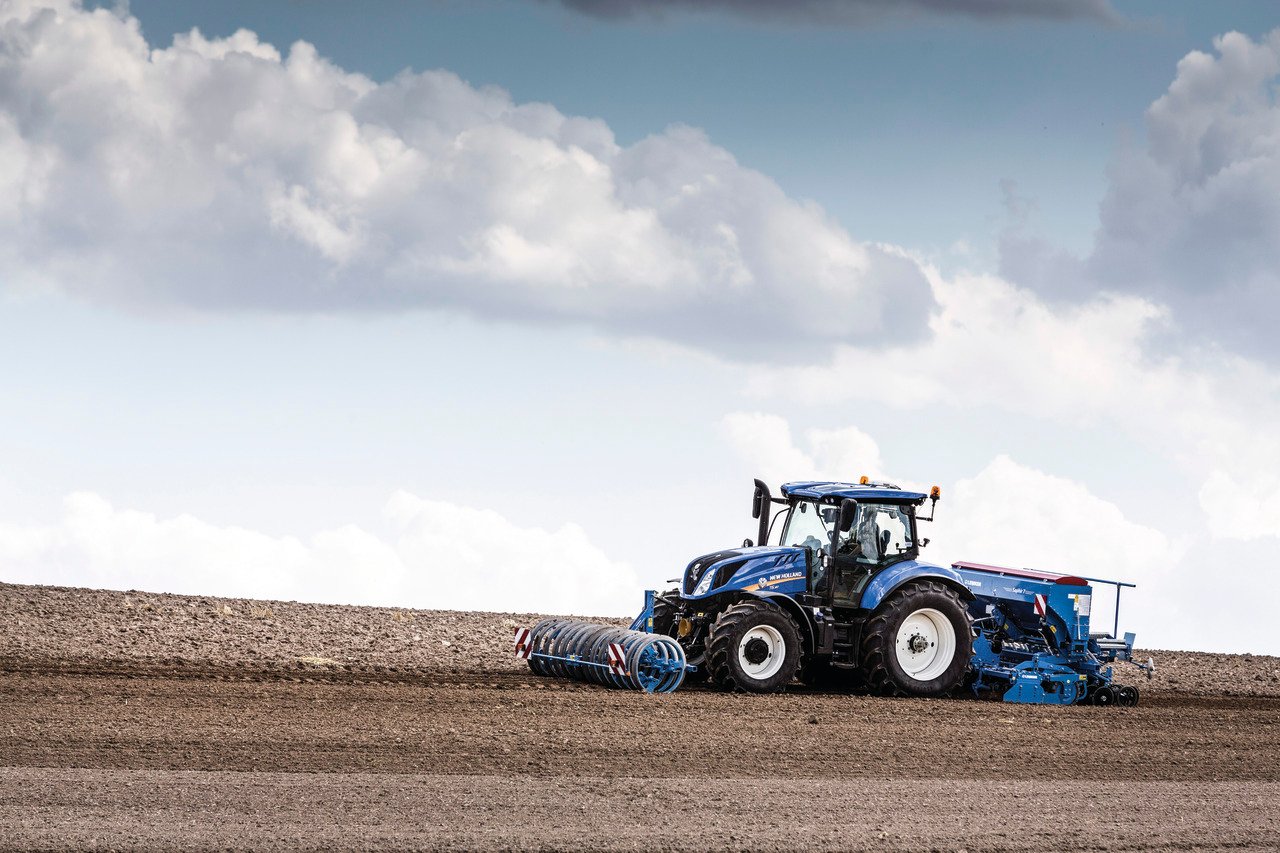

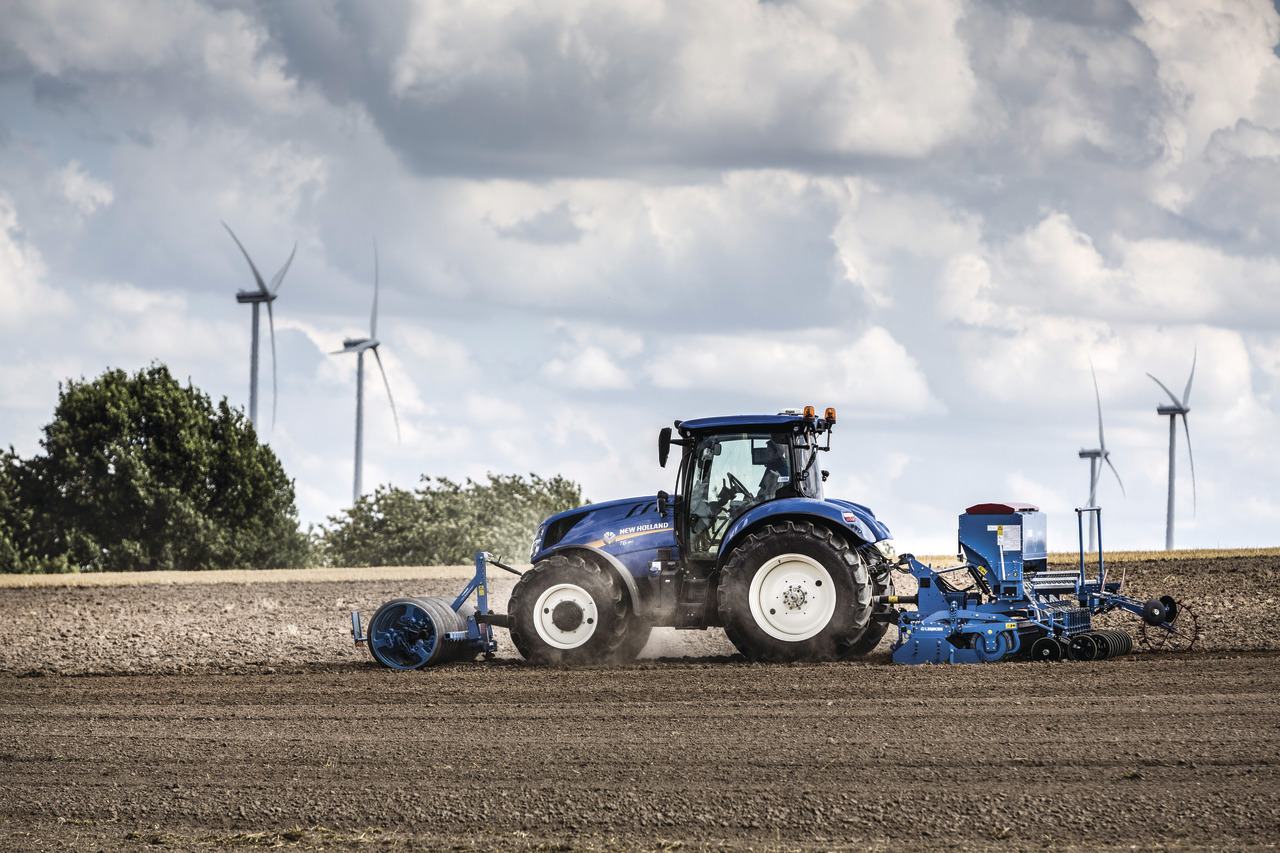

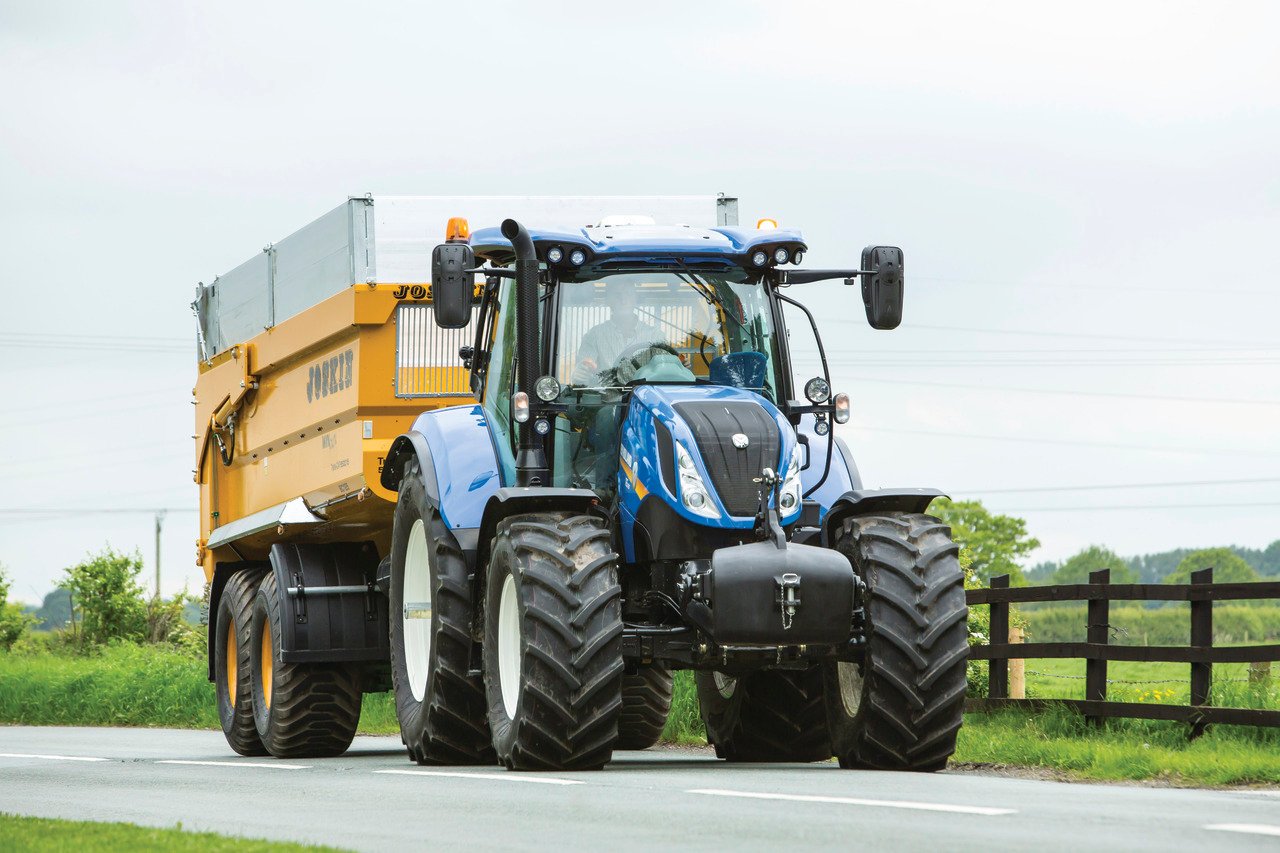

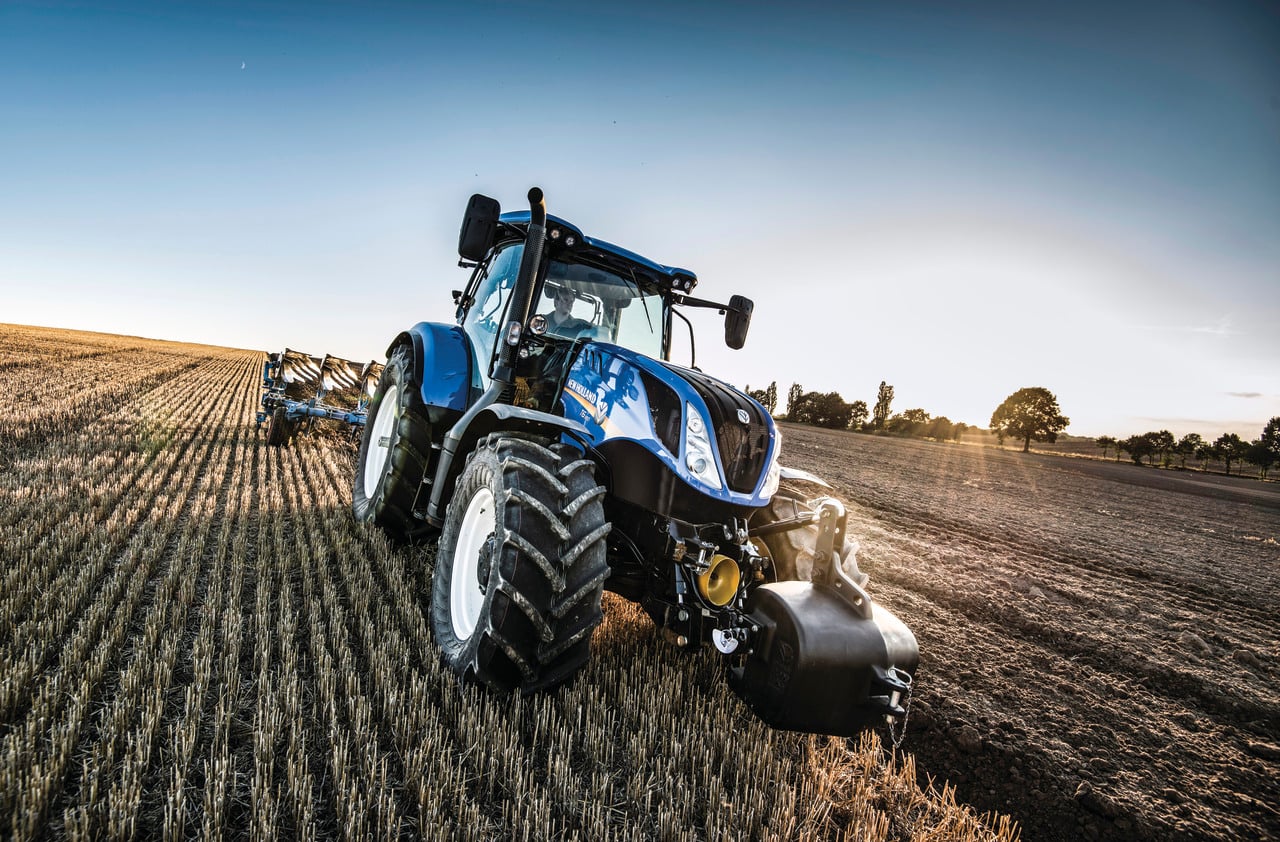

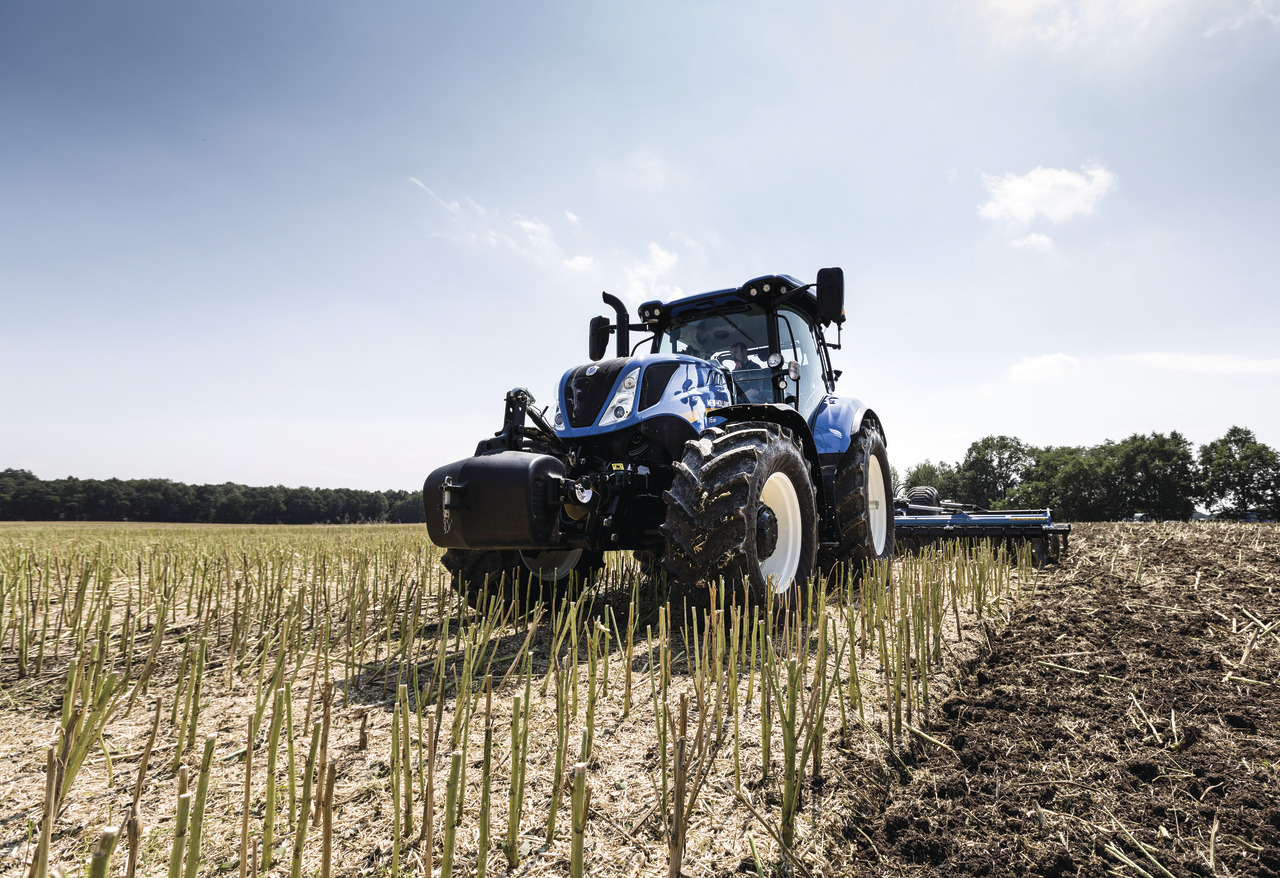

New Holland T6.180 Specifications & Technical Data (2016-2020)

Rate this machine now!

New Holland is the manufacturer of the 4wd tractor model T 6.180. Find and download detailed specs and data sheets for this machin... Read more

New Holland is the manufacturer of the 4wd tractor model T 6.180. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful FPT engine, this T 6.180 5.67t machine can provide 116kW or 155 horse power for the 4wd tractor. The T 6.180 is categorised in the biggest machine segment in the 4wd tractors category. The T 6.180’s size is 2.34m x 4.51m x 2.15m.

The New Holland T 6.180 has been equipped and sold with Aircondition, Air brakes and Cabin. It has been sold without air Front PTO, ISO Bus and Front hydraulics as of 2017. There are more detailed specifications and machine descriptions available in the original New Holland T 6.180 specs data sheet.

This model can be acquired for a list price between €92000 and €117000. Production of the T 6.180 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 168 other 4wd tractors, which range from 35kW up to 410kW are produced by New Holland. Of these, T 4.85, T 7.230 and also TD 4020 F are the most frequently visited on LECTURA Specs. This T 6.180 4wd tractor, which has been in production between 2016 and 2017 ranks in the LECTURA index at #1133. Currently, 168 models of the T 6.180 4wd tractor exist, at an average sale value of €113200 at 1 years of age. Want more detailed specifications? Download the latest New Holland T 6.180 specs data sheet on LECTURA Specs today!

Technical specs - T6.180 New Holland


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 116 kW
  • Model series T6
  • Back tyres 600/65 R38
  • Front tyres 480/65 R28
  • Transport length 4.51 m
  • Transport width 2.34 m
  • Transport height 2.15 m
  • Travel speed 40 km/h
  • Transmission 16/16
  • Transmission type TLS
  • Weight 5.67 t
  • Control unit -/3 ew/dw
  • Steering h
  • Engine manuf. FPT
  • Engine type NEF
  • Displacement 6.75 l
  • Revolutions at max torque 1500 rpm
  • Max. torque 650 Nm
  • No. of cylinders 6
  • Cylinder bore x stroke 104x132 mm
  • Emission level Tier 4b/ Stufe 4

More technical details, like: average fuel consumption, fuel consumption range (min - max), three point category, dimension lxwxh are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • Air brakes
  • ISO Bus
  • Aircondition
