New Holland T6.175 Specifications & Technical Data (2018-2020)
New Holland is the manufacturer of the 4wd tractor model T 6.175. Find and download detailed specs and data sheets for this machin... Read more
New Holland is the manufacturer of the 4wd tractor model T 6.175. Find and download detailed specs and data sheets for this machine here.

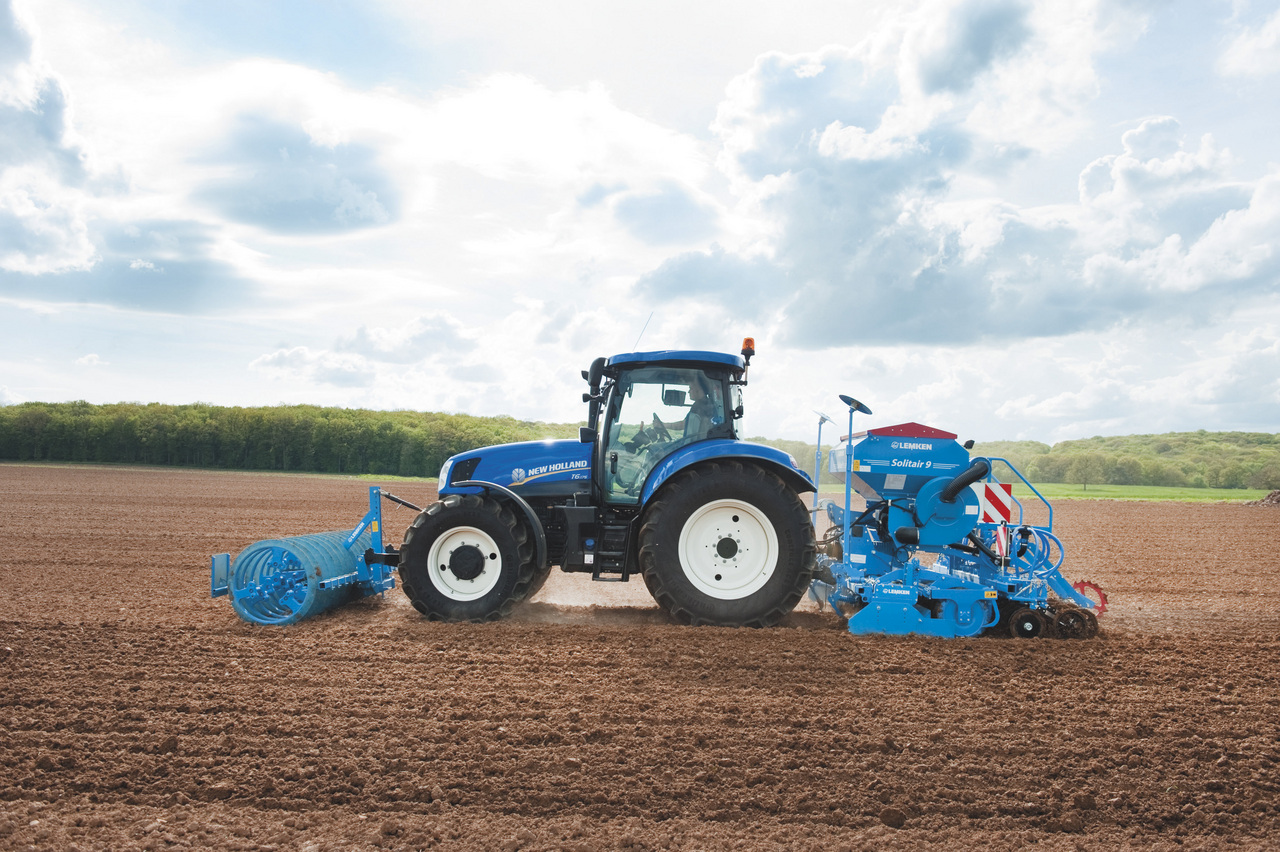

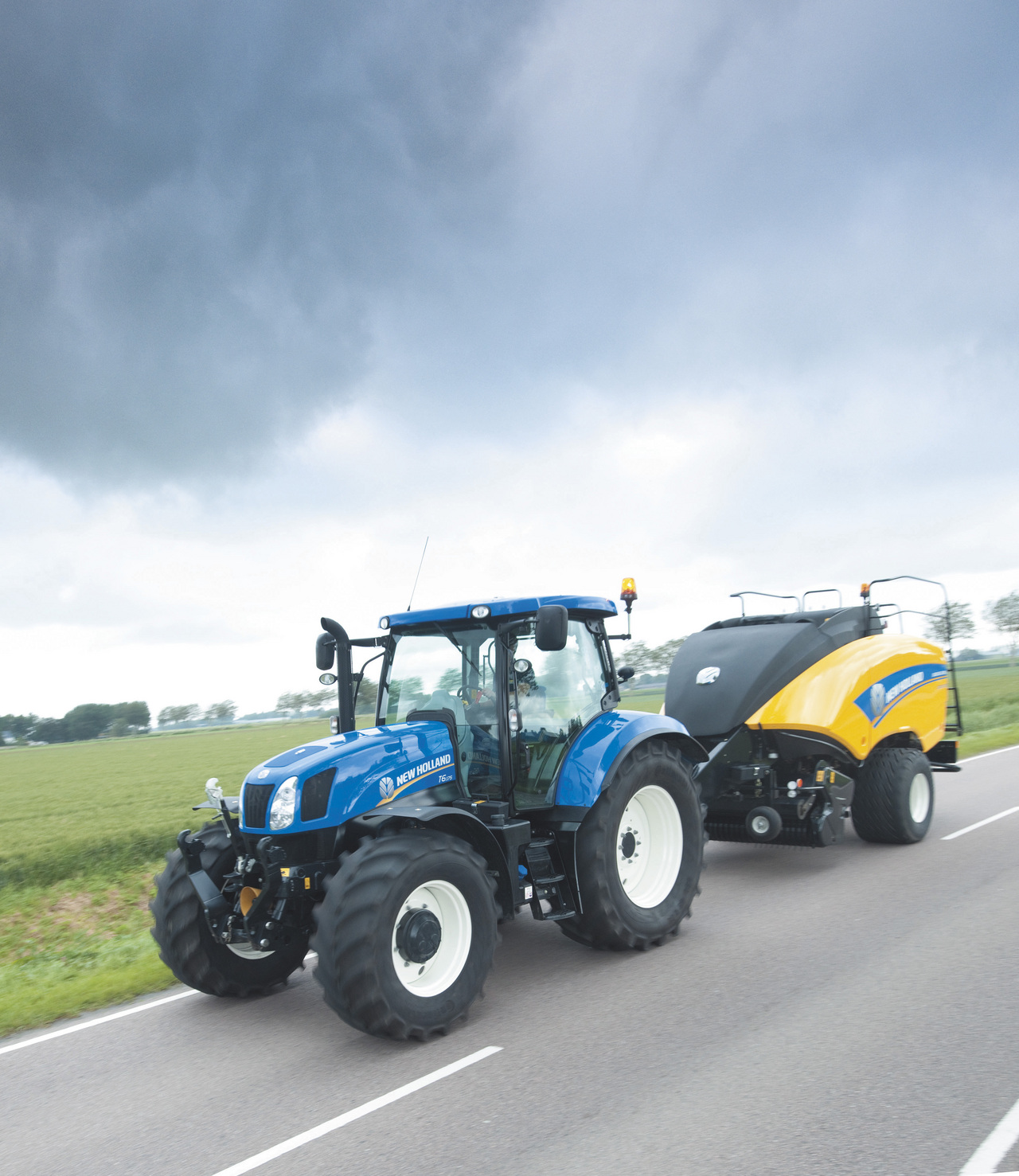

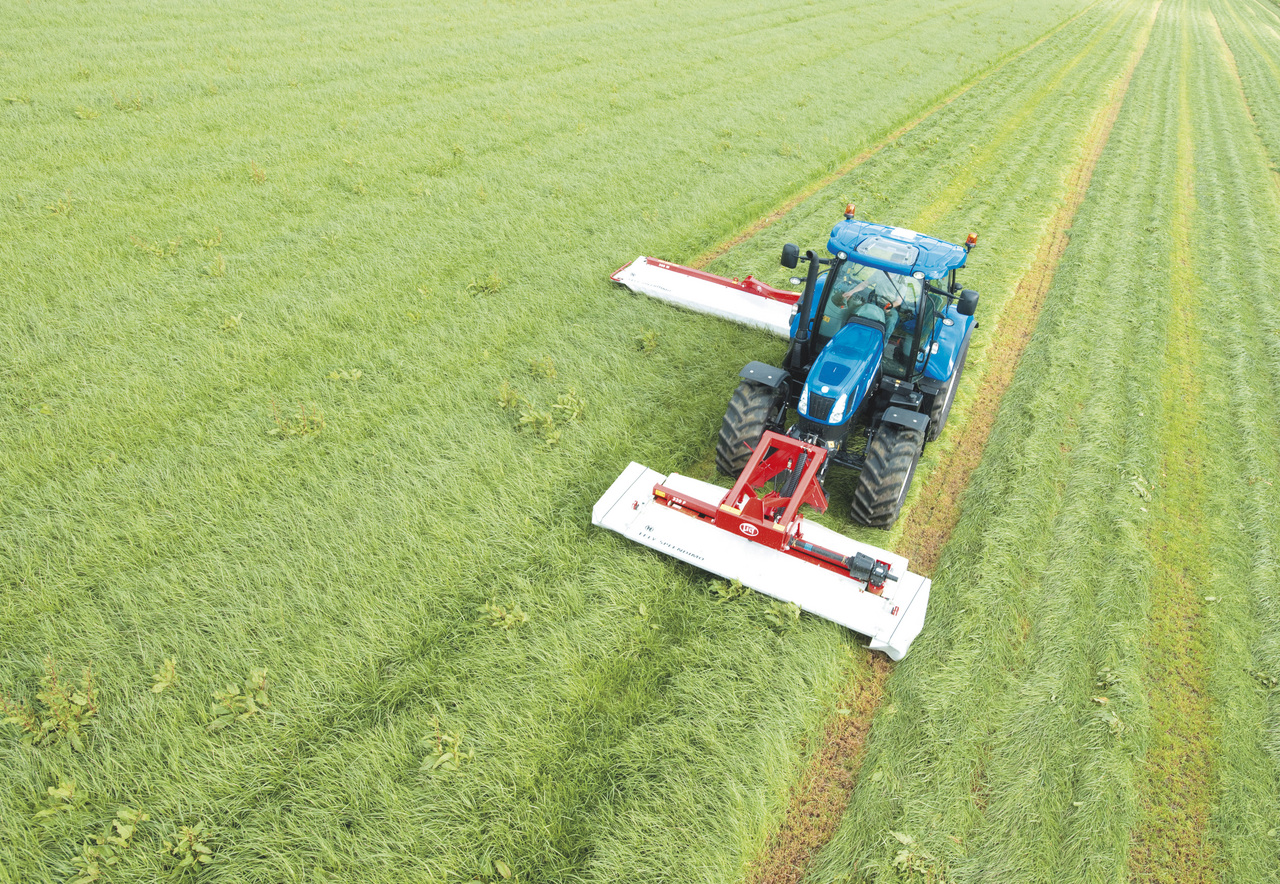

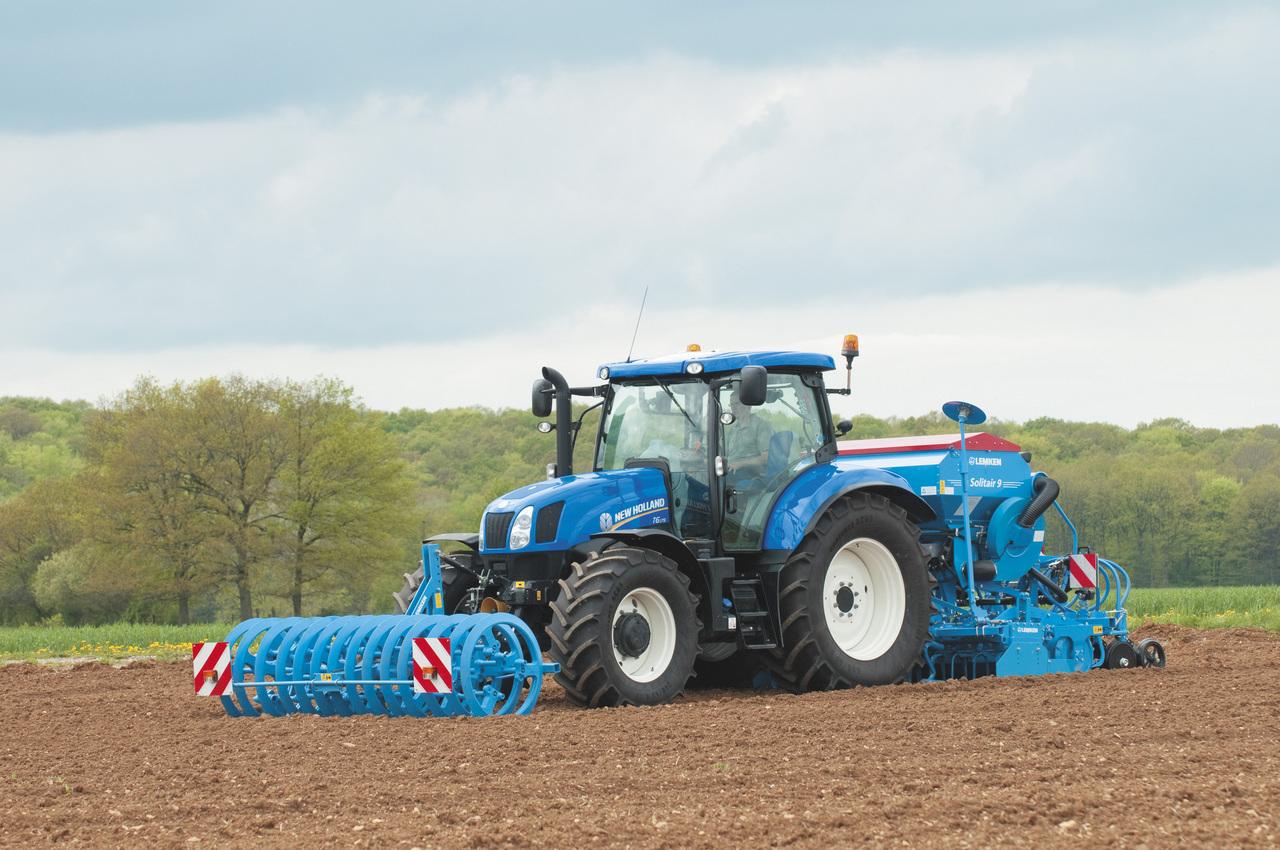

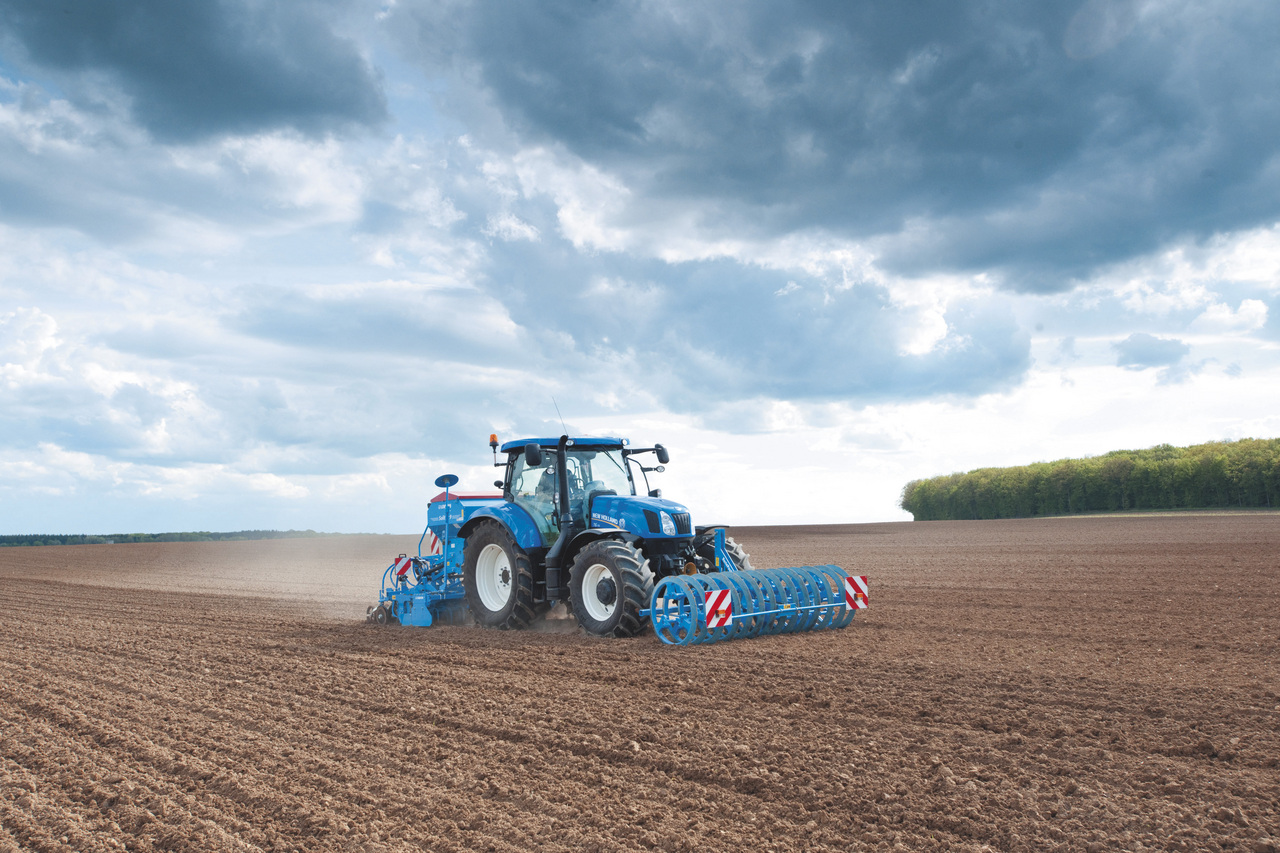

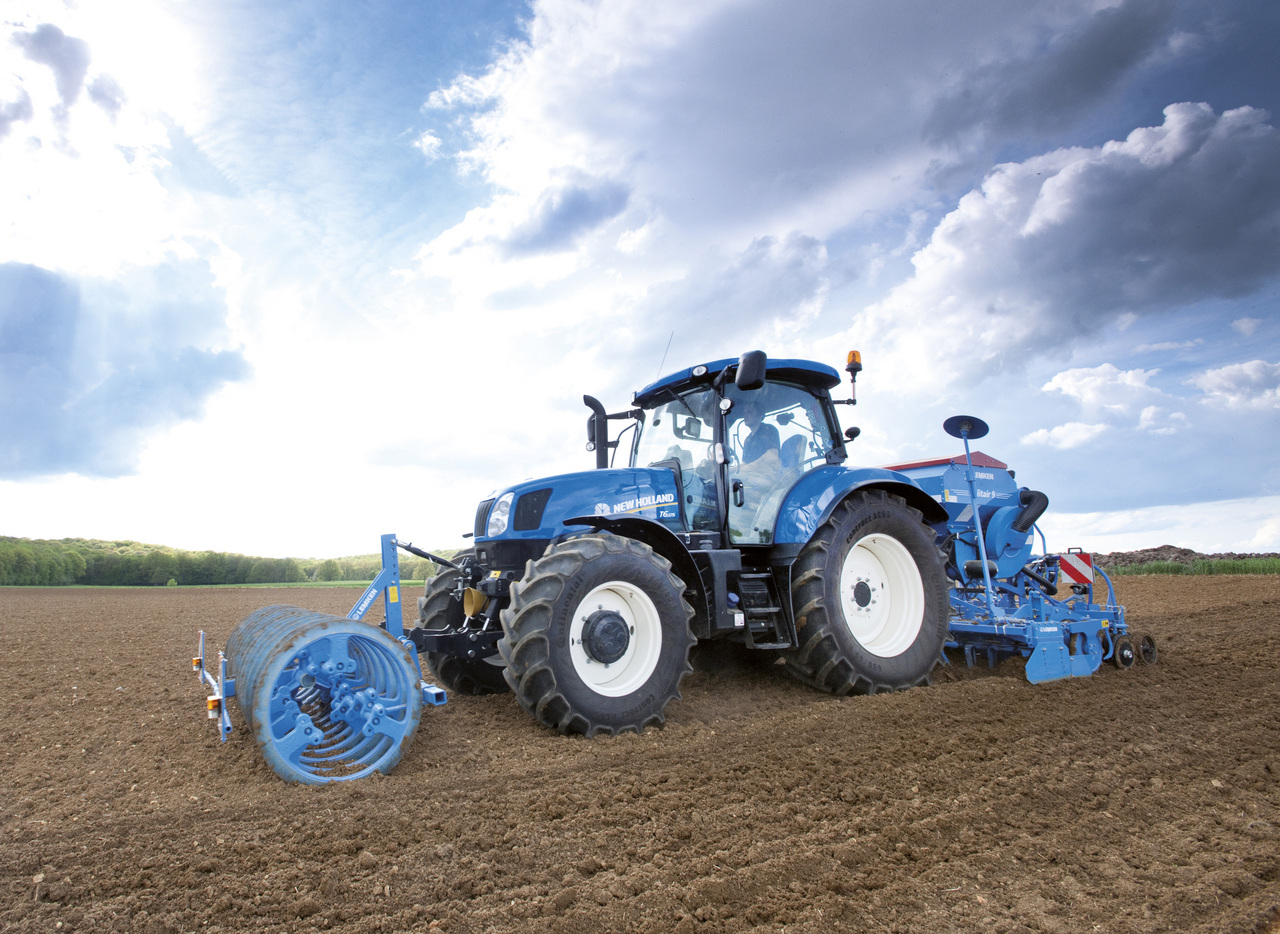

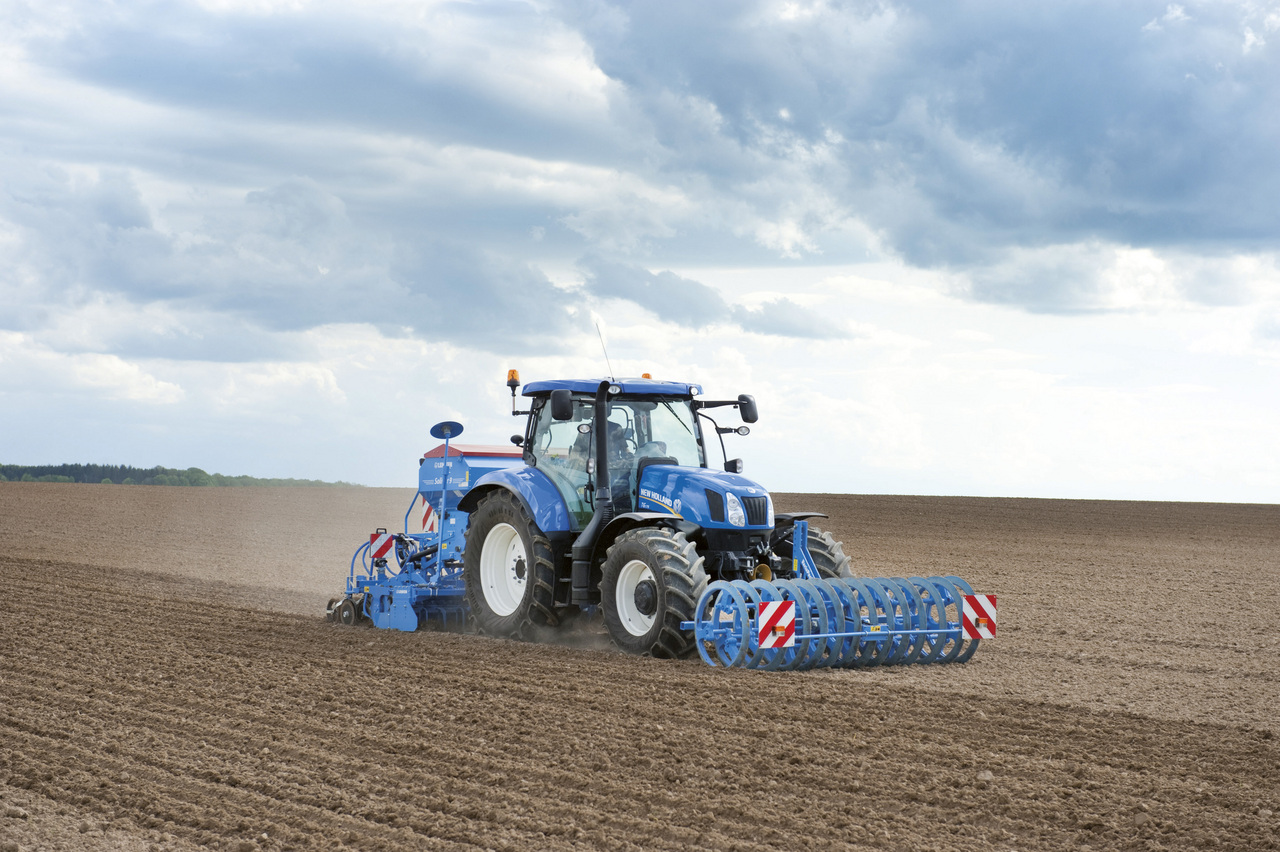

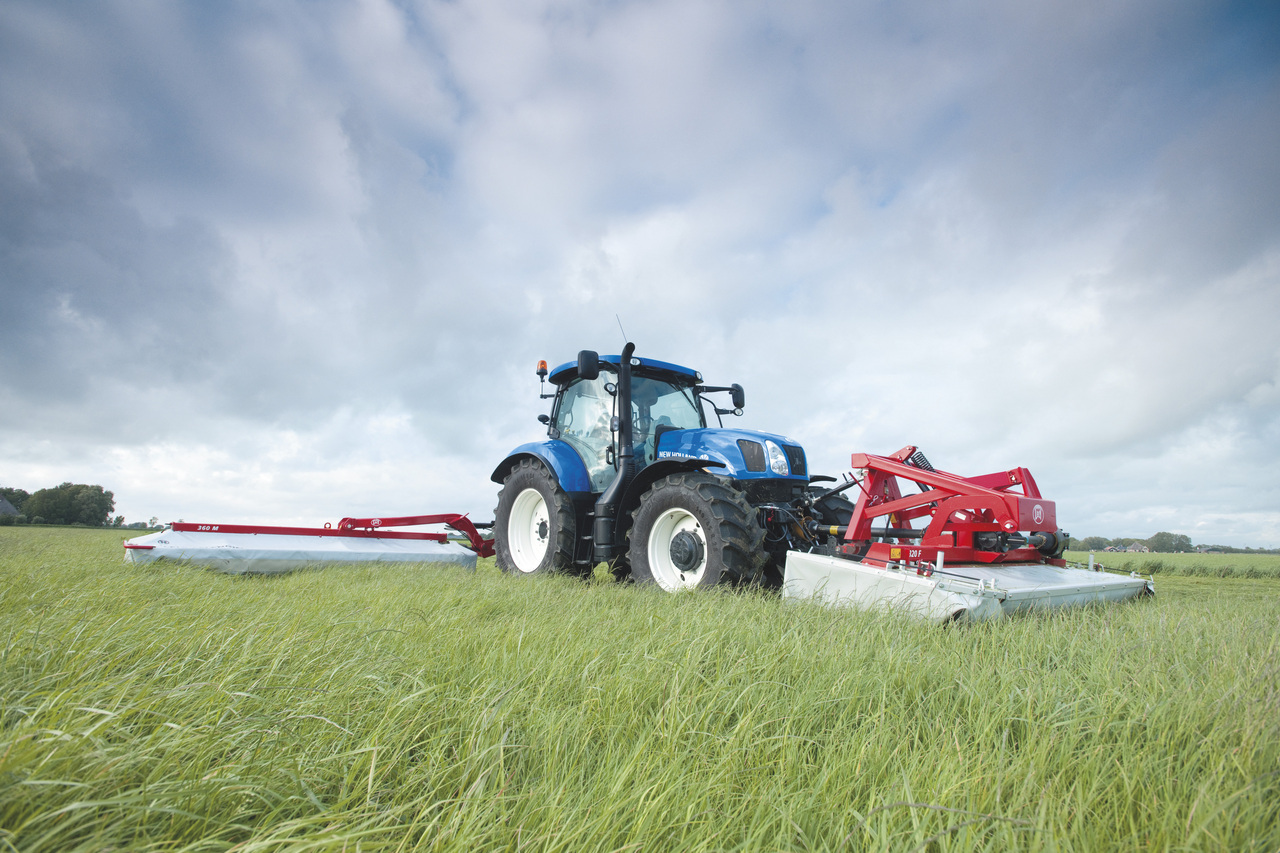

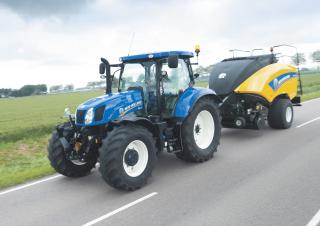

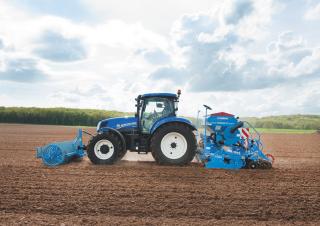

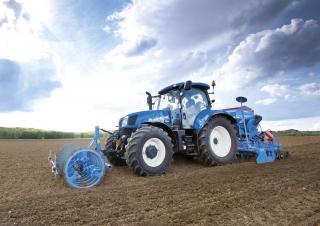

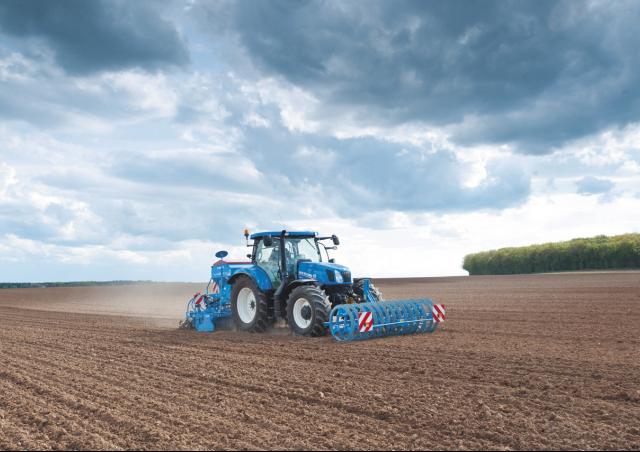

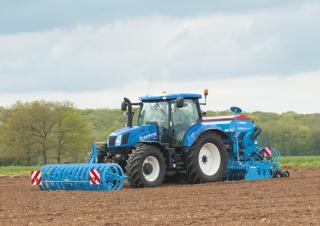

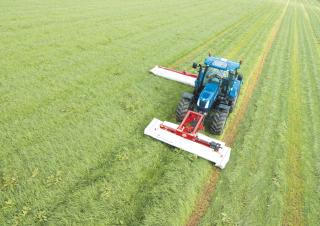

The New Holland T 6.175 is a 5.67t machine with FPT engine which powers this model with up to 116kW or 155 horse power. The New Holland T 6.175 can be grouped in the biggest machine segment in the 4wd tractors category. The T 6.175’s size is 2.34m x 4.51m x 2.15m.
The New Holland T 6.175 has been equipped and sold with Air brakes, Cabin and Aircondition. Front hydraulics, Front PTO and ISO Bus are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original New Holland T 6.175 specs data sheet.
The most commonly viewed New Holland models of this type on LECTURA Specs are the TD 4020 F, T 7.230 and T 4.85, and 168 other 4wd tractors, which currently range from 35kW up to 410kW are also available. Want more detailed specifications? Download the latest New Holland T 6.175 specs data sheet on LECTURA Specs today!
Technical specs - T6.175 New Holland
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Engine power 114 kW
- Model series T6
- Back tyres 600/65 R 38
- Front tyres 480/65 R 28
- Transport length 4.51 m
- Transport width 2.34 m
- Transport height 2.15 m
- Travel speed 40 km/h
- Transmission 24/24
- Transmission type TLS
- Weight 5.46 t
- Control unit -/3 ew/dw
- Steering h
- Engine manuf. FPT
- Engine type NEF
- Displacement 4.5 l
- Revolutions at max torque 1500 rpm
- Max. torque 650 Nm
- No. of cylinders 4
- Cylinder bore x stroke 104x132 mm
- Emission level Tier 4b/ Stufe 4
More technical details, like: average fuel consumption, fuel consumption range (min - max), three point category, dimension lxwxh are available in the full technical specs.
is a 0 for the size specification so that means, that no information is available.
- Front hydraulics
- Front PTO
- Air brakes
- ISO Bus
