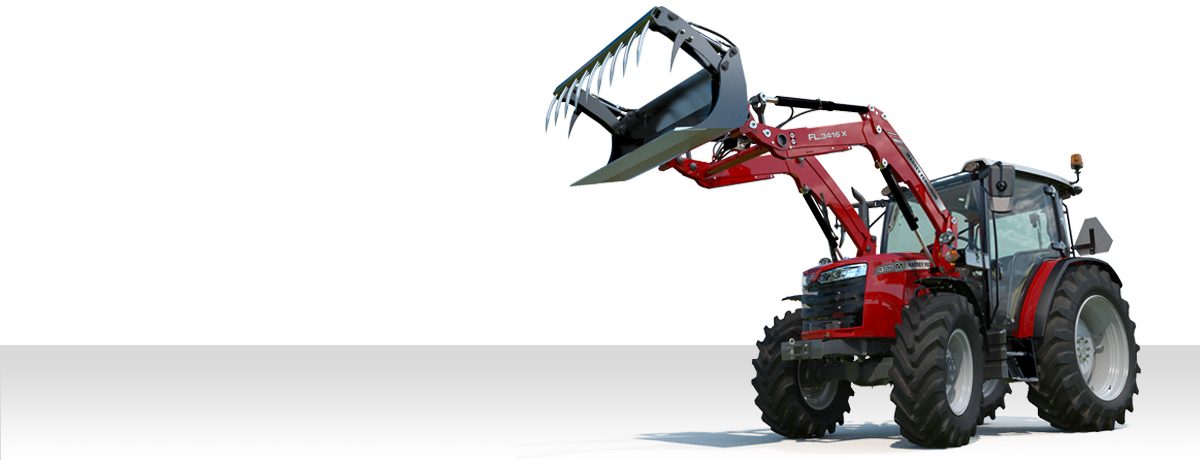

    Massey Ferguson MF 4709 M Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Engine power: 67.7kW – Back tyres: 420/85 R34 – Front tyres: 340/85 R24 – Transport length: 4.067m – Transport width: 1.925m – Transport height: 2.537m

    Technical specs - MF 4709 M Massey Ferguson

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Engine power 67.7 kW
    Back tyres 420/85 R34
    Front tyres 340/85 R24
    Transport length 4.067 m
    Transport width 1.925 m
    Transport height 2.537 m
    Travel speed 40 km/h
    Transmission 12/12
    Transmission type m
    Weight 3.9 t
    Control unit -/2 ew/dw
    Steering h
    three point category 2
    Engine manuf. AGCO
    Engine type AB 33 AWIC
    Engine power 92 HP
    Displacement 3.3 l
    Revolutions at max torque 1600 rpm
    No. of cylinders 3
    Emission level V

    is a 0 for the size specification so that means, that no information is available.

    MF 4709 M Massey Ferguson - Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition

    Download data sheets - Massey Ferguson MF 4709 M


    What do you think about this machine?

    Compare Massey Ferguson MF 4709 M with other models

    Press 1 image

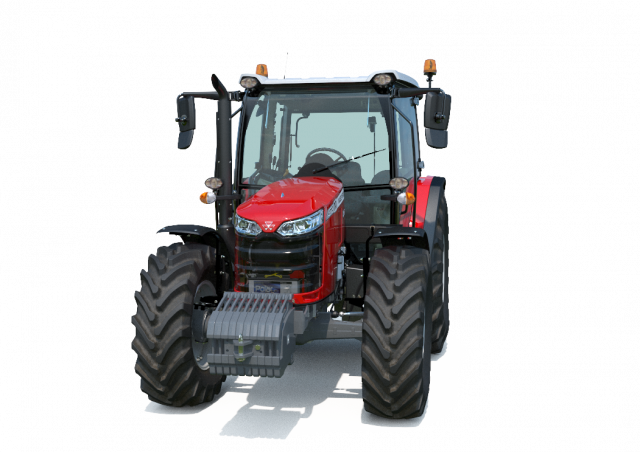

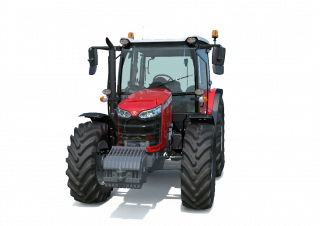

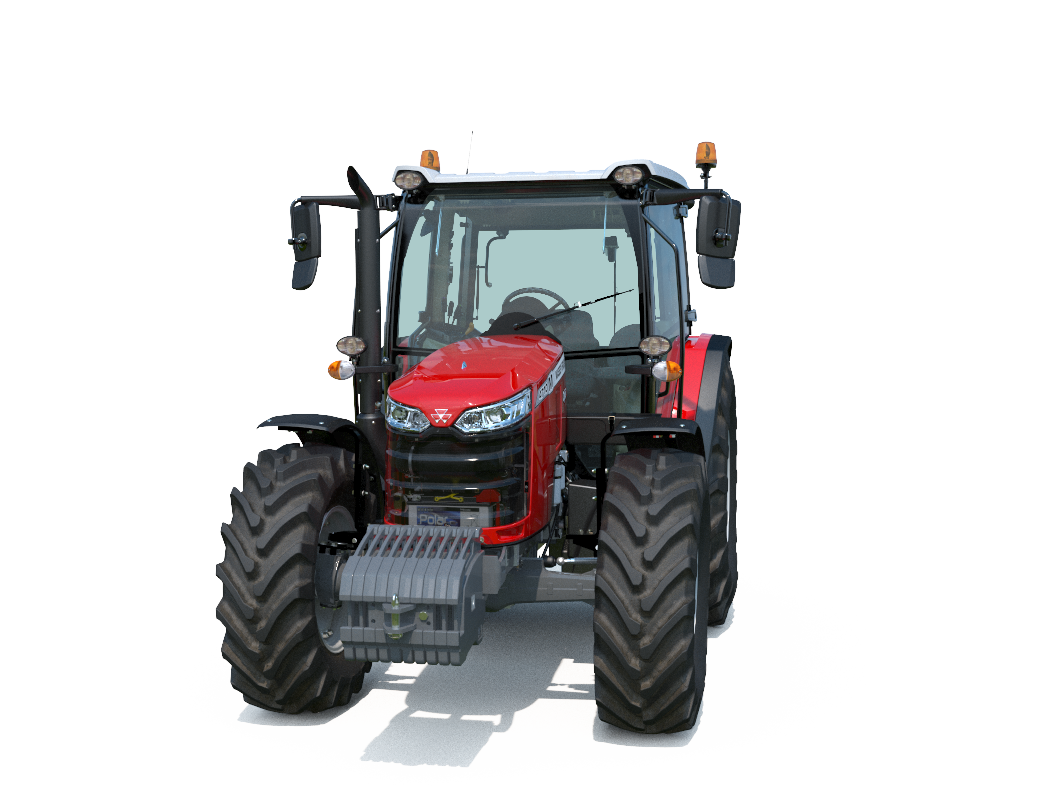

    Massey Ferguson MF 4709 M


    420/85 R34

    340/85 R24
