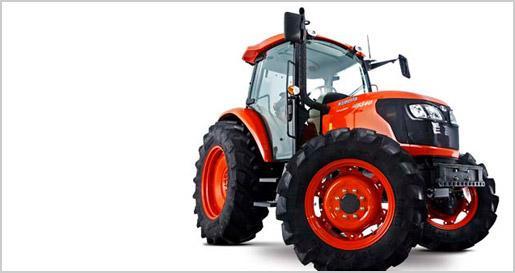

    Kubota M 9540 Specifications & Technical Data (2008-2016)

    Rate this machine now!

    Kubota is the manufacturer of the 4wd tractor model M 9540. Find and download detailed specs and data sheets for this machine here... Read more

    Kubota is the manufacturer of the 4wd tractor model M 9540. Find and download detailed specs and data sheets for this machine here.

    Equipped with a powerful Kubota engine, this M 9540 3.305t machine can provide 72.9kW or 97 horse power for the 4wd tractor. The Kubota M 9540 can be grouped in the medium sized machine segment in the 4wd tractors category. The M 9540’s size is 2.12m x 3.96m x 2.65m.

    The M 9540 is manufactured and distributed with Aircondition and Cabin. It has been sold without air Front PTO, ISO Bus and Front hydraulics as of 2017. There are more detailed specifications and machine descriptions available in the original Kubota M 9540 specs data sheet. Specification sheet is available for a free download in English, German, French and Italian - providing the machine descriptions and more detailed specs about this particular model.

    The production is still going in 2017, where this M 9540 is available at a new list price between €39000 and €50000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The most commonly viewed Kubota models of this type on LECTURA Specs are the M 130 X, M 7171 and M 7151, and 35 other 4wd tractors, which currently range from 48.5kW up to 170kW are also available. Ranked in the LECTURA index at #261, this M 9540 4wd tractor has models that date from 2008 to 2017. Throughout the production cycle of this M 9540 4wd tractor, there have been around 35 models that average a price of €27100 for an age of 6 years Want more detailed specifications? Download the latest Kubota M 9540 specs data sheet on LECTURA Specs today!

    Technical specs - M 9540 Kubota


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Engine power 70.8 kW
    • Back tyres 420/85R34
    • Front tyres 320/85R24
    • Transport length 3.96 m
    • Transport width 2.12 m
    • Transport height 2.65 m
    • Travel speed 39 km/h
    • Transmission 18/18
    • Transmission type LS
    • Weight 3.305 t
    • Control unit -/2 ew/dw
    • Steering h
    • three point category 2
    • Engine manuf. Kubota
    • Engine type V3800DI-TE3
    • Displacement 3.769 l
    • Revolutions at max torque 1400 rpm
    • No. of cylinders 4
    • Cylinder bore x stroke 100x120 mm
    • Emission level 3a

    is a 0 for the size specification so that means, that no information is available.

    Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition
