John Deere 9R 590 Specifications & Technical Data (2021-2024)

Rate this machine now!

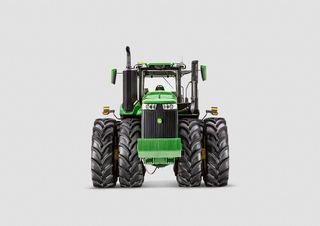

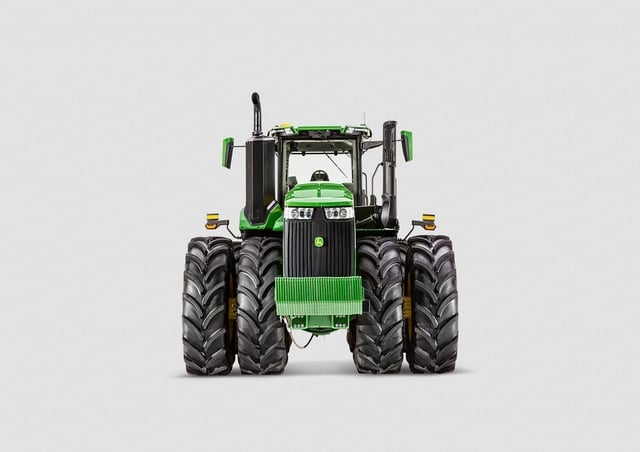

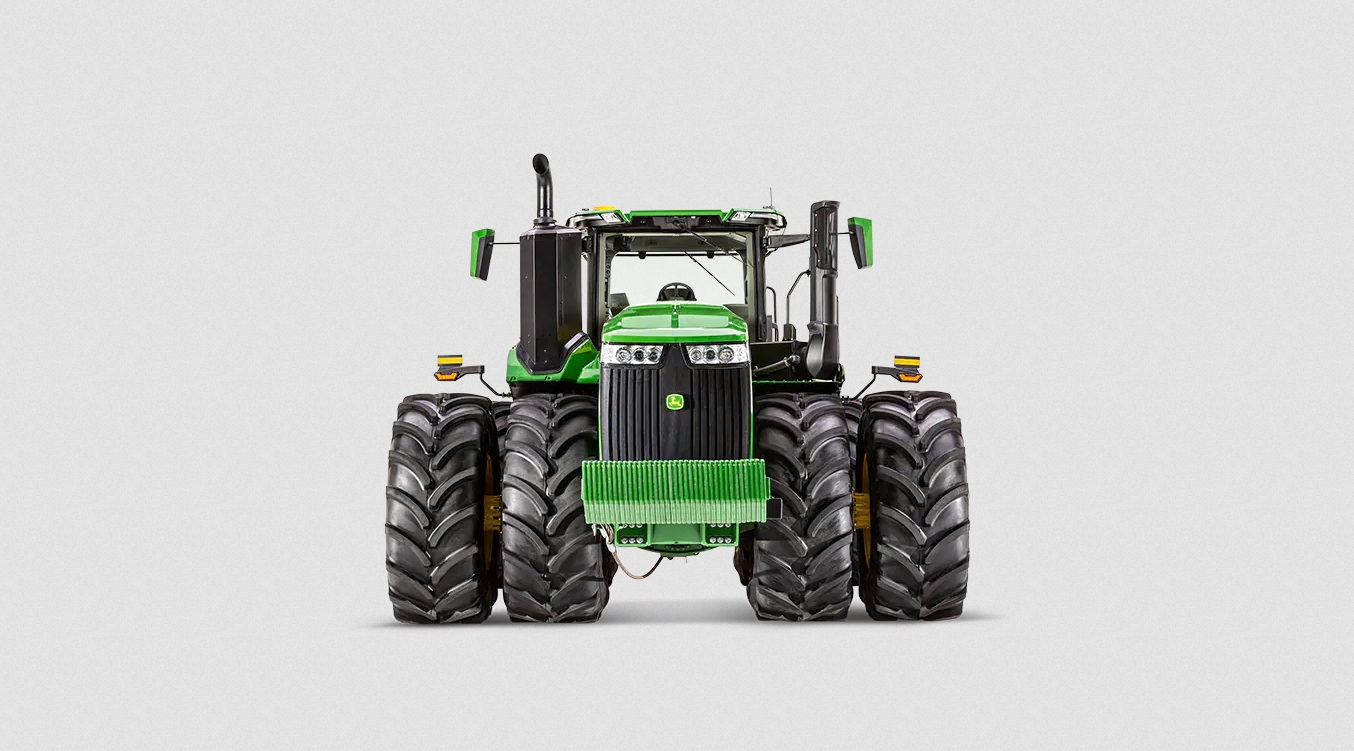

The John Deere 9R 590 is a 4-wheel drive tractor manufactured by John Deere since 2021. It has a weight of 18.8 tons and is powere... Read more

The John Deere 9R 590 is a 4-wheel drive tractor manufactured by John Deere since 2021. It has a weight of 18.8 tons and is powered by an engine with a power output of 477 kW. The tractor has a transport length of 7.593 meters and can travel at a speed of 40 km/h. It has a transport width of 3.05 meters and a transport height of 3.979 meters. The tractor is equipped with special equipment such as air conditioning, a cabin, and an ISO Bus.

Technical specs - 9R 590 John Deere


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 477 kW
  • Model series 9R
  • Back tyres 800/70 R38
  • Front tyres 800/70 R38
  • Transport length 7.593 m
  • Transport width 3.05 m
  • Transport height 3.979 m
  • Travel speed 40 km/h
  • Transmission 18/6
  • Transmission type LS
  • Weight 18.8 t
  • Control unit -/4 ew/dw
  • Steering h
  • three point category 4H
  • Engine manuf. John Deere
  • Engine type PSS
  • Displacement 13.6 l
  • Revolutions at max torque 2100 rpm
  • Max. torque 2723/1600 Nm
  • No. of cylinders 6
  • Emission level V

is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • Air brakes
  • ISO Bus
  • Aircondition
