DEUTZ-FAHR 5090 G Plus GS Specifications & Technical Data (2020-2025)

The DEUTZ-FAHR 5090 G Plus GS is a 4-wheel drive tractor manufactured since 2020. It has a weight of 3.8 tons and is powered by an…

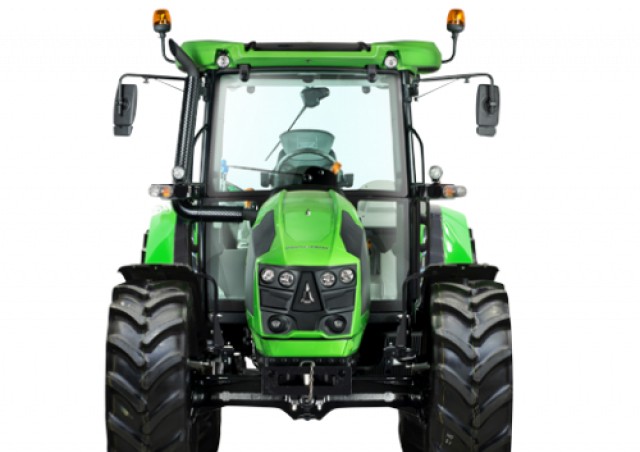

The DEUTZ-FAHR 5090 G Plus GS is a 4-wheel drive tractor manufactured since 2020. It has a weight of 3.8 tons and is powered by an engine with a power output of 65 kW. The tractor has a transport length of 4.13 meters and can travel at a speed of 40 km/h. It has a transport width of 2.365 meters and a transport height of 2.7 meters. The tractor is equipped with a cabin as special equipment.

Technical specs - 5090 G Plus GS DEUTZ-FAHR

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
65 kW
Model series
5G
Back tyres
16.9 R34
Front tyres
14.9 R24
Transport length
4.13 m
Transport width
2.365 m
Transport height
2.7 m
Travel speed
40 km/h
Transmission type
m
Weight
3.8 t
Control unit
-/1 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
FARMotion
Displacement
2.887 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
Tier 4 f

More technical details, like: transmission, three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

FAQ

What is the weight of DEUTZ-FAHR 5090 G Plus GS?

The weight of DEUTZ-FAHR 5090 G Plus GS is 3.8 tons.

What is the size of the DEUTZ-FAHR 5090 G Plus GS 4WD tractor?

The size of the DEUTZ-FAHR 5090 G Plus GS 4WD tractor is 2.37 meters in width, 2.7 meters in height, and 4.13 meters in length.

What engine does the DEUTZ-FAHR 5090 G Plus GS 4WD tractor have?

The DEUTZ-FAHR 5090 G Plus GS 4WD tractor is equipped with an SDF FARMotion engine that has 88 kW power, 2.89 l displacement, 2200 rpm at max torque, and 3 cylinders.

How much is DEUTZ-FAHR 5090 G Plus GS (2020 - 2024) worth?

The residual value of DEUTZ-FAHR 5090 G Plus GS depends on machine's individual parameters. Visit LECTURA Valuation to check it.
