Claas Axion 800 Specifications & Technical Data (2020-2024)

The Claas Axion 800 is a 4-wheel drive tractor manufactured by Claas since 2020. It has a weight of 7.148 tons and is powered by a…

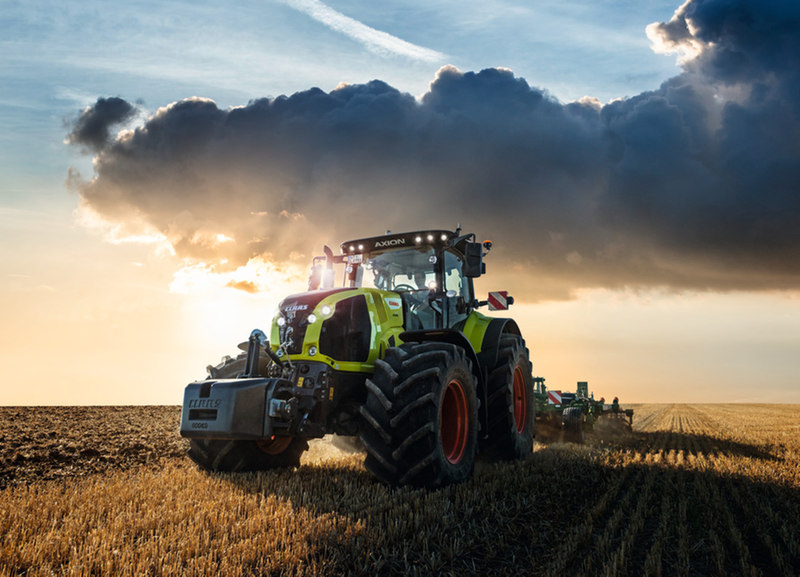

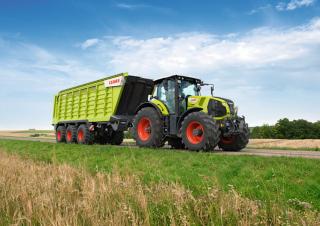

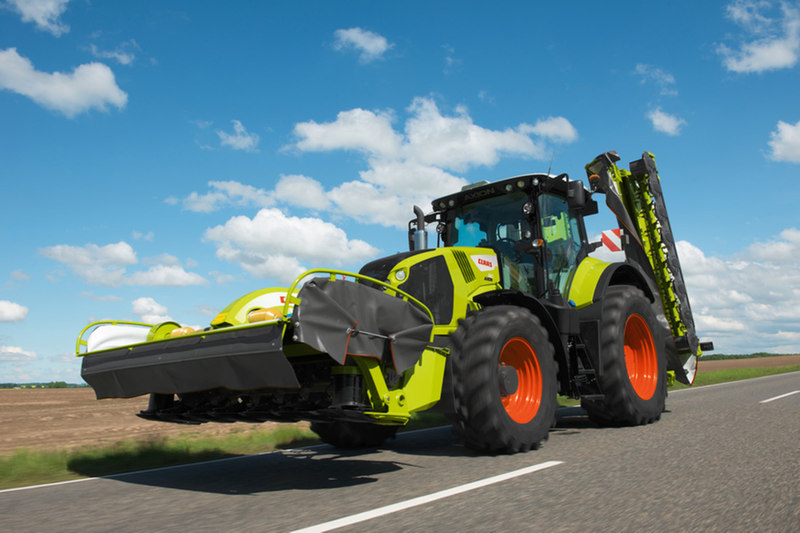

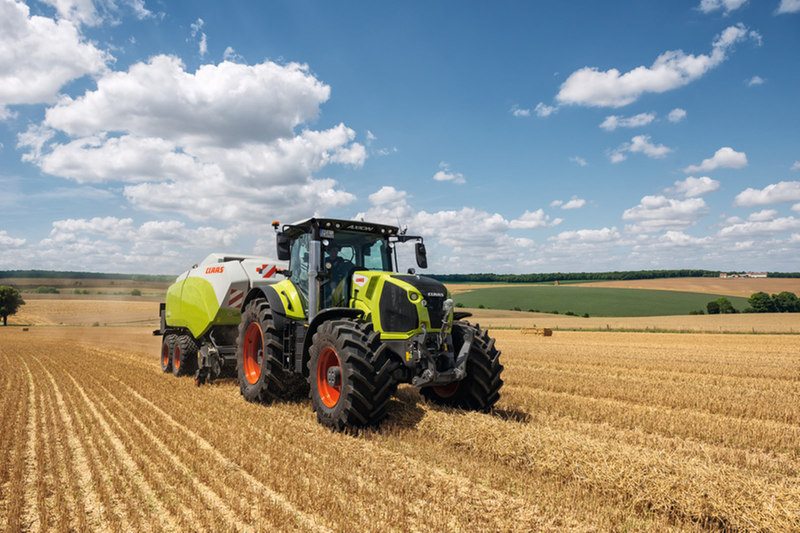

The Claas Axion 800 is a 4-wheel drive tractor manufactured by Claas since 2020. It has a weight of 7.148 tons and is powered by an engine with a power output of 142 kW. The tractor has a transport length of 5.72 meters and can travel at a speed of 50 km/h. It has a transport height of 3.15 meters and is equipped with special equipment such as air brakes, air conditioning, a cabin, and an ISO Bus.

Axion 800

Years of manufacture: 2020—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Axion 800 Claas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 142 kW

Model series: Axion

Back tyres: 650/65 R42

Front tyres: 540/65 R30

Transport length: 5.72 m

Transport height: 3.15 m

Travel speed: 50 km/h

Transmission: 24/24

Transmission type: LS

Weight: 7.148 t

Control unit: -/3 ew/dw

Steering: h

three point category: 3

Engine manuf.: FPT

Engine type: NEF 67

Displacement: 6.7 l

No. of cylinders: 6

Emission level: V

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: Yes
ISO Bus: Yes
Aircondition: Yes

Download datasheets (PDF)

FAQ

What is the weight of Claas Axion 800?

The weight of Claas Axion 800 is 7.15 tons.

What is the size of the Claas Axion 800 4WD tractor?

The Claas Axion 800 4WD tractor has a transport height of 3.15 meters and a transport length of 5.72 meters.

What engine does the Claas Axion 800 4WD tractor have?

The Claas Axion 800 4WD tractor has an FPT NEF 67 engine with a power output of 193 kW, a displacement of 6.7 liters, and 6 cylinders.
