Lectura specs Agricultural machinery 4WD Tractors 4WD Tractors Case IH Case IH Farmall 75 C specifications

Case IH Farmall 75 C Specifications & Technical Data (2021-2024)

Rate this machine now!

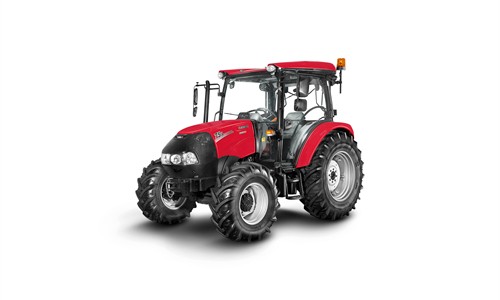

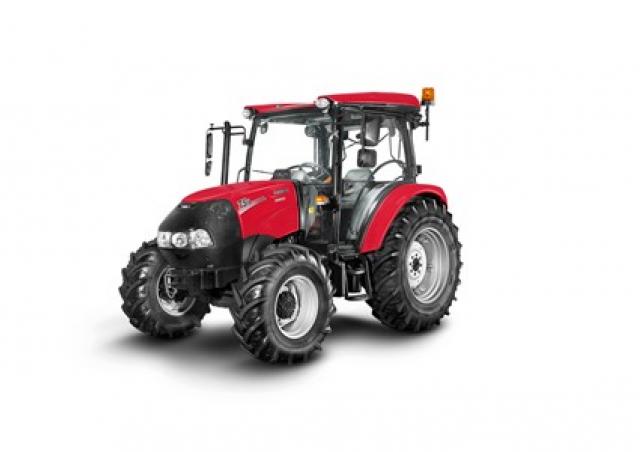

The Case IH Farmall 75 C is a 4-wheel drive tractor manufactured by Case IH since 2021. It has a weight of 2.88 tons and is powere... Read more

The Case IH Farmall 75 C is a 4-wheel drive tractor manufactured by Case IH since 2021. It has a weight of 2.88 tons and is powered by an engine with a power output of 55 kW. The tractor has a transport length of 4.001 meters and can travel at a speed of 40 km/h. It has a transport width of 1.922 meters and a transport height of 2.495 meters. The tractor is equipped with a cabin as special equipment.

Technical specs - Farmall 75 C Case IH


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 55 kW
  • Model series Farmall
  • Back tyres 16.9 R30
  • Front tyres 14.9L R20
  • Transport length 4.001 m
  • Transport width 1.922 m
  • Transport height 2.495 m
  • Travel speed 40 km/h
  • Transmission 20/20
  • Transmission type h
  • Weight 2.88 t
  • Control unit -/2 ew/dw
  • Steering h
  • Engine manuf. FPT
  • Engine type k.A.
  • Displacement 3.4 l
  • Revolutions at max torque 2200 rpm
  • Max. torque 375/1400 Nm
  • No. of cylinders 4
  • Emission level V

is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • Air brakes
  • ISO Bus
  • Aircondition
