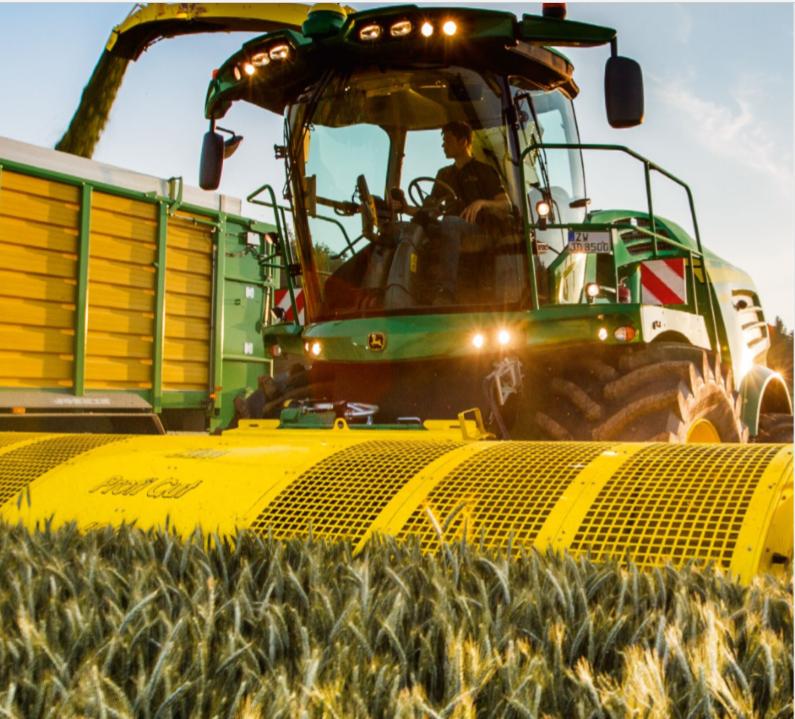

    John Deere 8700 Specifications & Technical Data (2014-2016)

    Rate this machine now!

    Engine power: 560kW – Back tyres: 650/85 R38 – Front tyres: 500/80 R28 – Min. Pick-up width: 4.5m – Max. pick-up width: 4.5m – Transmission type: M

    Technical specs - 8700 John Deere


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Engine power 560 kW
    • Back tyres 650/85 R38
    • Front tyres 500/80 R28
    • Min. Pick-up width 4.5 m
    • Max. pick-up width 4.5 m
    • Transmission type M
    • Steering HH
    • Travel speed 40 km/h
    • Transport length 6.6 m
    • Transport width 3.7 m
    • Transport height 2.89 m
    • Engine manuf. Cummins
    • Engine type QSK19

    More technical details, like: model series, weight, brakes, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model, Self-propelled is a 0 for the size specification so that means, that no information is available.

    Special equipment

    • Cabin
    • Air brakes
    • All-wheel drive
    • Overload safety
    • Metal detector
    • Rollover protection
    • Aircondition
