Massey Ferguson MF 4709 M Specifications & Technical Data (2020-2025)

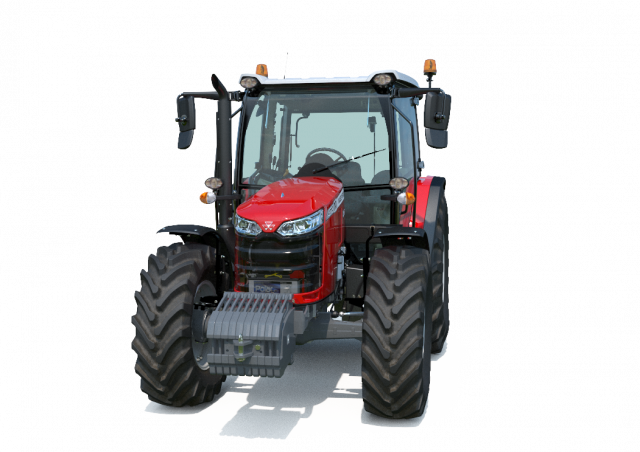

Name: Massey Ferguson MF 4709 M 2WD Tractors
Brand: Massey Ferguson

The Massey Ferguson MF 4709 M is a 2 Wheel-Drive Tractor manufactured since 2020, weighing 3.7 tons and powered by a 67.7 kW engin…

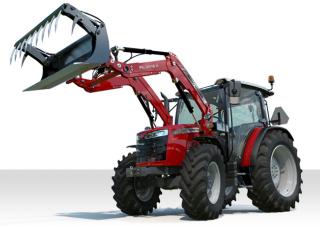

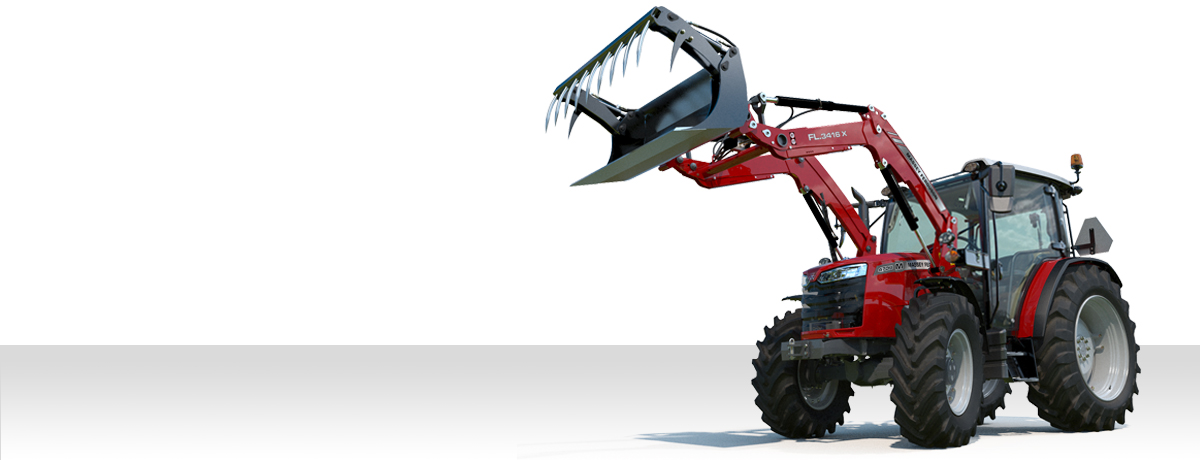

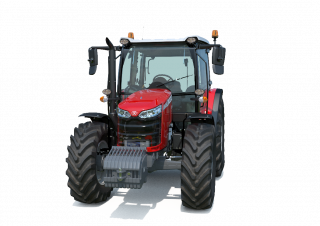

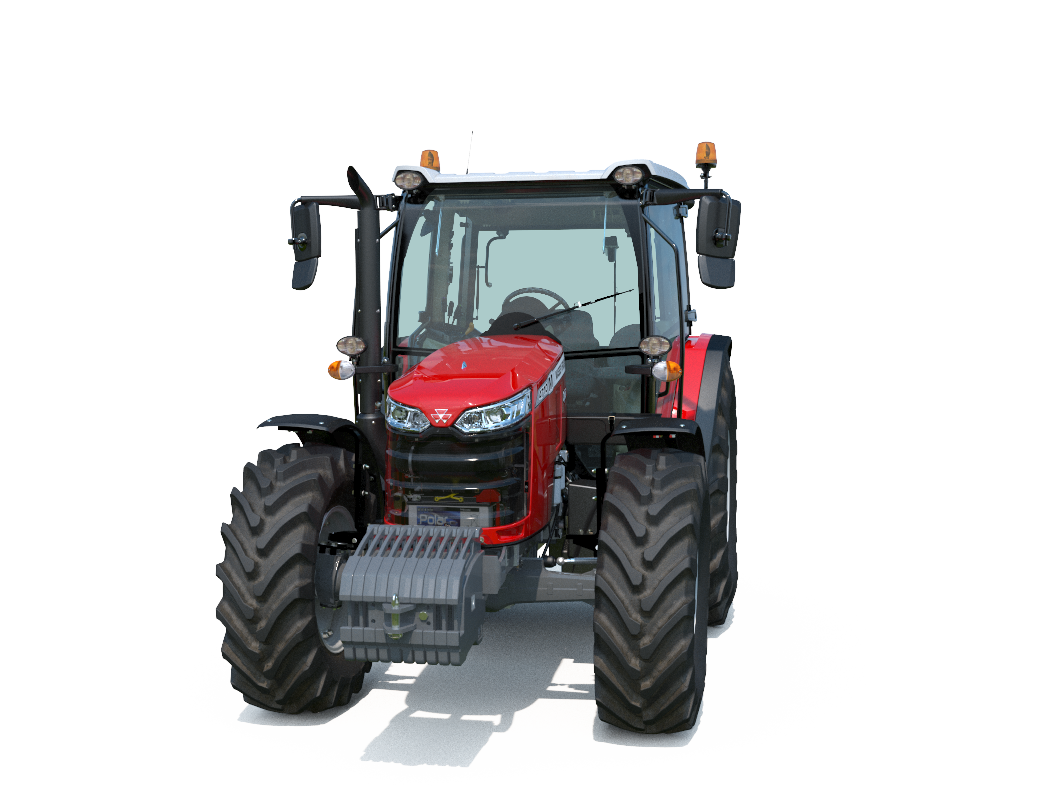

The Massey Ferguson MF 4709 M is a 2 Wheel-Drive Tractor manufactured since 2020, weighing 3.7 tons and powered by a 67.7 kW engine. It has a travel speed of 30 km/h, a transport length of 4.067 m, a transport width of 1.925 m, and a transport height of 2.537 m. It is equipped with a cabin as a special feature.

MF 4709 M

Years of manufacture: 2020—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - MF 4709 M Massey Ferguson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 67.7 kW

Model series: 4700 M

Back tyres: 420/85 R34

Front tyres: 10.0-16

Transport length: 4.067 m

Transport width: 1.925 m

Transport height: 2.537 m

Travel speed: 30 km/h

Transmission: 12/12

Transmission type: m

Weight: 3.7 t

Control unit: -/2 ew/dw

three point category: 2

Engine manuf.: AGCO Power

Engine type: AB 33 AWIC

Displacement: 3.3 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: steering, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

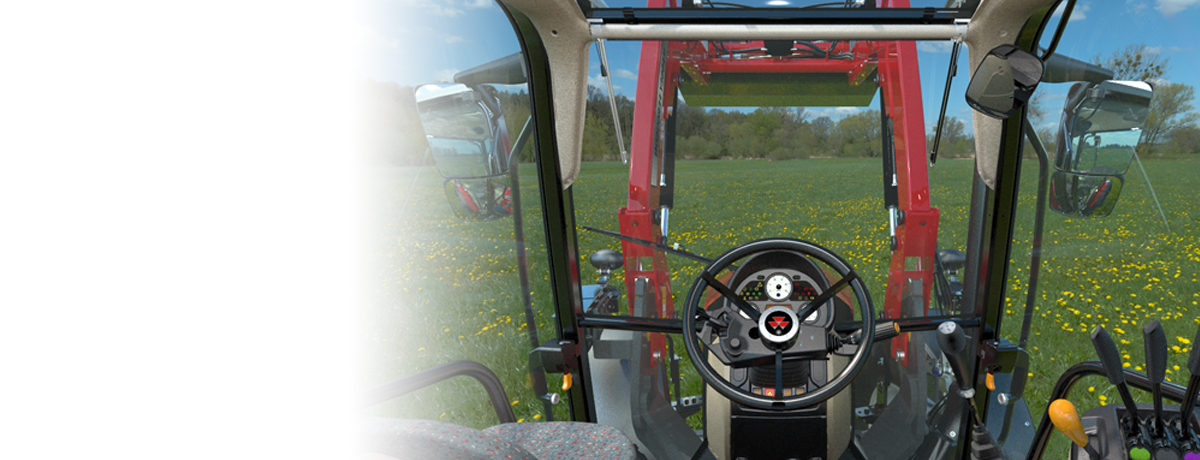

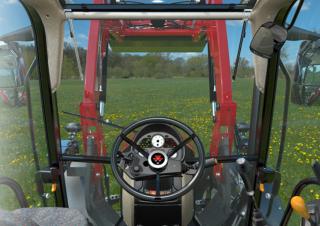

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: No

Download datasheets (PDF)
