Lectura specs Agricultural machinery 2WD Forage Harvesters 2WD Forage Harvesters John Deere John Deere 8500 specifications

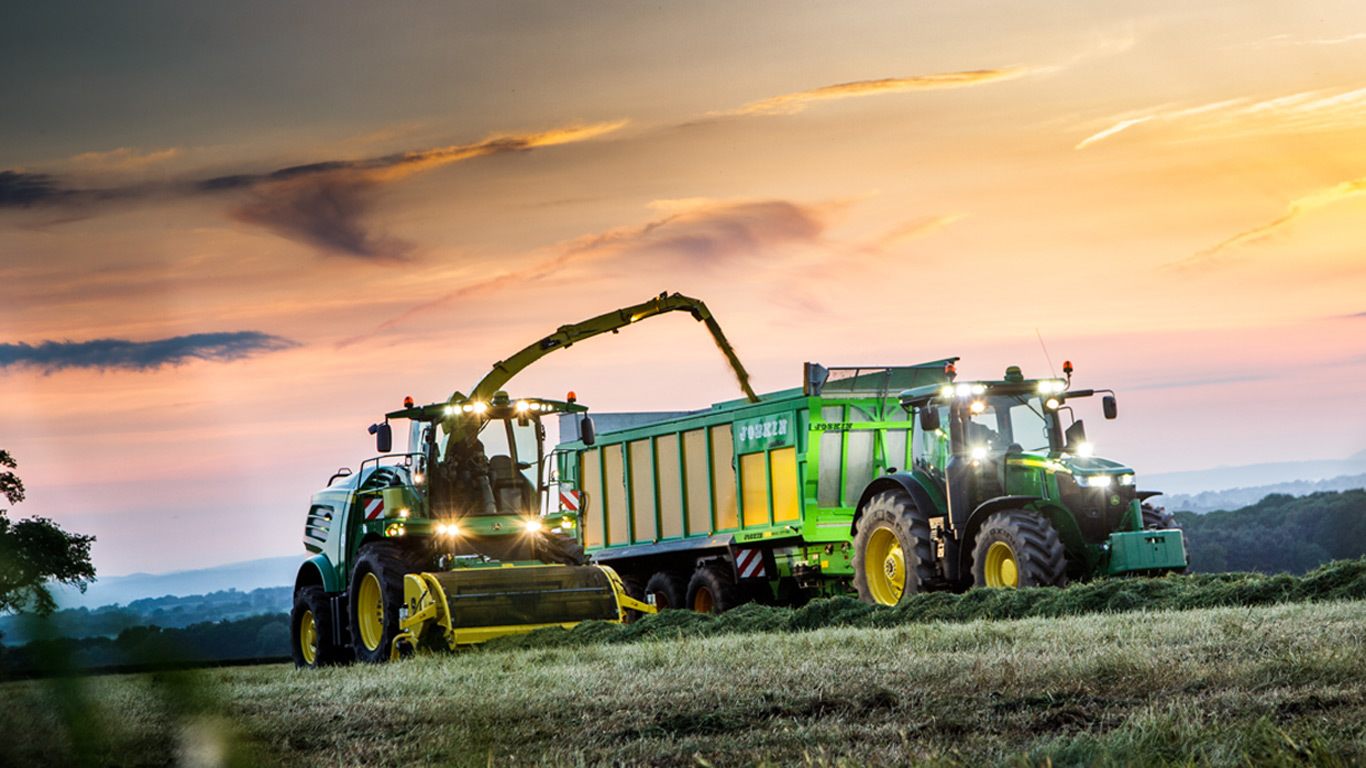

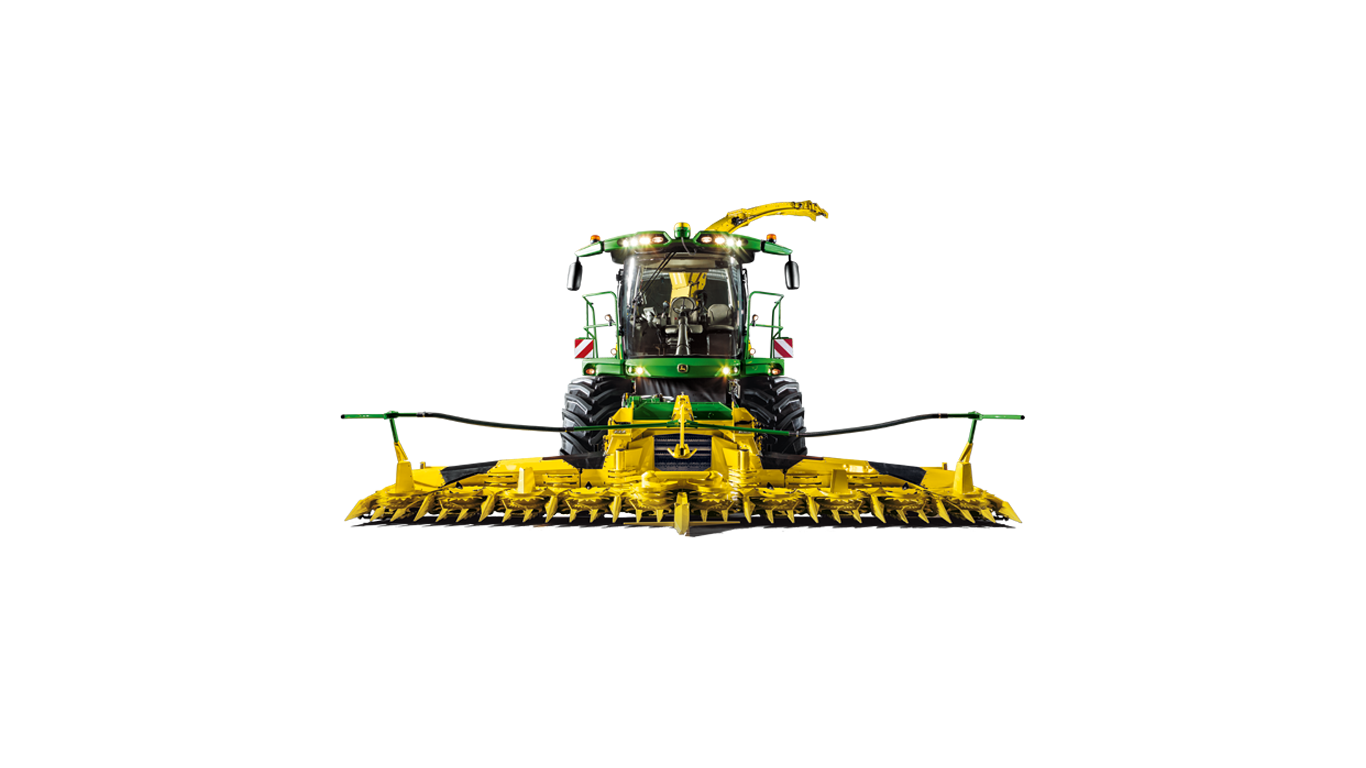

John Deere 8500 Specifications & Technical Data (2018-2023)

Rate this machine now!

Engine power: 430kW – Model series: 8000 – Back tyres: 620/70 R30 – Front tyres: 900/60 R42 – Min. Pick-up width: 2.55m – Max. pick-up width: 3m

Technical specs - 8500 John Deere


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 430 kW
  • Model series 8000
  • Back tyres 620/70 R30
  • Front tyres 900/60 R42
  • Min. Pick-up width 2.55 m
  • Max. pick-up width 3 m
  • Transmission type A
  • Steering HH
  • Brakes S
  • Travel speed 20 km/h
  • Transport length 6.6 m
  • Transport width 3.7 m
  • Transport height 3.89 m
  • Engine manuf. John Deere
  • Engine type 6135H2014
  • Displacement 13.5 l
  • No. of cylinders 6
  • Emission level Tier 4 f/EU V

More technical details, like: average fuel consumption, fuel consumption range (min - max), weight, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model, Self-propelled is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Air brakes
  • All-wheel drive
  • Overload safety
  • Metal detector
  • Rollover protection
  • Aircondition
