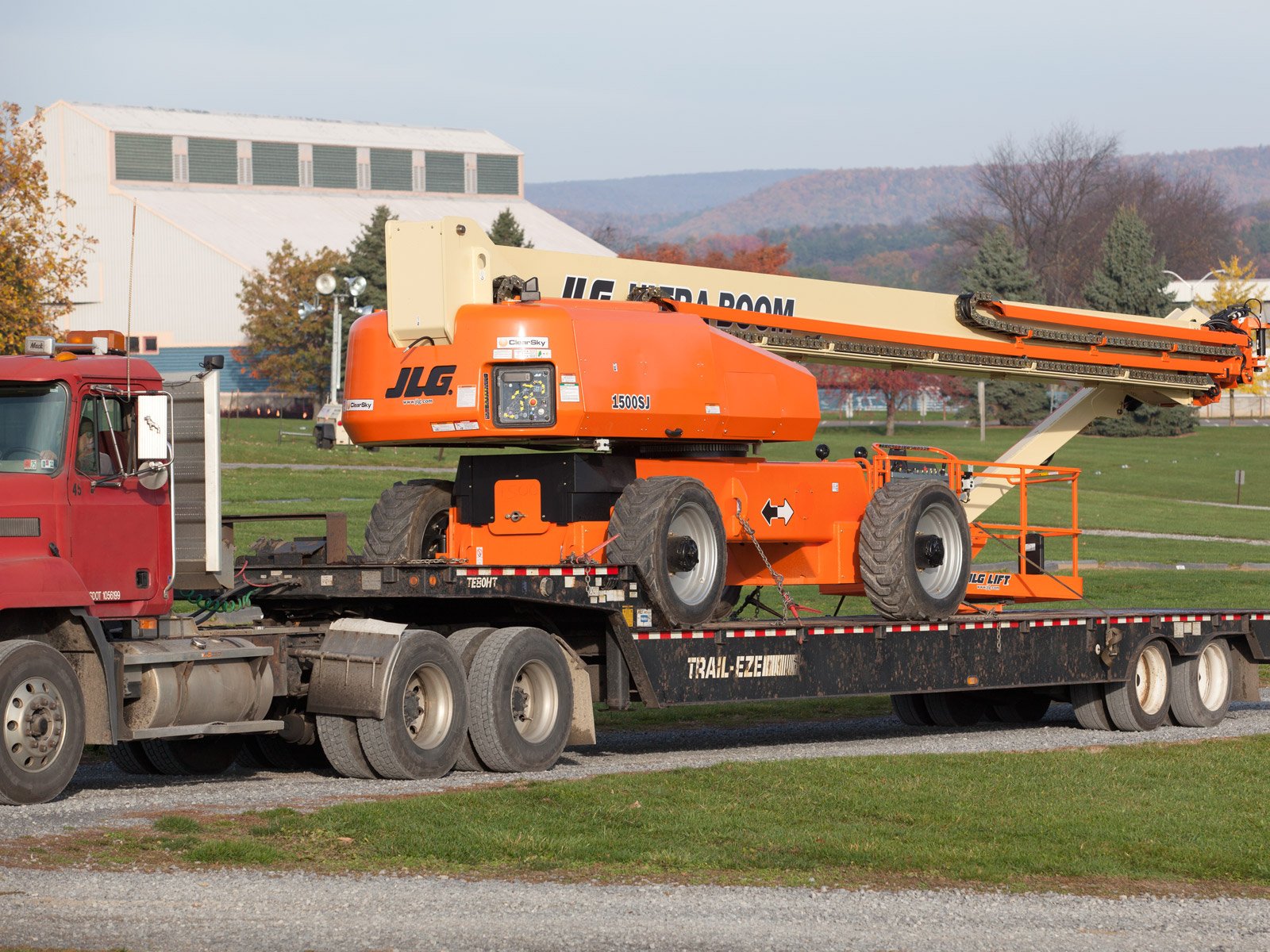

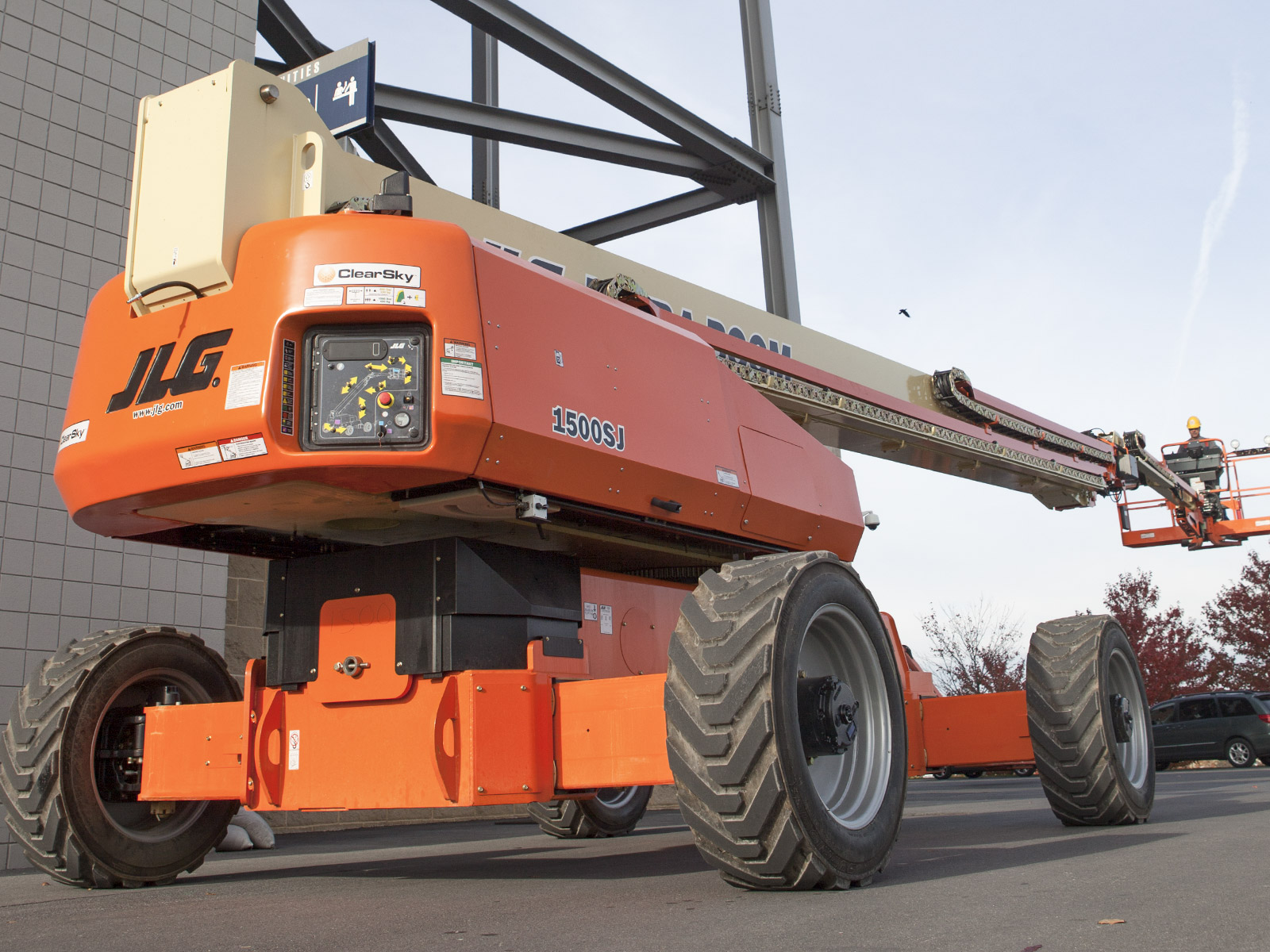

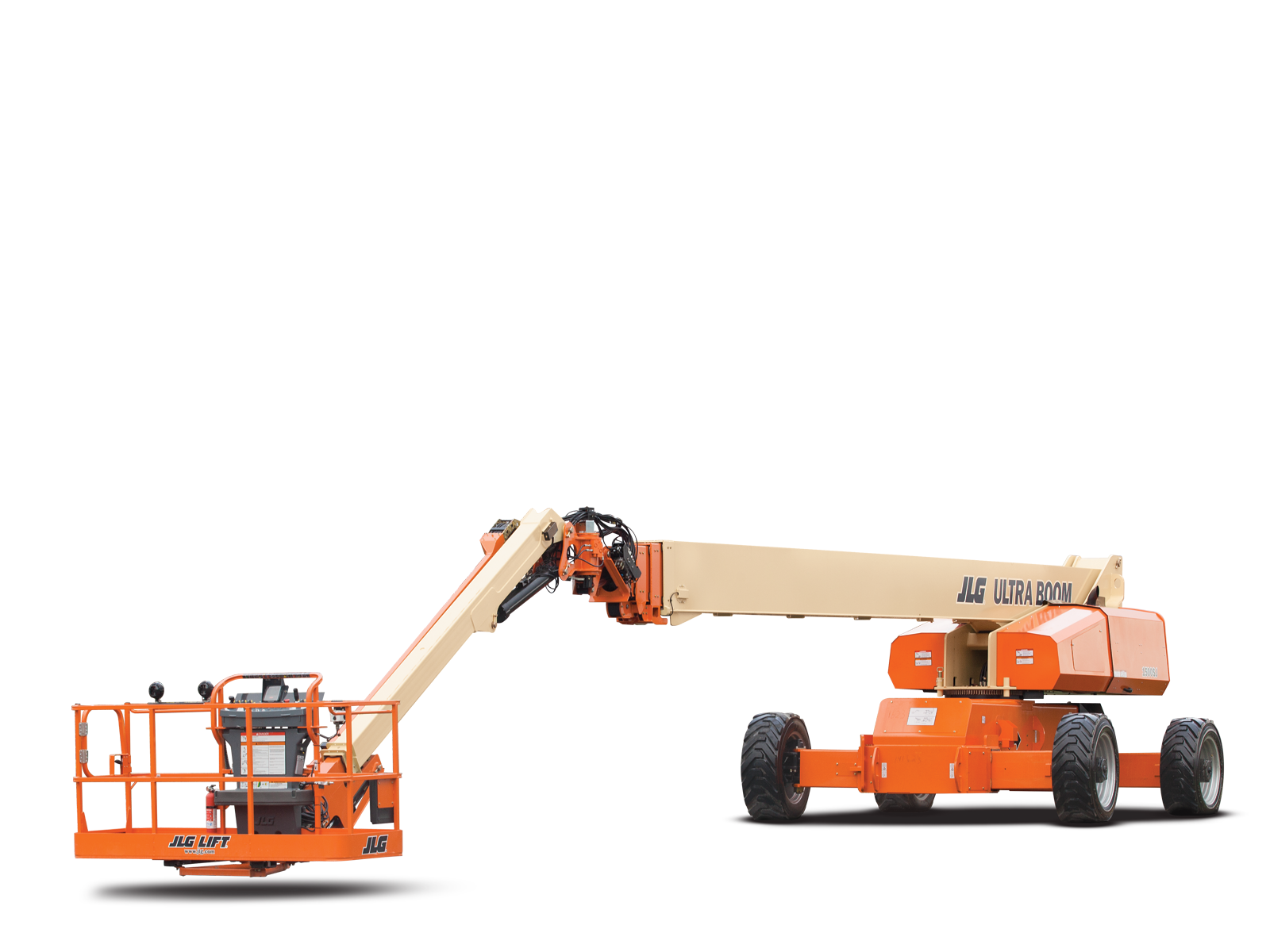

    JLG 1500SJ Specifications & Technical Data (2011-2023)

    Rate this machine now!

    Working height: 47.7m – Platform length: 0.91m – Platform width: 2.44m – Transport length: 13.11m – Transport width: 2.49m – Transport height: 3.05m

    Technical specs - 1500SJ JLG


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Working height 47.7 m
    • Platform length 0.91 m
    • Platform width 2.44 m
    • Transport length 13.11 m
    • Transport width 2.49 m
    • Transport height 3.05 m
    • Turning radius outside 6.86 m
    • Weight 22000 kg
    • Persons 2
    • Max. Reach horizontal 24,4 m
    • Net load 450 kg
    • Travel speed 4.8 km/h
    • max. climbing ability 40 %
    • Engine manuf. Deutz
    • Engine type TD2011 L4
    • Engine power 55.9 kW

    More technical details, like: brace support length, brace support width, proportional control, power source, rotation, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    IPAF: 3b

    Special equipment

    • Rigid cage boom
    • Articulated cage boom
    • All-wheel steering
