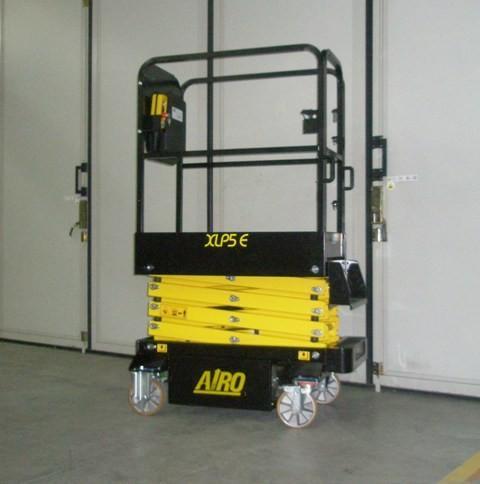

AIRO XLP 5 E Specifications & Technical Data (2011-2014)

Name: AIRO XLP 5 E Wheeled scissor lifts
Brand: AIRO

Rate this machine now!

Manufactured by AIRO, this is the XLP 5 E wheeled scissor lift. Find and download detailed specs and data sheets for this machine ... Read more

Manufactured by AIRO, this is the XLP 5 E wheeled scissor lift. Find and download detailed specs and data sheets for this machine here.

The XLP 5 E is categorised in the smallest machine segment in the wheeled scissor lifts category. The measurements of the XLP 5 E are 0.7m x 1.2m x 1.95m. 250kg is net load this 430kg machine can operate. It is able to operate up to 5.34m in working height. With 1.05m platform width and 0.57m platform length, the AIRO XLP 5 E can lift 1 persons.

All-wheel steering and Foldable handrail are not provided on this model as of 2014. Find detailed specifications and machine details in the original AIRO XLP 5 E datasheet. Available in Spanish, English, French, Italian and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €7,000 and €9,000. Production of the XLP 5 E stopped in 2014. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Based on other wheeled scissor lifts specifications and pricing variations, the AIRO XLP 5 E can be considered similar to the PB PB S 05-7 EC, PB PB S 06-7 EC and Youngman BoSS X3 X-SP. At present, 29 other wheeled scissor lifts, which range from 4.6m up to 19.3m are produced by AIRO. Of these, XS8 E, X12 EW Wind and also XS8 E are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest AIRO XLP 5 E specs data sheet on LECTURA Specs today!

Read less

Technical specs
Buy & Rent
Valuate & Sell
Parts & Components
Events & News
Transport
Contacts & Help

Technical specs - XLP 5 E AIRO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

Working height 5.34 m
Platform length 0.57 m
Platform width 1.05 m
Transport length 1.2 m
Transport width 0.7 m
Transport height 1.95 m
Weight 430 kg
Net load 250 kg
Persons 1

More technical details, like: brace support length, brace support width, travel speed , turning radius outside, proportional control, max. climbing ability, platform extension, power source, engine manuf., engine type, engine power, dimension lxwxh...

IPAF: 3a

Special equipment

All-wheel steering
Foldable handrail
