    Basket SEL 23 AJX Specifications & Technical Data (2004-2023)

    Rate this machine now!

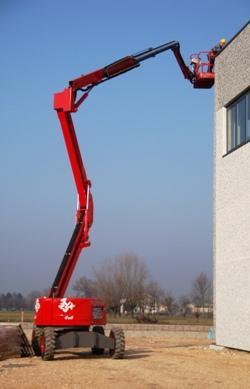

    Basket is the manufacturer of the articulated telescopic work platform model SEL 23 AJX. Find and download detailed specs and data... Read more

    Basket is the manufacturer of the articulated telescopic work platform model SEL 23 AJX. Find and download detailed specs and data sheets for this machine here.

    This Basket articulated telescopic work platform belongs to the biggest machine segment in the articulated telescopic work platforms category. The SEL 23 AJX’s size is 2.43m x 7.16m x 2.87m. 200kg is net load this 9600kg machine can operate. This Articulated Telescopic Work Platform from Basket can provide a working height of 23m. Max. Horizontal reach of this SEL 23 AJX model from Basket is 13,5m. With 0.8m platform width and 1.8m platform length, the Basket SEL 23 AJX can lift 2 persons.

    Articulated cage boom, Rigid cage boom and All-wheel steering are not provided on this model as of 2018. Get the original Basket SEL 23 AJX datasheet for even more detailed specifications and machine details. Specification sheet is available for a free download in Italian, French and German - providing the machine descriptions and more detailed specs about this particular model.

    The newest version of this SEL 23 AJX model is priced at between €83,000 and €105,000, with the production of this model still continuing in 2018. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system. This machine is still being manufactured by Basket and is offered with a list price between €83,000 and €105,000.

    Based on other articulated telescopic work platforms specifications and pricing variations, the Basket SEL 23 AJX can be considered similar to the AIRO A23 JRTD, Skyjack SJB 66 TK and DINO Lift ® Dino 220XSE. Basket currently produces 14 other articulated telescopic work platforms, which range from 14m up to 50m - the most visited on LECTURA Specs are Spider 25 W-E, SEL 17 AJ Electron, Spider 25 W-E. Having been in production from 2004 to 2018, the SEL 23 AJX articulated telescopic work platform ranks in the LECTURA index at #114. Want more detailed specifications? Download the latest Basket SEL 23 AJX specs data sheet on LECTURA Specs today!

    Technical specs - SEL 23 AJX Basket


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Working height 23 m
    • Platform length 1.8 m
    • Platform width 0.8 m
    • Transport length 7.16 m
    • Transport width 2.43 m
    • Transport height 2.87 m
    • Weight 9600 kg
    • Net load 200 kg
    • Max. Reach horizontal 13,5 m
    • Persons 2
    • max. climbing ability 25 %

    More technical details, like: brace support length, brace support width, proportional control, travel speed , turning radius outside, power source, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement...

    Show more

    IPAF: 3b

    Special equipment

    • Rigid cage boom
    • Articulated cage boom
    • All-wheel steering
