    Basket SEL 20 AJX Specifications & Technical Data (2004-2023)

    Rate this machine now!

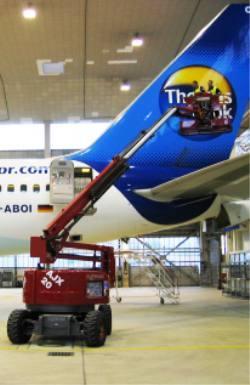

    The SEL 20 AJX articulated telescopic work platform model is manufactured by Basket. Find and download detailed specs and data she... Read more

    The SEL 20 AJX articulated telescopic work platform model is manufactured by Basket. Find and download detailed specs and data sheets for this machine here.

    This Basket articulated telescopic work platform belongs to the biggest machine segment in the articulated telescopic work platforms category. The SEL 20 AJX’s size is 2.16m x 6.44m x 2.48m. The maximum net load of this 9180kg model is 200kg. The working height listed in the datasheet for this Basket SEL 20 AJX is 20m. It can operate with up to 11,7m of horizontal reach. 2 persons are allowed to stand on the platform at the same time thanks to 1.8m of platform length and 0.8m of platform width.

    It has been sold without Rigid cage boom, All-wheel steering and Articulated cage boom as of 2018. Get the original Basket SEL 20 AJX datasheet for even more detailed specifications and machine details. You can download it for free in French, German and Italian on LECTURA Specs.

    The newest version of this SEL 20 AJX model is priced at between €73,000 and €93,000, with the production of this model still continuing in 2018. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system. The most recent model of this machine is priced between €73,000 and €93,000. Moreover this model is still being manufactured today.

    The SEL 20 AJX Basket can be compared to several models from other manufacturers. The closest articulated telescopic work platforms based on specification and pricing are the Manitou 200 ATJ, Grove-Manlift AMZ 66 XT and Niftylift HR 21. At present, 14 other articulated telescopic work platforms, which range from 14m up to 50m are produced by Basket. Of these, SEL 17 AJ Electron, Spider 25 W-E and also Spider 25 W-E are the most frequently visited on LECTURA Specs. Having been in production from 2004 to 2018, the SEL 20 AJX articulated telescopic work platform ranks in the LECTURA index at #123. Want more detailed specifications? Download the latest Basket SEL 20 AJX specs data sheet on LECTURA Specs today!

    Technical specs - SEL 20 AJX Basket


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Working height 20 m
    • Platform length 1.8 m
    • Platform width 0.8 m
    • Transport length 6.44 m
    • Transport width 2.16 m
    • Transport height 2.48 m
    • Weight 9180 kg
    • Net load 200 kg
    • Max. Reach horizontal 11,7 m
    • Persons 2
    • max. climbing ability 25 %

    More technical details, like: brace support length, brace support width, proportional control, travel speed , turning radius outside, power source, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement...

    Show more

    IPAF: 3b

    Special equipment

    • Rigid cage boom
    • Articulated cage boom
    • All-wheel steering
