    Basket SEL 17 AJX Specifications & Technical Data (2004-2023)

    Rate this machine now!

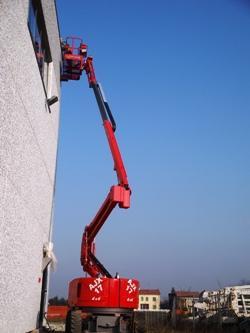

    Manufactured by Basket, this is the SEL 17 AJX articulated telescopic work platform. Find and download detailed specs and data she... Read more

    Manufactured by Basket, this is the SEL 17 AJX articulated telescopic work platform. Find and download detailed specs and data sheets for this machine here.

    This Basket articulated telescopic work platform belongs to the medium sized machine segment in the articulated telescopic work platforms category. The model's dimensions are 6.203m x 2.16m x 2.43m. This 8400kg model can operate with 200kg of net load. The working height listed in the datasheet for this Basket SEL 17 AJX is 17m. Max. Horizontal reach of this SEL 17 AJX model from Basket is 9,5m. With 0.8m platform width and 1.8m platform length, the Basket SEL 17 AJX can lift 2 persons.

    Articulated cage boom, Rigid cage boom and All-wheel steering are not provided on this model as of 2018. More detailed specifications and machine descriptions can be found in the original Basket SEL 17 AJX specs data sheet. Specification sheet is available for a free download in German, Italian and Spanish - providing the machine descriptions and more detailed specs about this particular model.

    The production is still going in 2018, where this SEL 17 AJX is available at a new list price between €58,000 and €74,000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system. This machine is still being manufactured by Basket and is offered with a list price between €58,000 and €74,000.

    The SEL 17 AJX Basket can be compared to several models from other manufacturers. The closest articulated telescopic work platforms based on specification and pricing are the UpRight AB 50 JRT, Manitou 171 AET DS and AZ GTB 170. At present, 14 other articulated telescopic work platforms, which range from 14m up to 50m are produced by Basket. Of these, SEL 17 AJ Electron, Spider 25 W-E and also Spider 25 W-E are the most frequently visited on LECTURA Specs. This SEL 17 AJX articulated telescopic work platform, which has been in production between 2004 and 2018 ranks in the LECTURA index at #91. Want more detailed specifications? Download the latest Basket SEL 17 AJX specs data sheet on LECTURA Specs today!

    Technical specs - SEL 17 AJX Basket


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Working height 17 m
    • Platform length 1.8 m
    • Platform width 0.8 m
    • Transport length 6.203 m
    • Transport width 2.16 m
    • Transport height 2.43 m
    • Weight 8400 kg
    • Net load 200 kg
    • Max. Reach horizontal 9,5 m
    • Persons 2
    • max. climbing ability 25 %

    More technical details, like: brace support length, brace support width, proportional control, travel speed , turning radius outside, power source, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement...

    Show more

    IPAF: 3b

    Special equipment

    • Rigid cage boom
    • Articulated cage boom
    • All-wheel steering
