AIRO A 15 JE Specifications & Technical Data (2011-2014)

Name: AIRO A 15 JE Wheeled articulated work platforms
Brand: AIRO

Rate this machine now!

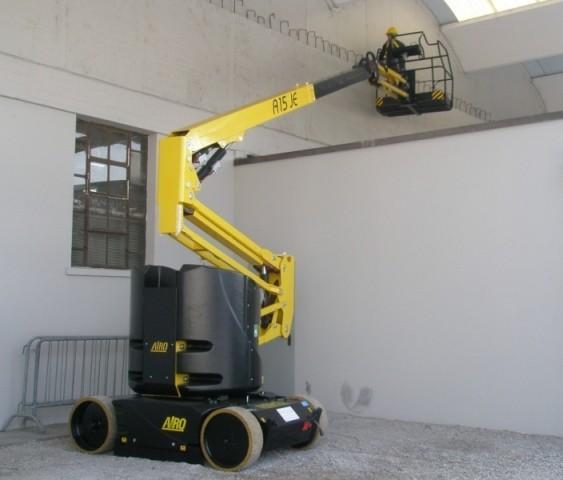

The A 15 JE articulated telescopic work platform model is manufactured by AIRO. Find and download detailed specs and data sheets f... Read more

The A 15 JE articulated telescopic work platform model is manufactured by AIRO. Find and download detailed specs and data sheets for this machine here.

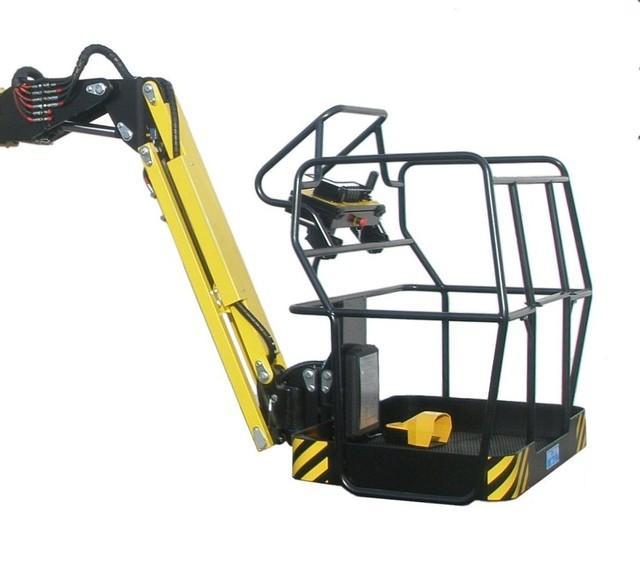

The A 15 JE is categorised in the medium sized machine segment in the articulated telescopic work platforms category. The measurements of the A 15 JE are 1m x 6.9m x 4.9m. The maximum net load of this 7490kg model is 230kg. This Articulated Telescopic Work Platform from AIRO can provide a working height of 15m. Max. Horizontal reach of this A 15 JE model from AIRO is 8,95m. This Articulated Telescopic Work Platform can lift 2 people on its 0.8m long and 1.4m wide platform.

The A 15 JE is manufactured and distributed with Articulated cage boom. It has been sold without All-wheel steering and Rigid cage boom as of 2014. Get the original AIRO A 15 JE datasheet for even more detailed specifications and machine details. Available in German, Italian, French, English and Spanish, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The newest version of this A 15 JE model is priced at between €55,000 and €71,000, with the production of this model stopped in 2014. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Based on other articulated telescopic work platforms specifications and pricing variations, the AIRO A 15 JE can be considered similar to the Haulotte HA 15 DX, Manitou 150 ATS and Haulotte HA15 IP. AIRO currently produces 18 other articulated telescopic work platforms, which range from 12m up to 23.1m - the most visited on LECTURA Specs are A12 E, A12 E, A12 JE. Want more detailed specifications? Download the latest AIRO A 15 JE specs data sheet on LECTURA Specs today!

Read less

Technical specs
Buy & Rent
Valuate & Sell
Parts & Components
Events & News
Transport
Contacts & Help

Technical specs - A 15 JE AIRO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

Working height 15 m
Platform length 0.8 m
Platform width 1.4 m
Transport length 6.9 m
Transport width 1. m
Transport height 4.9 m
Weight 7490 kg
Net load 230 kg
Max. Reach horizontal 8,95 m
Persons 2
max. climbing ability 25 %

More technical details, like: brace support length, brace support width, proportional control, travel speed , turning radius outside, power source, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement...

IPAF: 3b

Special equipment

Rigid cage boom
Articulated cage boom
All-wheel steering
