    AIRO A 12 JE Specifications & Technical Data (2011-2014)

    Rate this machine now!

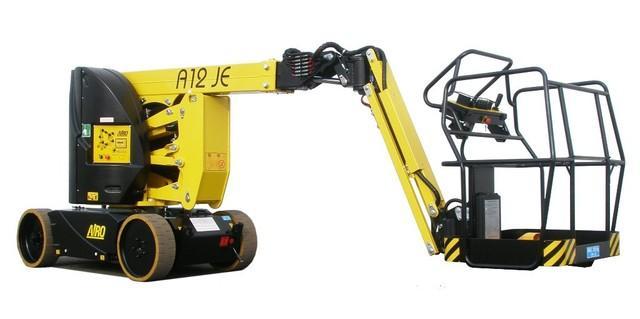

    Manufactured by AIRO, this is the A 12 JE articulated telescopic work platform. Find and download detailed specs and data sheets f... Read more

    Manufactured by AIRO, this is the A 12 JE articulated telescopic work platform. Find and download detailed specs and data sheets for this machine here.

    This AIRO articulated telescopic work platform belongs to the smallest machine segment in the articulated telescopic work platforms category. The model's dimensions are 4.6m x 1.2m x 2.6m. The maximum net load of this 7510kg model is 230kg. The working height listed in the datasheet for this AIRO A 12 JE is 12.1m. It can operate with up to 7,5m of horizontal reach. With 1.15m platform width and 0.8m platform length, the AIRO A 12 JE can lift 2 persons.

    The AIRO A 12 JE has been equipped and sold with Articulated cage boom. It has been sold without Rigid cage boom and All-wheel steering as of 2014. More detailed specifications and machine descriptions can be found in the original AIRO A 12 JE specs data sheet. Specification sheet is available for a free download in German, English, French, Italian and Spanish - providing the machine descriptions and more detailed specs about this particular model.

    The production stopped in 2014, where this A 12 JE was available at a new list price between €51,000 and €65,000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The A 12 JE AIRO can be compared to several models from other manufacturers. The closest articulated telescopic work platforms based on specification and pricing are the Haulotte HA12 CJ, Genie TKD Z 34/22 D and Haulotte HA12 IP. The most commonly viewed AIRO models of this type on LECTURA Specs are the A12 E, A12 JE and A12 E, and 18 other articulated telescopic work platforms, which currently range from 12m up to 23.1m are also available. Want more detailed specifications? Download the latest AIRO A 12 JE specs data sheet on LECTURA Specs today!

    Technical specs - A 12 JE AIRO


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Working height 12.1 m
    • Platform length 0.8 m
    • Platform width 1.15 m
    • Transport length 4.6 m
    • Transport width 1.2 m
    • Transport height 2.6 m
    • Weight 7510 kg
    • Net load 230 kg
    • Max. Reach horizontal 7,5 m
    • Persons 2
    • max. climbing ability 25 %

    More technical details, like: brace support length, brace support width, proportional control, travel speed , turning radius outside, power source, rotation, engine manuf., engine type, engine power, dimension lxwxh, displacement...

    Show more

    IPAF: 3b

    Special equipment

    • Rigid cage boom
    • Articulated cage boom
    • All-wheel steering
