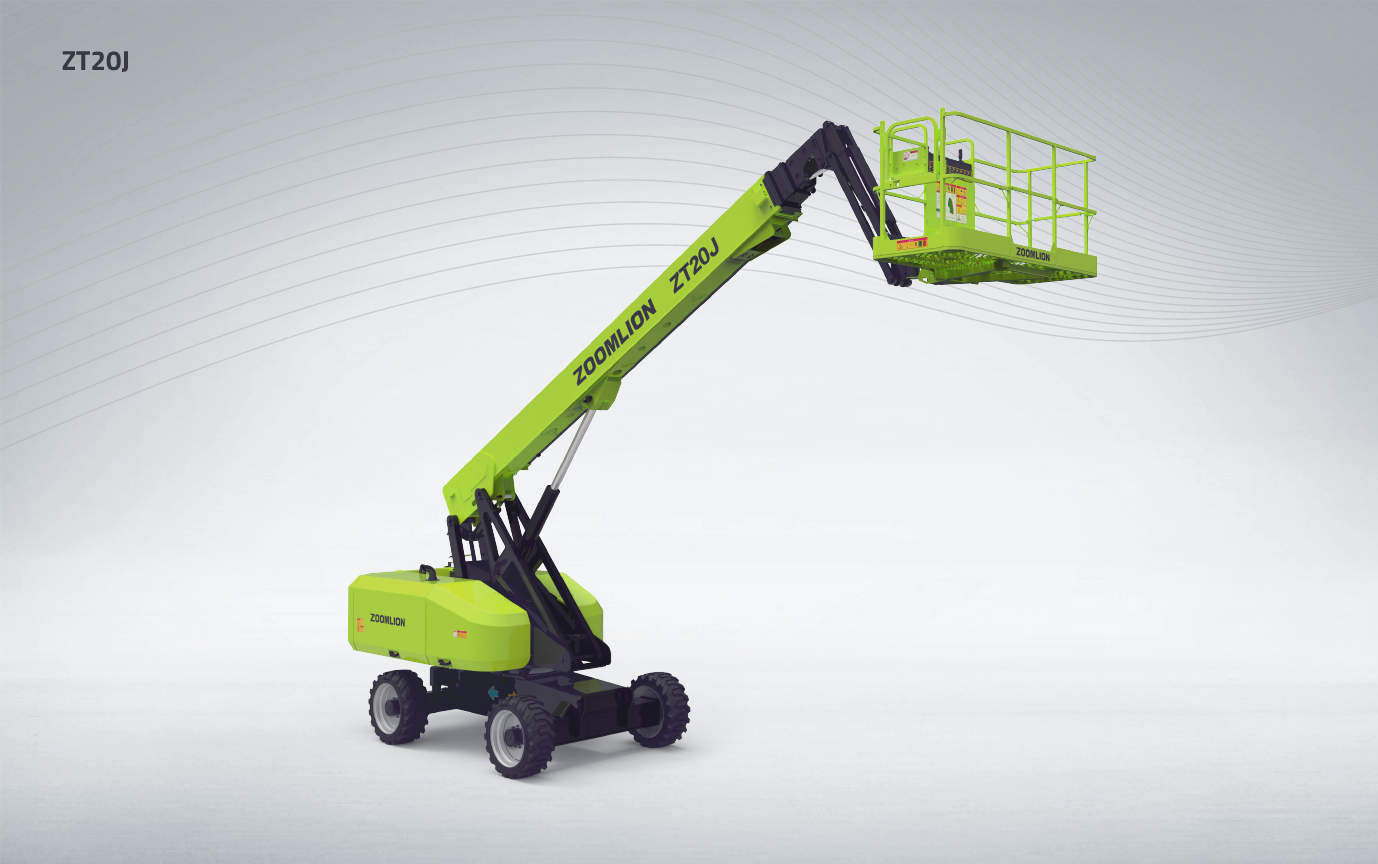

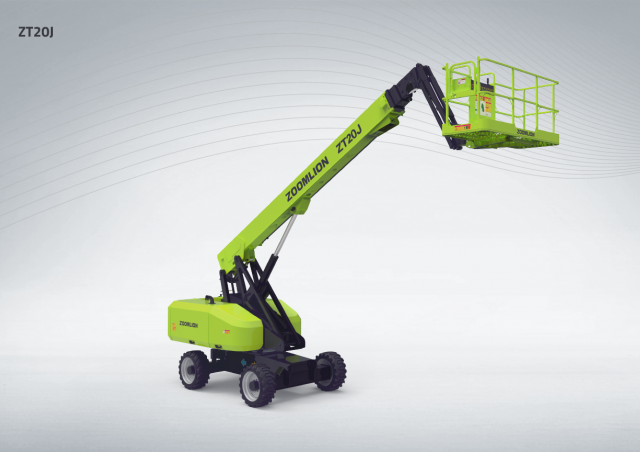

Zoomlion ZT20J
- Working height:
- 22.75 m
- Platform length:
- 2.44 m
- Platform width:
- 0.91 m
- Transport length:
- 10.36 m
Zoomlion ZT20J Wheeled Telescopic Boom Lifts (2020 - 2025) Specifications
Technical specs - ZT20J Zoomlion
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Working height
- 22.75 m
- Platform length
- 2.44 m
- Platform width
- 0.91 m
- Transport length
- 10.36 m
- Transport width
- 2.49 m
- Transport height
- 2.78 m
- Turning radius outside
- 5.4 m
- Weight
- 12200 kg
- Max. Reach horizontal
- 16.8 m
- Net load
- 300 kg
- Travel speed
- 6 km/h
- max. climbing ability
- 45 %
- Power source
- D
- Rotation
- 360 °
- Model series
- J
- Engine manuf.
- Perkins
- Engine type
- 404D-22T
More technical details, like: brace support length, brace support width, persons, proportional control, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
IPAF: 3b
Special equipment
- Rigid cage boom
-
No
- Articulated cage boom
-
No
- All-wheel steering
-
No
Download datasheets (PDF)
